AEM 30-2056 AEM 12 Position Universal Trim Pot

Multi-Purpose Switch

(0) Reviews: Write first review
30-2056
Availability:
Pricing: $35.15
Qty:

Description

Mounting: 3/8" Hole - Degree Rotation: 330; Universal 12 Position Trim Pot, Includes Trim Pot and Decals.

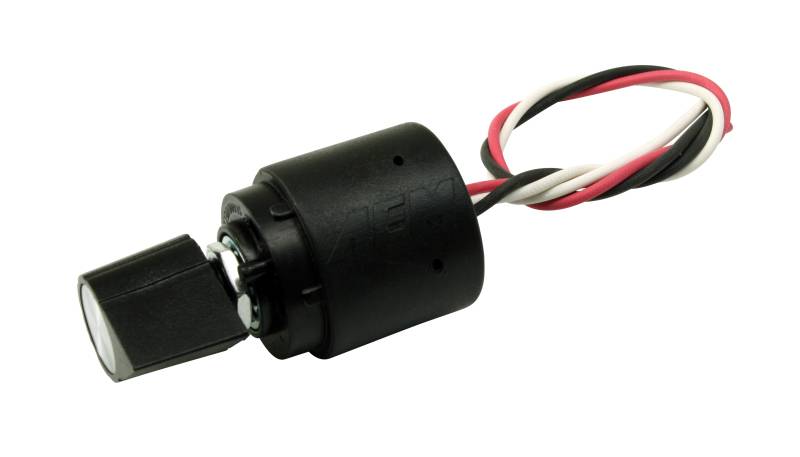

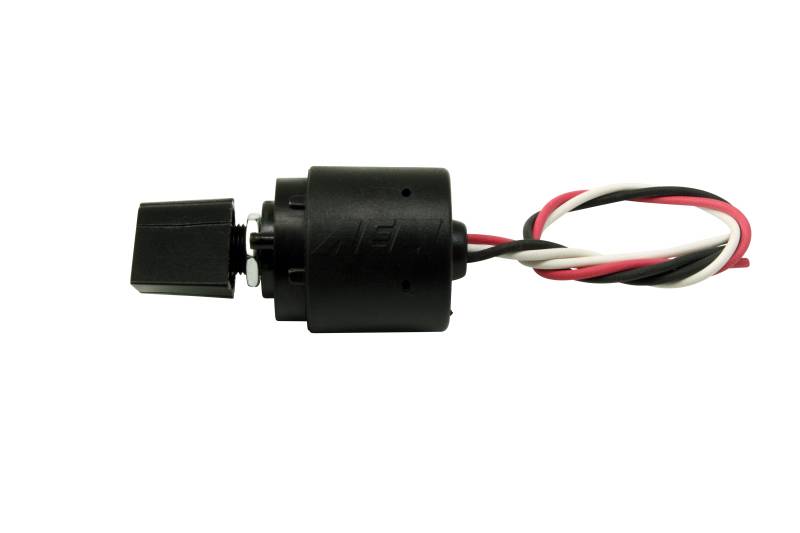

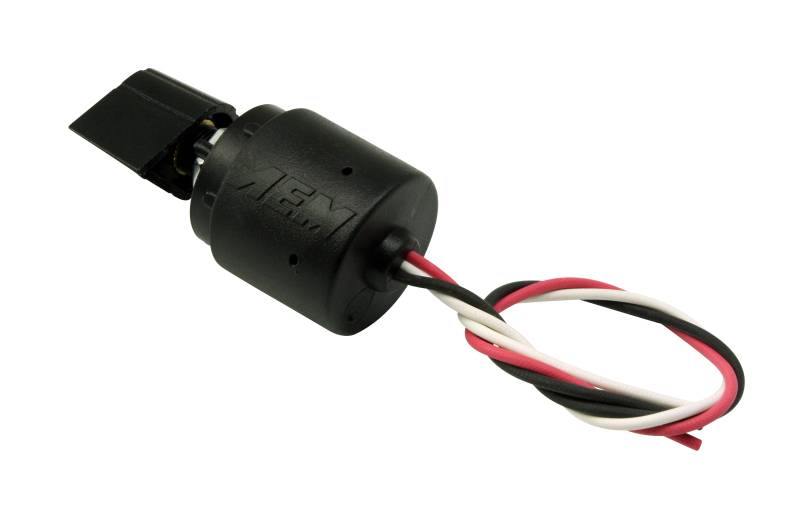

AEM 12 Position Trim Pot

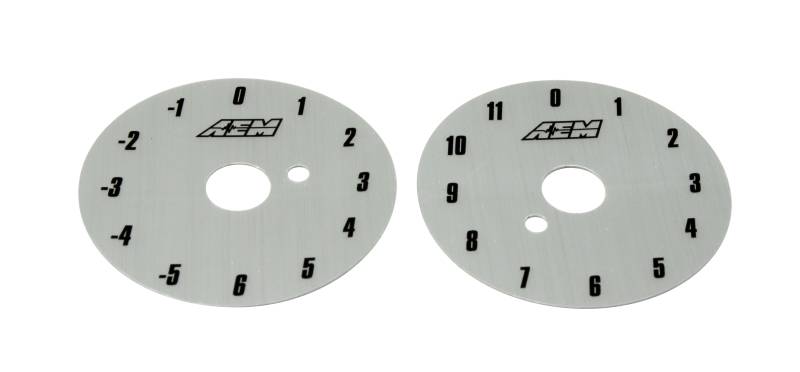

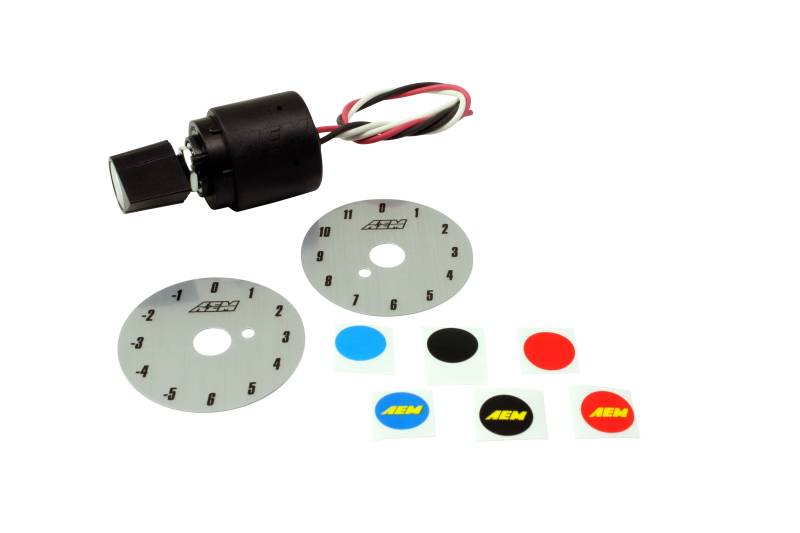

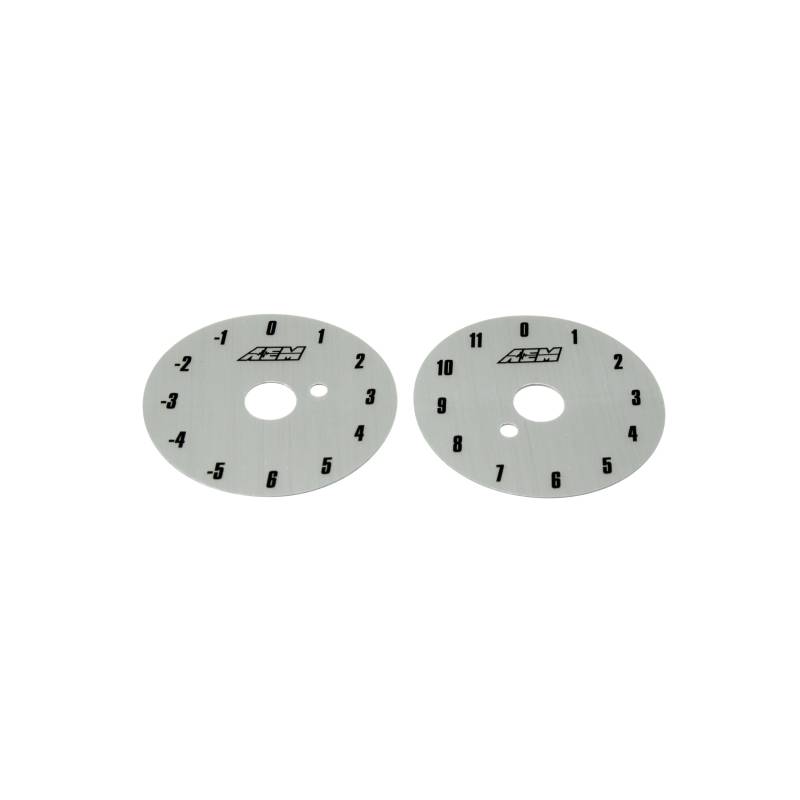

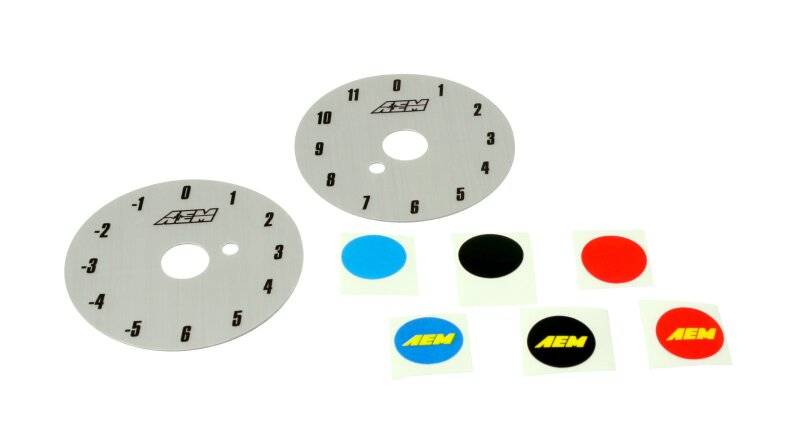

Adjusts a number of trims, including ignition timing, fuel, boost, etc.; Includes a weatherproof-over-molded flying lead that has 12-inch insulated, color-coded wires, two brush silver Trim Position decals, and black AEM logo adjustment knob; The Universal 12 Position Trim Pot is for use on virtually any Engine Management System, such as the AEM EMS. Use the Trim Pot to adjust a number of trims, including ignition timing, fuel, boost, etc. The Universal 12 Position Trim Pot includes: 12 Position Trim Pot with Flying Lead, 2 Brushed Silver Trim Position Decals with ranges from -5 to +6 and 0 to +11, Blue/Red/Black AEM Logo Knob Decals & Blue/Red/Black Colored Knob Decals. Click here for more AEM sensors and connectors; Trim potentiometer can be used with virtually any engine management system; Universal 12 Position Trim Pot

Features and Benefits: 12 Position Trim Pot Performance Specifications; Cycles Minimum: 10,000; Degree Rotation: 330; Jam Nut: 1/2" Hex; Knob Set Screw: 1/16" Allen; Mounting: 3/8" Hole; Over mold weatherproof body with 12" leads, 1 Red (Supply Voltage 5Vdc +/- .5), 1 Black (Ground), 1 White (Output); Positions: 12; Supply Current: 5 Vdc; Total Resistance: 14.3KO

Videos

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 0.2 lbs.
  • W3.3000” x H2.4000” x L4.7000”
