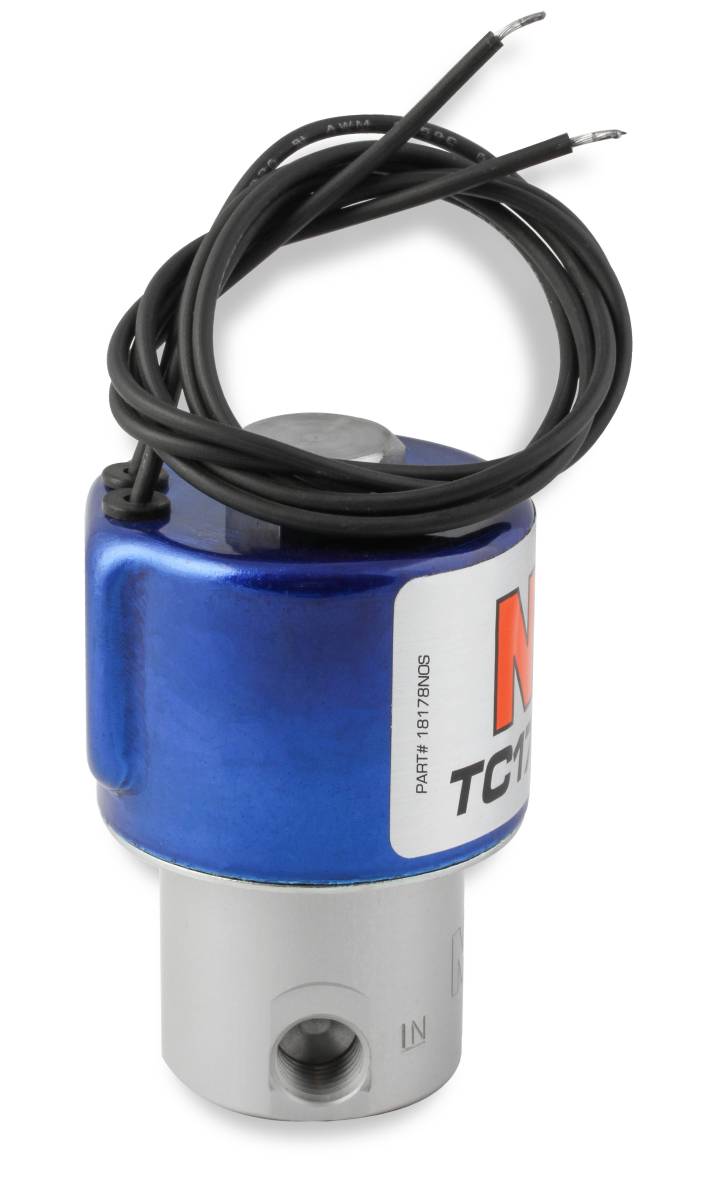

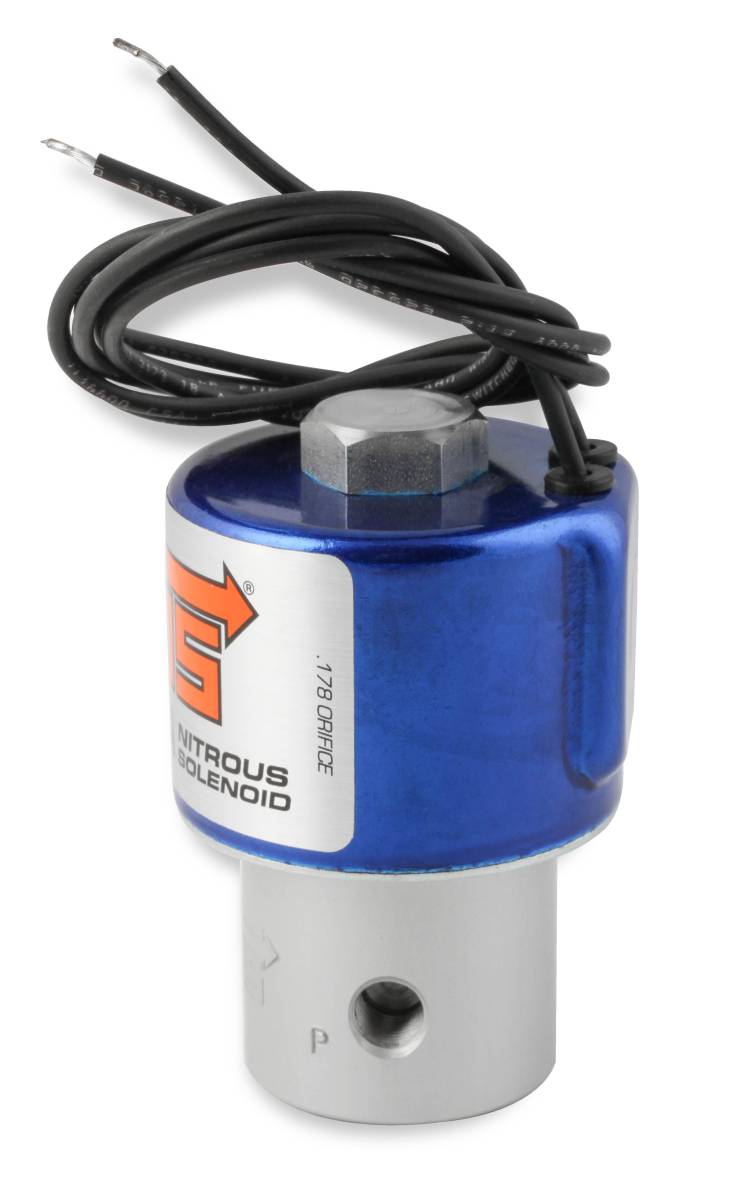

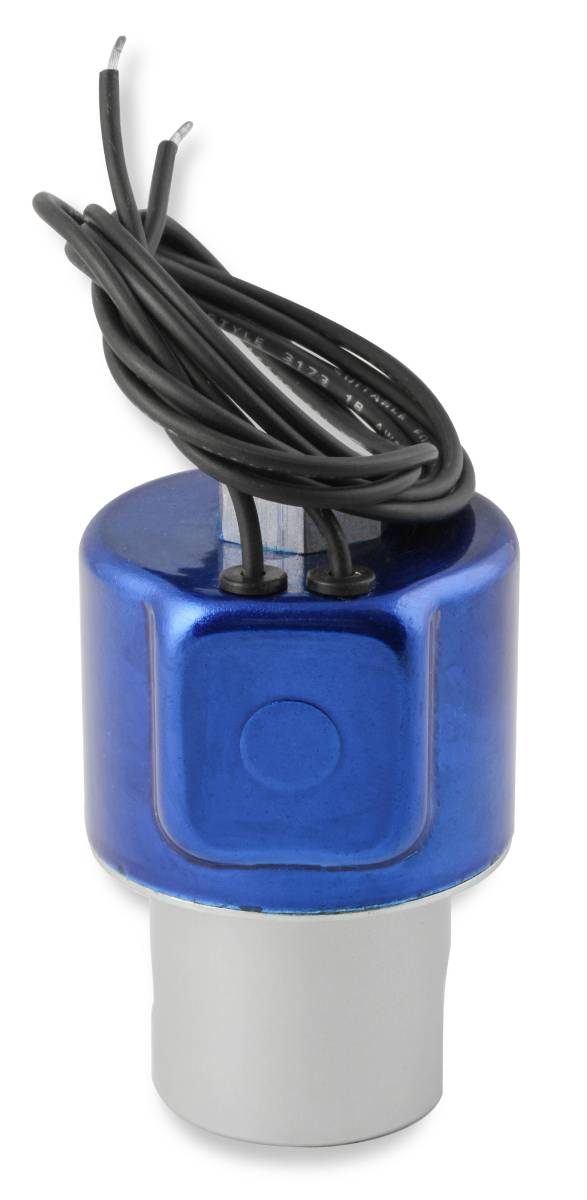

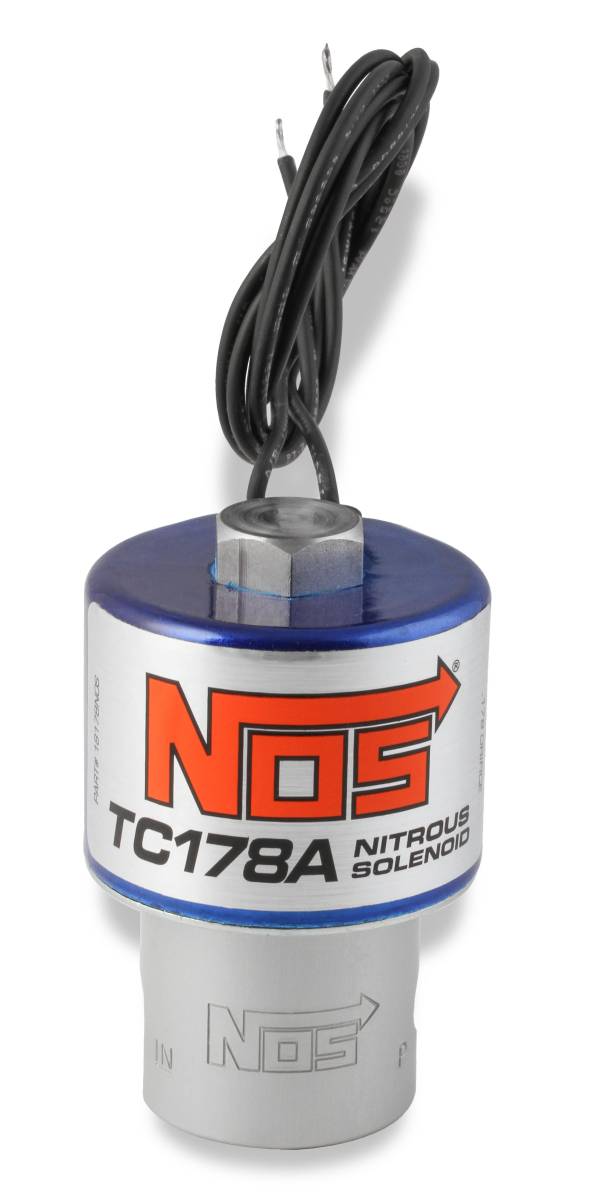

BHHV 18178NOS NOS Nitrous Solenoid - Blue
Nitrous Oxide Solenoid
Description
TC178 High flow nitrous solenoid with a 0.178" outlet orifice and aluminum base.
Current Draw is 20 Amps at 12 volts DC.; NOS TC178 Nitrous Solenoid was developed for one purpose; deliver the most nitrous volume possible for a single solenoid. With a 0.178" outlet orifice, the TC178 has the ability to flow in excess of 900 horsepower of nitrous from a single solenoid. The TC178 base is also constructed of 6061 Aluminum and then clear anodized. This reduces the weight by 1/4 of a pound over the NOS Super BigShot Trash Can Solenoid, and still retains the mounting location on the base. If maximum power from a single stage of nitrous is what you need, get the new NOS TC17; This Solenoid can be used with a progressive controller
Features and Benefits: Inlet Port Size - 1/4" NPT (Side); Light Weight Aluminum - 1.66 lbs.; Material - 6061 Aluminum; Orifice - 0.178"; Outlet Port Size - 1/8" NPT (Bottom); Plunger - PTFE; Purge Port Size - 1/8" NPT (Side); Saves 1/4 lb. over similar steel solenoids; Supports in excess of 900 horsepower

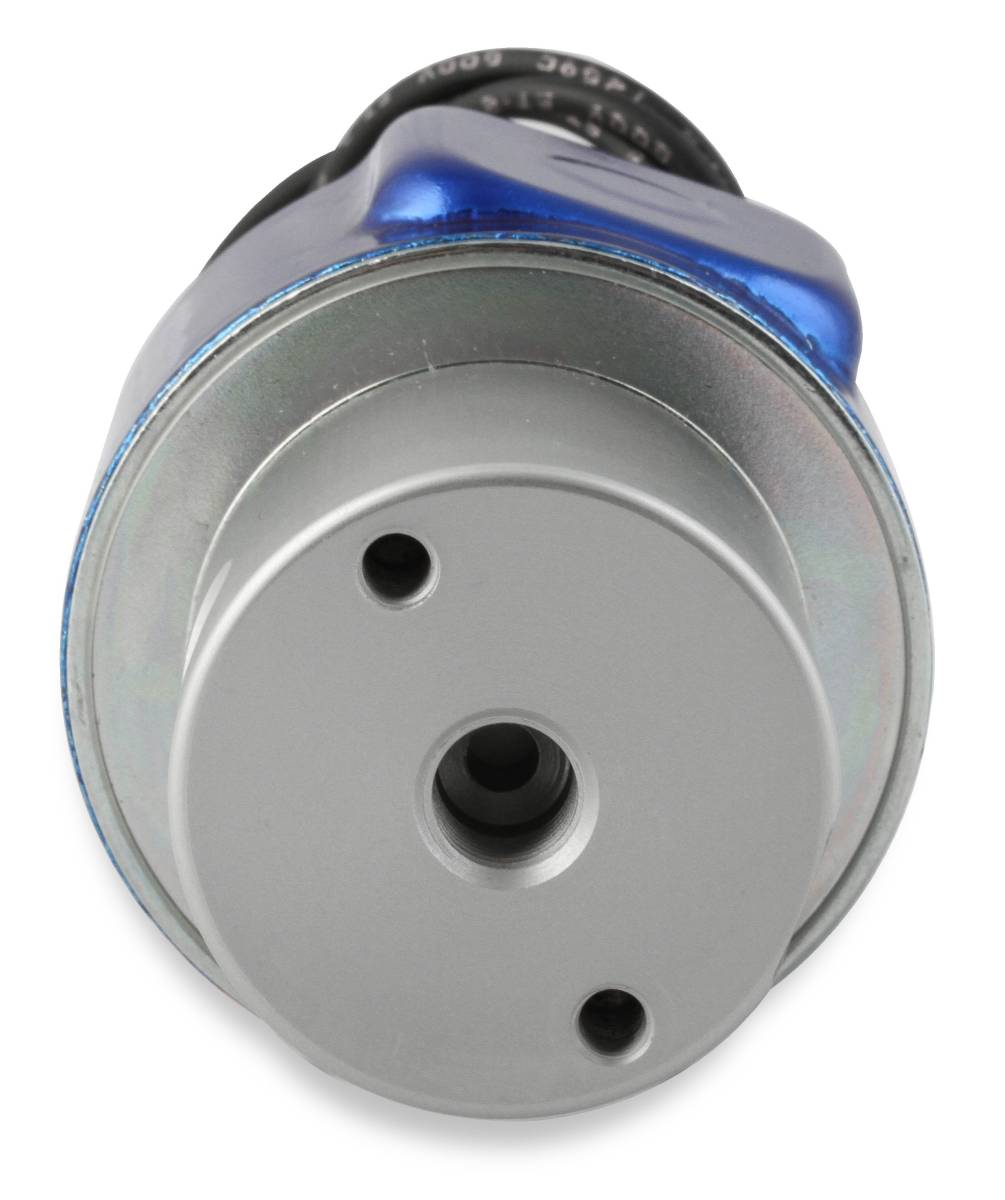

The TC178 offers a 1/8" NPT bottom exit and a 1/8" NPT purge port. _x000D_ The side purge port must be plugged if not used.
NOSNITROUS
Nitrous;Nitrous Oxide;Fuel; Solenoid;Nitrous;Trash Can;tc178
Videos
Details
- 18178NOS
- 18178NOS
- 090127021798
- NOS
- Available to Order
- New
Categories
Shipping Information
- Item Requires Shipping
- 1.5 lbs.
- Free Shipping
- Available To Order
