BCCX 6564 MSD Digital 6M-3L Marine Ignition

Marine certified, digital capacitive discharge ignition with built-in rev limiter and start retard.

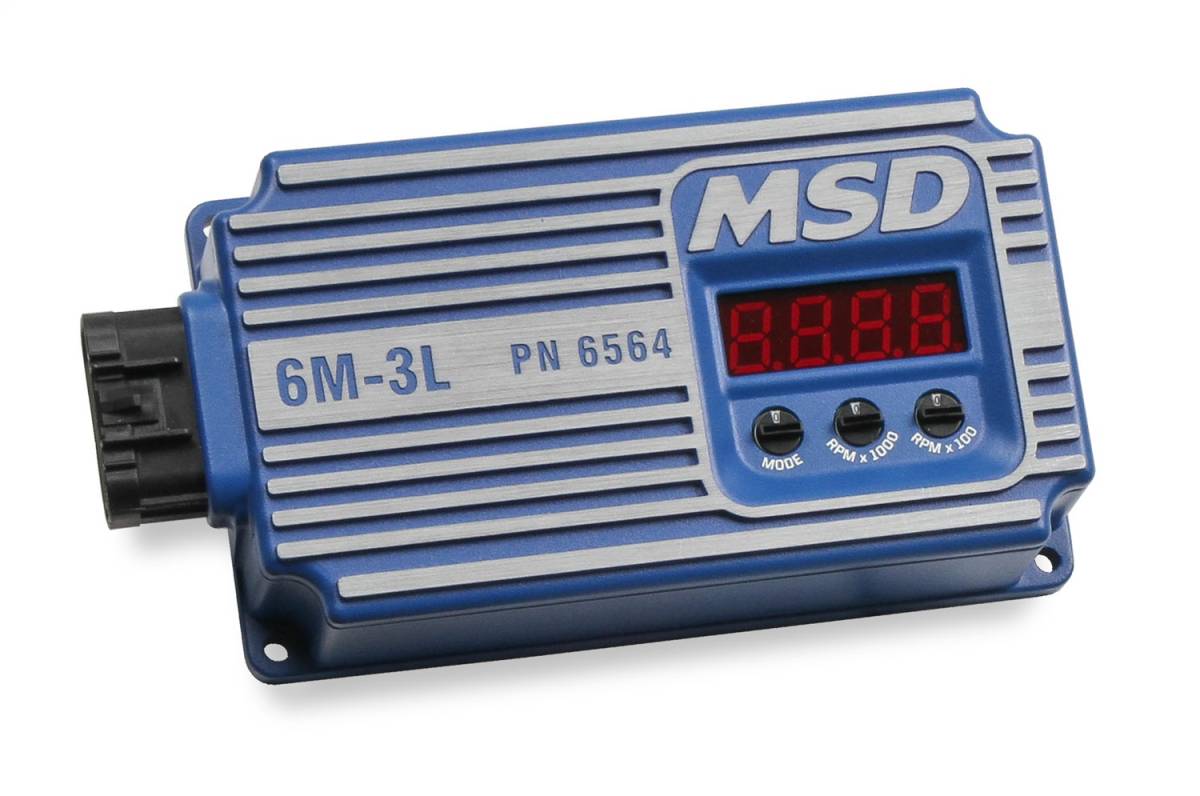

The 6M-3L is a capacitive discharge ignition that multi-sparks from idle to 3,000 RPM providing a clean idle and quick throttle response. Above 3,000, capacitive discharge sparks will run clean through 12,000 RPM . Boasting more features and higher spark energy than its predecessor, the 6M-3L is the performance upgrade your boat needs!; Three rotary dials and an LED display simplfy setting the cylinder select, start retard and rev limiter. Plug-in rev limiter chips and hard to read dials are a thing of the past. For diagnostic purposes, the LED display can also be set to a live tach mode on V8's and even display battery voltage with the turn of a knob.; We've raised the bar and added an all-new UL listed marine ignition box to our lineup. The 6M-3L is a fully sealed unit with a single wiring connector makeing installation neat and easy.

Features and Benefits: 0.8 Amps per 1,000 RPM; 535V w/ Blaster Coil / 550V w/ HVC Coil PN 8250; Built-in Start Retard adjustable in 0⁰, 10⁰ or 20⁰ increments for quick, easy starts and extend starter life; Can be triggered by magnetic pickup, amplifier, and points inputs; Easy setup of features with three rotary dials on the face of the unit; Full delivery of spark energy and easy starting down to 6 volts battery supply; Fully potted housing to withstand demanding marine conditions; Highly efficient, low current draw for extended battery life; Large, easy to read LED display; LED display shows rev limit, highest RMP turned, cylinder select, start retard, battery voltage and can be set to tach mode; MSD’s smoothest rev limiter yet, protecting parts and saving your engine; Records highest RPM the engine turned for last 20 minutes of run time; Reverse polarity and overheat protection provide ultimate reliability; Sealed connector for clean wiring and trouble-free operation; Shift interrupt feature eases shifting; Works on 4, 6 and 8 cylinder engines

UL Certified
