ER Charge Pipe for BMW F10/F12/F13 N55 3.0T Type III Hard Anodized Black

BM-ICP009BA
Pricing: $269.96

Qty:
Free Shipping

Description

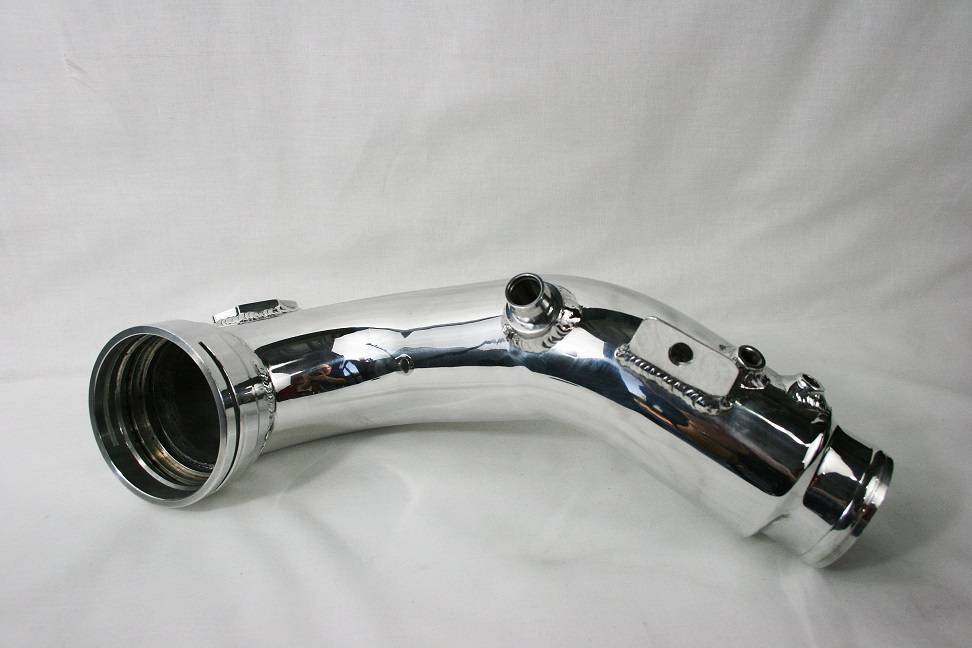

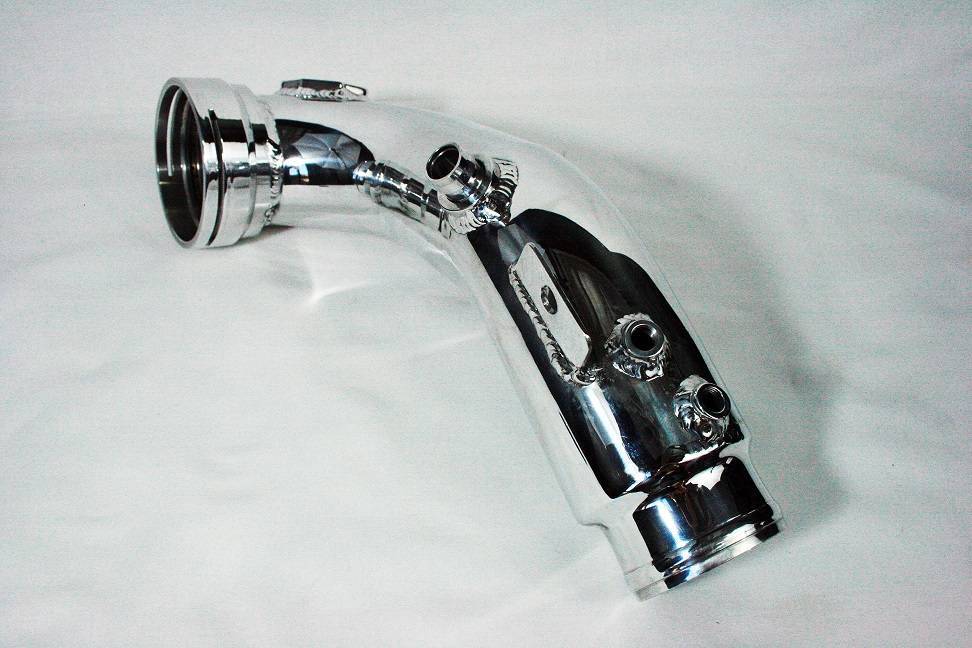

BMW Performance Parts: ER Charge Pipe for BMW F10/F12/F13 N55 3.0T (BM-ICP009)



Product Features & Benefits

  • Increase throttle response and decreases turbo lag.
  • Lightweight High Grade 6061 Aluminum Piping.
  • Replaces the factory soft plastic charge pipe that is prone to breaking under high boost.
  • Throttle body matched 3" piping.
  • Retains factory style o-ring throttle body lock flange. Precision CNC machined throttle body flange ensures leak free connection to throttle body. Quick and easy connection and disconnection to throttle body.  Ideal connection compared to the silicone hose and hose clamp connection found in all other aftermarket diverter valve upgrade pipes available in the marketplace.

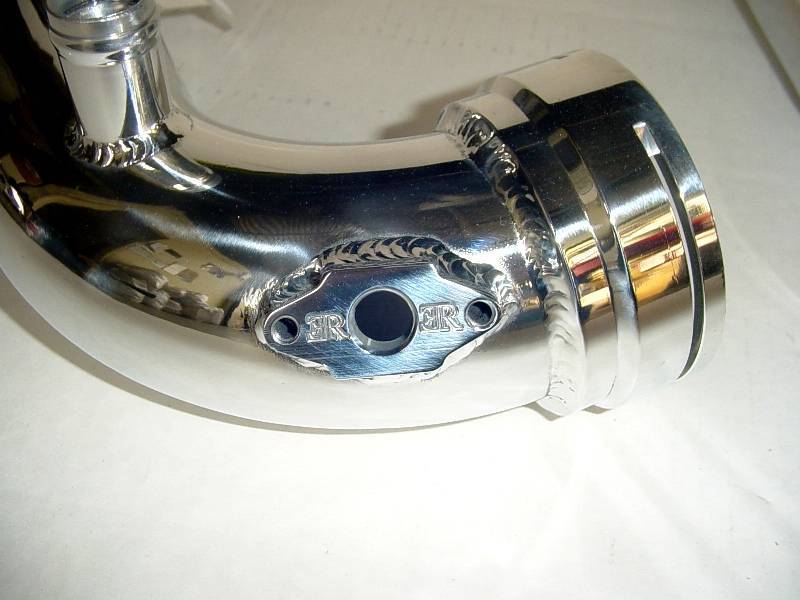

  • Precision CNC machined MAP sensor flange ensures leak free connection.
  • Charge Pipe features beaded ends and T-bolt clamps to prevent intercooler piping from coming off from boost.
  • Silicone Hump Hose included.
  • Optional Type III Hard Black Anodizing (for stealth and OEM look). Hard anodizing helps improve durability of intercooler piping. Resists bent or dented piping.
  • Compatible with the factory electronic diverter valve.
  • Includes all hardware for complete installation.
  • Limited Lifetime Warranty.

Additional Details

Turned up the boost with a tune and find your factory charge pipe break apart? Fear not!  The solution is here! Replace it with a higher flowing, stronger aluminum charge pipe! Made 100% of 6061 high grade aluminum, this will never happen again (backed by ER's Limited Lifetime Warranty)!

Often ignored, charged intake airflow characteristics greatly affect throttle response, turbo lag and ultimately maximum power potential. Smooth bends and minimal obstructions are ideal. ER uses 6061 aluminum (lightweight) mandrel bent piping to ensure smooth transitions. The upper pipe features 3" piping to match up to the factory throttle body (factory pipe is 2.5"), ensuring maximum flow without obstruction.

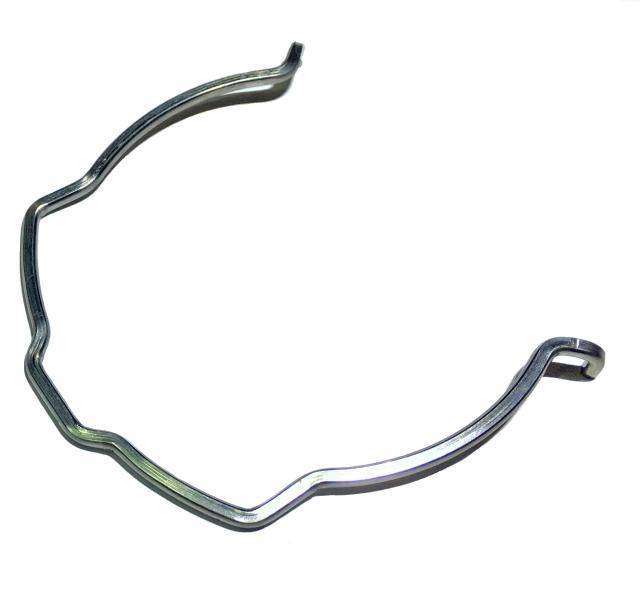

ER was the first manufacturer to duplicate the factory throttle body flange with their N54 charge pipe. They bring the same thing to the N55 charge pipe.  During their research and development, the connection at the throttle body was looked over very carefully.  The factory charge pipe is connected to the throttle body using an o-ring inside the throttle body flange which is locked in place by a c-clip, which works very well.  It also makes removal/installation quick and easy.  ER's testing had shown it could hold quite a bit of boost. During their testing, they had pressure tested this connection up to 25 PSI.  The reason why ER stopped at 25 PSI was because at 25 PSI, one of the intake pipes on the turbo blew off and they could not test any higher. Hoewver, ER was confident that it would easily hold over 25 PSI as the throttle body flange showed no signs of failing. Also, keep in mind, this type of connection is used throughout the engine, in many crutial areas like the coolant radiator system as well as the clutch system. If BMW did not believe in the durability of this type of connection, they would not use it in such important areas.

CAUTION: This product is intended for OFF ROAD USE ONLY. Not legal for use on pollution controlled vechiles upon public road/highways. THIS PRODUCT IS FOR SALE FOR ALL 49 STATES EXCLUDING CALIFORNIA.

THIS ITEM IS NOT FOR SALE, INSTALLATION, OR USE ON LICENSED VEHILES IN THE STATE OF CALIFORNIA.

10% OFF Installation

Save 10% off installation if you're a local to Las Vegas, NV by visiting our local shop, Eurotek Tuning. Call 888-967-5634 to make an appointment today.

Details

Shipping Information

  • Item Requires Shipping
  • 3.0 lbs.
  • Free Shipping
