TTE300 Turbocharger for AUDI 1.8T 20V S3 / TT

VW/Audi Performance Parts: The Turbo Engineers Turbocharger for Audi 1.8T 20V S3 / TT (TTE300)

Product Features & Benefits

• Genuine BorgWarner Housings
• Genuine BorgWarner 2280 Highly Efficient ET Compressor Geometry 6+6 (Inducer 45.10mm / Exducer 59.5mm)

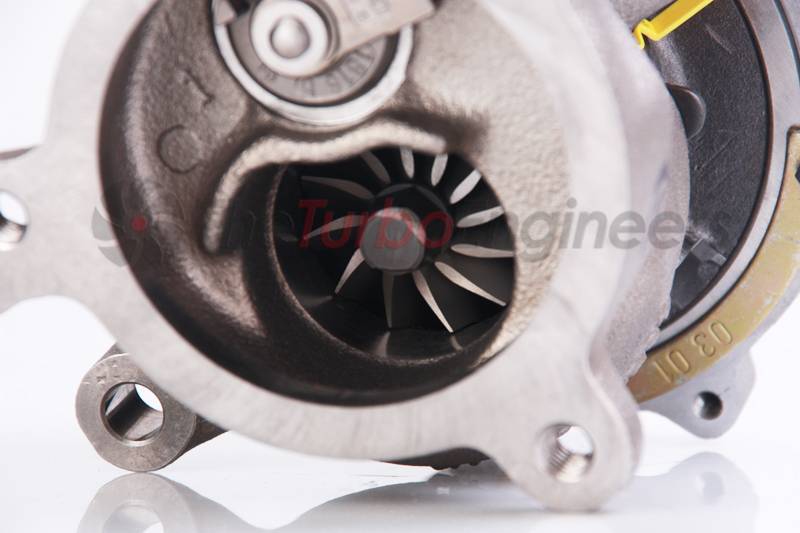

• Genuine BorgWarner K04 Trim 8 Turbine, Special Curved Clipped Blades (Inducer 50mm / Exducer 44.5mm)

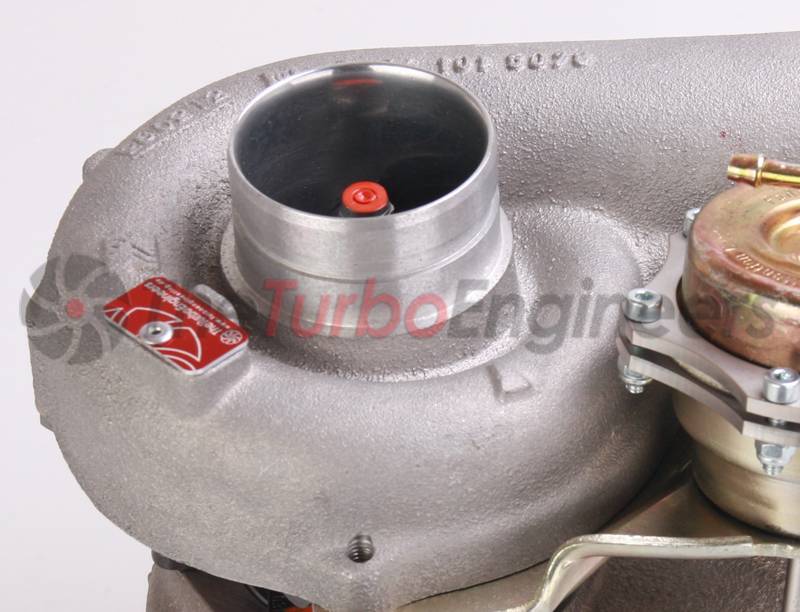

• CNC Optimized Hand Finished Intake Entry & Boost Discharge
• Optimized Compressor Cover Machining Clearances
• Genuine BorgWarner Uprated & Reinforced Actuator
• Genuine BorgWarner Reinforced Bearing system
• Dynamically Balanced (Supplied with test document)
• Fitment As Original. Plug & Play
• 300+PS Capable (proven at upto 335PS with partners)
• Designed, Machined & Built by TTE in Germany

To produce a TTE300 K04 upgrade turbocharger TTE uses a much larger BorgWarner 2280 compressor wheel, chosen because it is highly efficient and light in weight at 36grams for fast response. This compressor also features BorgWarner Extended tip technology giving a compressor map that's very wide, creating extremely high flow for comparative size. Then CNC Re-Profile the compressor cover to optimize a tight tolerance and finish to ensure maximum compressor efficiency is given.

Equilibrium

Precisely balanced turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using TTE's in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.

Additional Details

Fitment:

• Audi TT 1.8T 20V
• Audi S3 1.8T 20V

Recommendations

• Air Intake System
• Downpipe
• Intercooler
