HJQF MS100195 APR 980cc MPI Injector Kit - Fits 2017-2026 Audi RS3, TT RS Quattro

Fits Audi RS3 17-24, TT RS Quattro 18-22

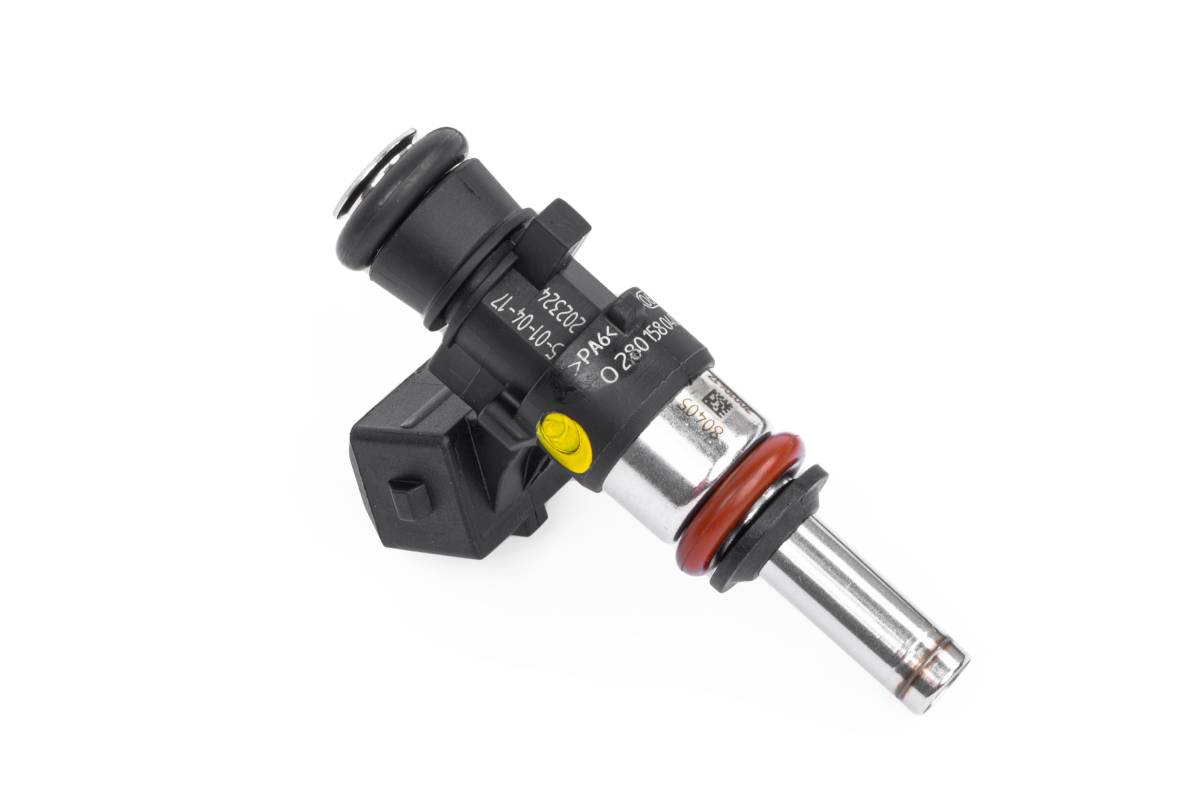

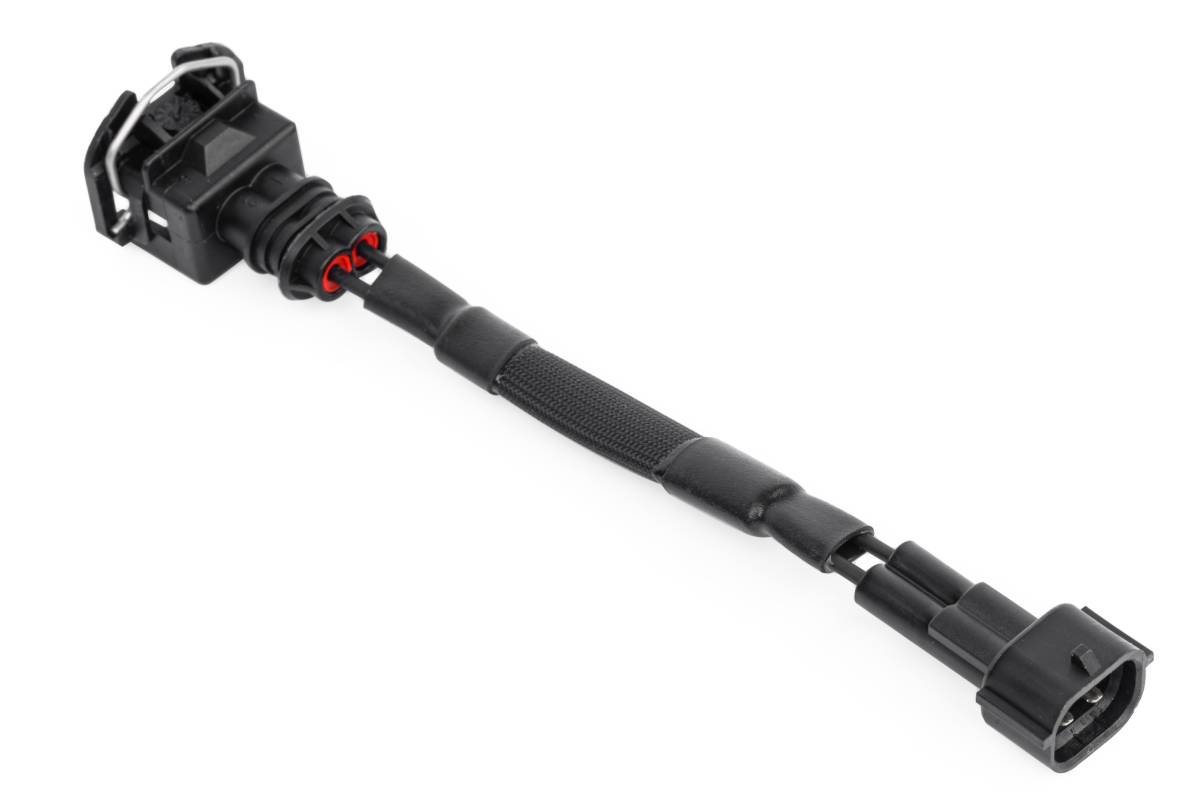

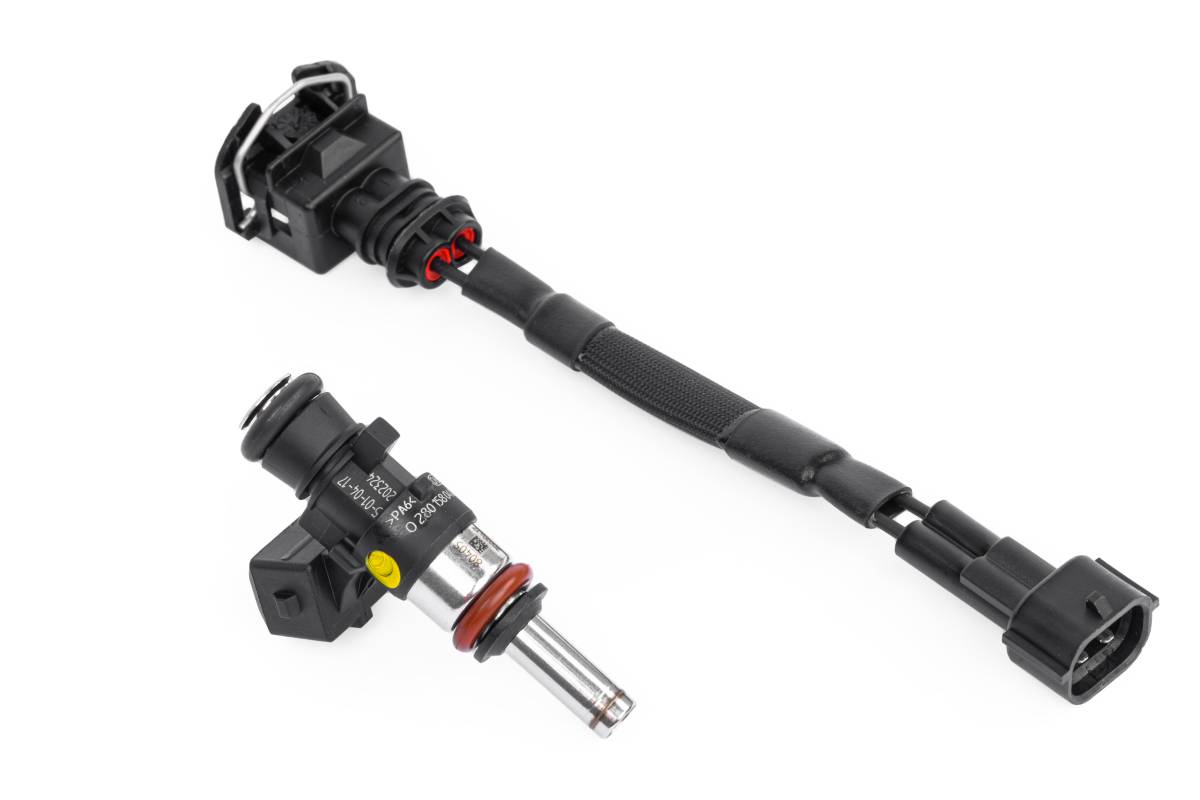

High horsepower configurations often require more fuel, especially on applications where ethanol is used. The APR 980cc MPI Injector Upgrade Kit includes an upgraded high-flow multiport injection (MPI) injector and harness necessary to satisfy high horsepower builds. The kit uses a compact and extended tip Bosch EV 14 injector that supports Ethanol and Methanol and flows 980cc/min at 3 bar. A high quality 2 wire harness with braided wire sheathing converts the Bosch Jetronic connector to the necessary factory style connector making this upgrade plug-and-play with an associated ECU upgrade.

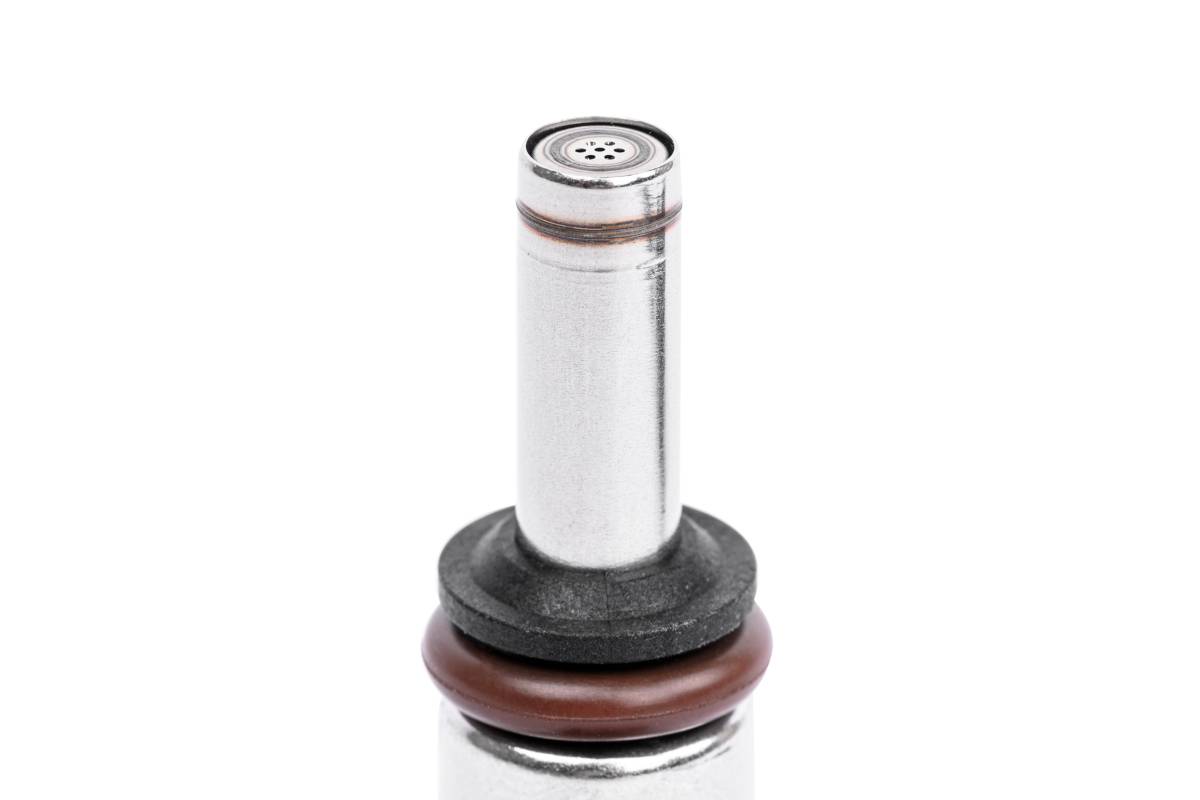

Features and Benefits: 12 ohm coil resistance; 150 mm long harness with braided wire sheathing; 24mm extended tip nozzle; 30° single cone spray angle with 0° bent angle and 0° gamma angle; 33.6mm compact body; 980cc/min, 670g/min, or 89lb/hr @ 3 bar (n-heptane); APR Bosch Jetronic to OEM 2 pin harness; Bosch EV 14 CKxT MPI injector (0280 158 040); E85 and M100 compatible; ECU software required for use; Plug-and-play on 2.5 EA855 EVO & 2.0T EA888 Gen 3, where supported; Supports up to 8 bar of use in motorsport configurations; Top-feed injector

On the 2.5 TFSI EA855 EVO the injector is plug-and-play with software. On the EA888 Gen 3, the injector is plug-and-play, with software, on models that include factory MPI injection. On models without factory MPI injection, more components are required. If used for methanol injection, the valves must be flushed with standard gasoline after use.
