HJQF MS100127 APR CPS Radiator - B8/B8.5 3.0T/4.0T - Fits select 2010-2018 Audi models

Fits 2012-2018 Audi A6/A7 Quattro - 2013-2017 Audi Q5 - 2010-2016 Audi S4/S5 - 2013-2018 Audi S6/S7 - 2014-2017 Audi SQ5

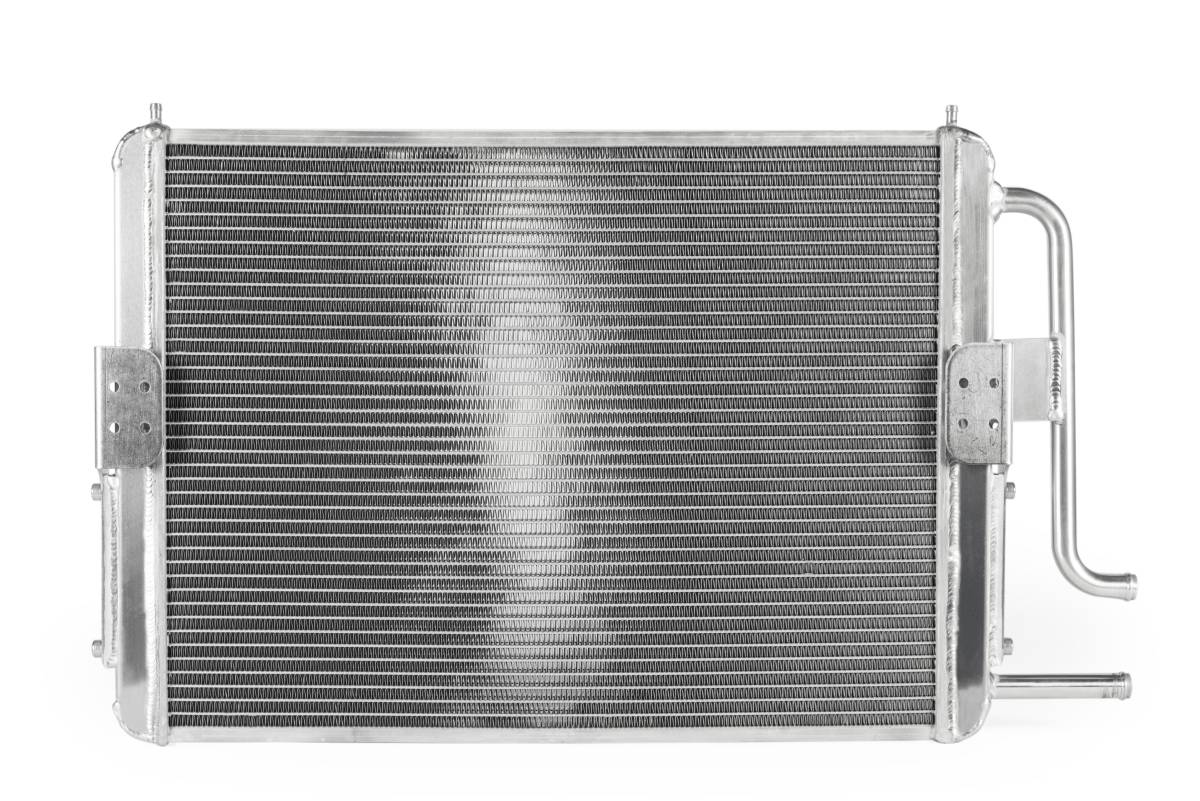

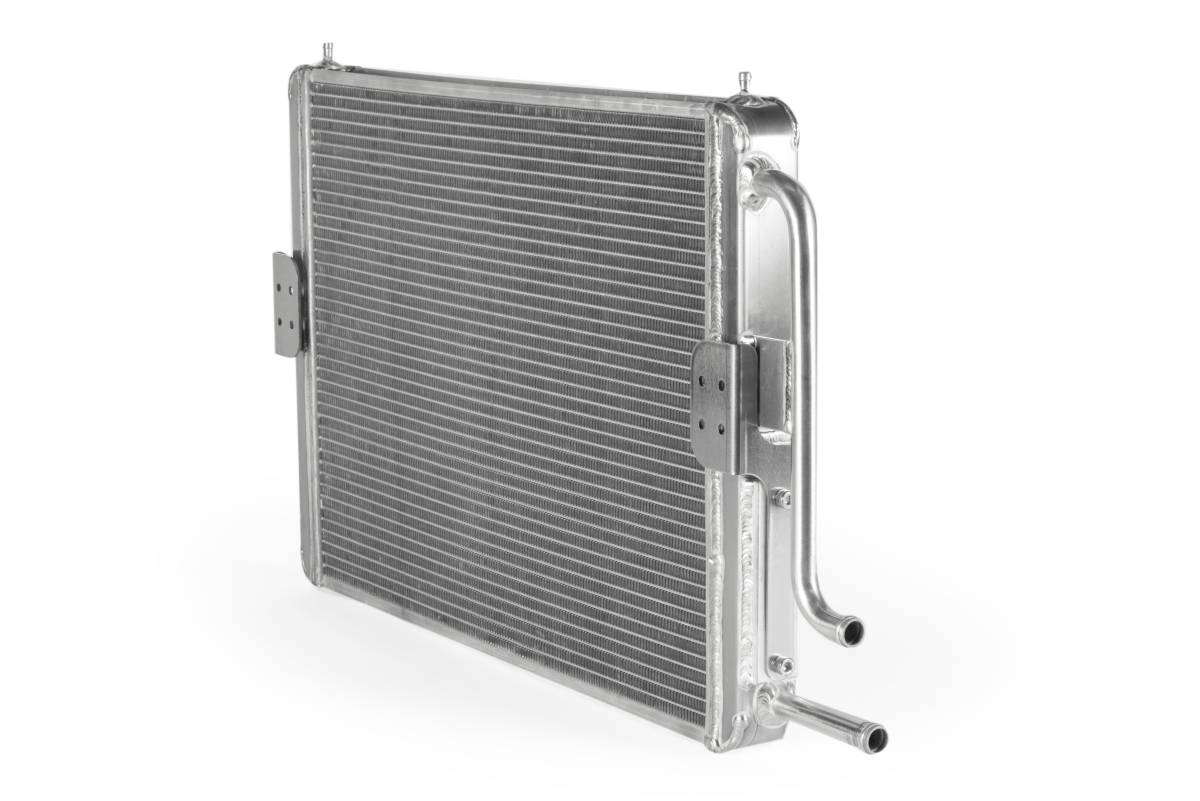

The APR Coolant Performance System (CPS) is a massive front-mounted cooler upgrade that dramatically reduces intake air temperature (IAT), minimizes heat soak, and provides increased performance! It is 140% larger than the stock B8 unit and features a self-bleeding cooling circuit to ensure it is always operating at peak performance. The system is easy to maintain and fully integrated into the factory cooling circuit. This upgrade is highly recommended at every stage!

Features and Benefits: 22" x 17.4" x 1.7" - 382.8"² & 130"³ - APR; 29" x 05.5" x 2.1" - 159.5"² & 054"³ - OEM; Air-bubbles trapped within the system kills performance!; All the performance without the headaches. Each system is fully pressure tested after assembly.; Dramatically lowers intake air temp (IAT); Easy to install and maintain; Highly effective dual-pass core design; Increases and retains HP while minimizing power-robbing heat soak!; Massive frontal surface area (core) and volume (radiator); Retains factory safety and control; Self-bleeding and self-optimizing system; The ECU retains full control over the system, protecting against pump failure and coolant leaks.; The self-bleeding system constantly removes air from the system, without any manual intervention!; Tightly packed external louvered fins rapidly dissipate heat as coolant flows through internal cooling paths.

Please note, the B8 S4/S5 and some C7 A6/A7 require the CPS Fit Kit (MS100136). The fit kit is required when the cooler has an inlet and outlet on opposite sides. Furthermore, some B8 S4/S5 vehicles with Audi Drive Select (ADS) coolers will require custom relocation of the cooler. This cooler is a U shaped cooling fin system visible through the top of the grille.
