034Motorsport Turbo Inlet Pipe for EA839 3.0T B9/B9.5 Audi S4/S5/SQ5

PERFORMANCE PARTS FOR AUDI: 034Motorsport Turbo Inlet Pipe for EA839 3.0T B9/B9.5 Audi S4/S5/SQ5

Product Details:

• Cast from A356 Aluminum
• Compressor Inlet Flange Adapter Machined for Smooth Airflow Into Compressor Housing
• CNC Machined 6061-T6 Aluminum Turbo Inlet Adapter to Match Turbo Inlet for Maximum Airflow - Stock Turbo - 52.0mm

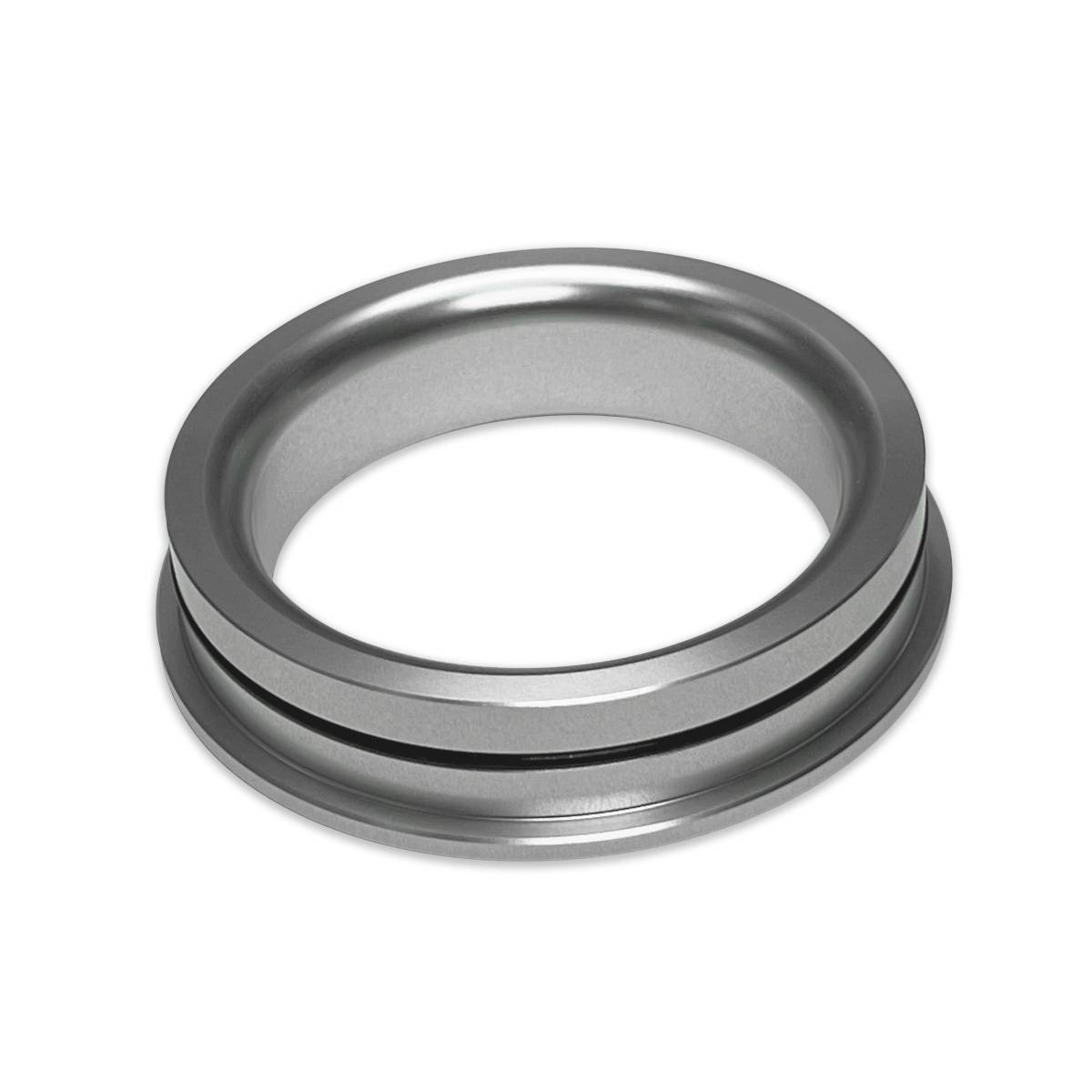

  • Optional Adapter ring available separately: Pure750 Turbo - 63.0mm (034-108-Z094)
• Increased Flow Over Factory Turbo Inlet
• CNC Machined Edge Retains Intake Coupler Securely
• CNC Machined to Retain OE PCV Hose
• Proven Power/Torque, and Airflow Gains
  • Stock Turbo Inlet: 396 CFM @ 28"H²O
    • 034 Turbo Inlet Pipe w/ Stock Turbo Adapter: 406 CFM @ 28"H²O
    • 034 Turbo Inlet Pipe w/ Pure 750 Turbo Adapter: 490 CFM @ 28"H²O
• Slotted Lower Turbo Inlet Bolt for Easy Installation
• Direct Bolt-on Installation.

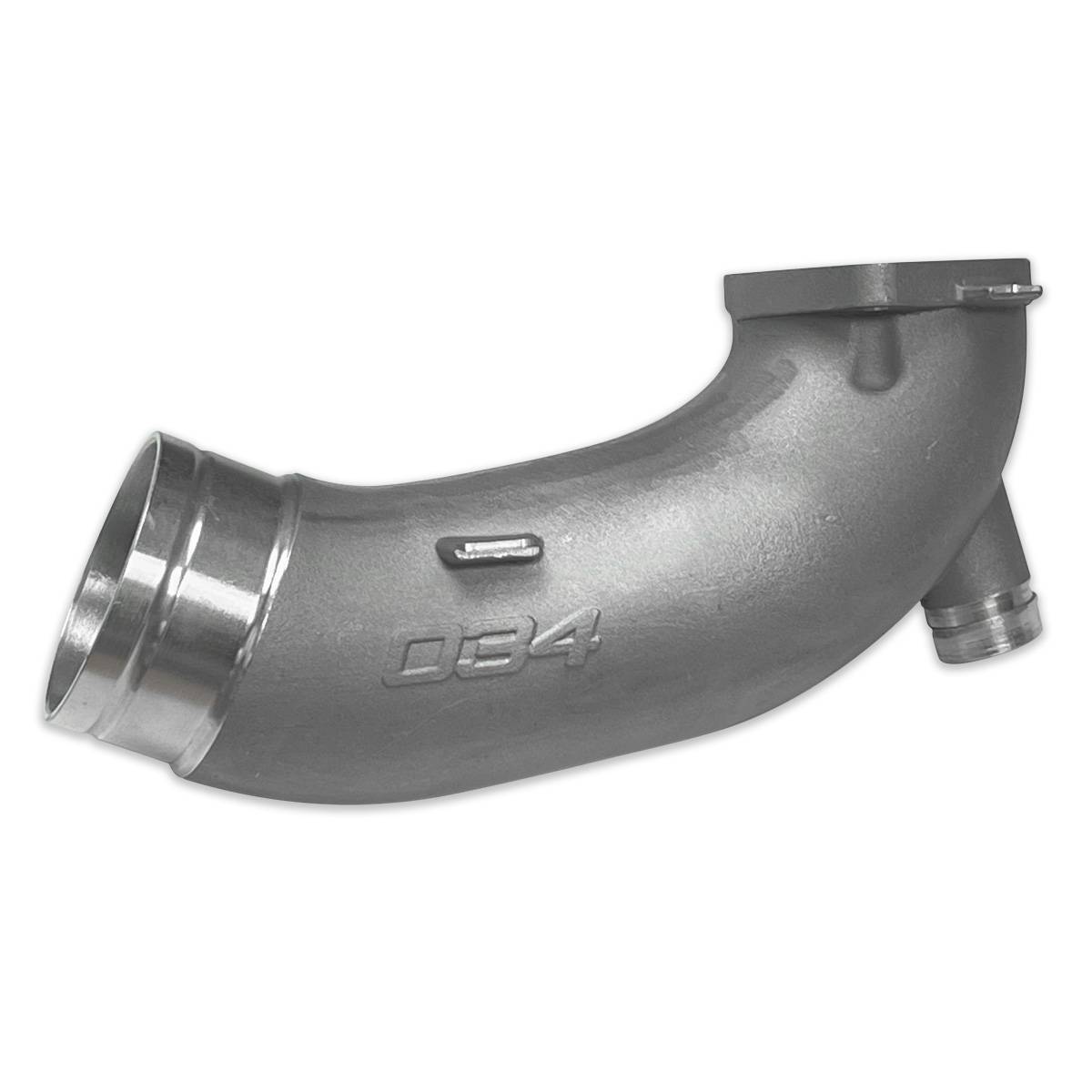

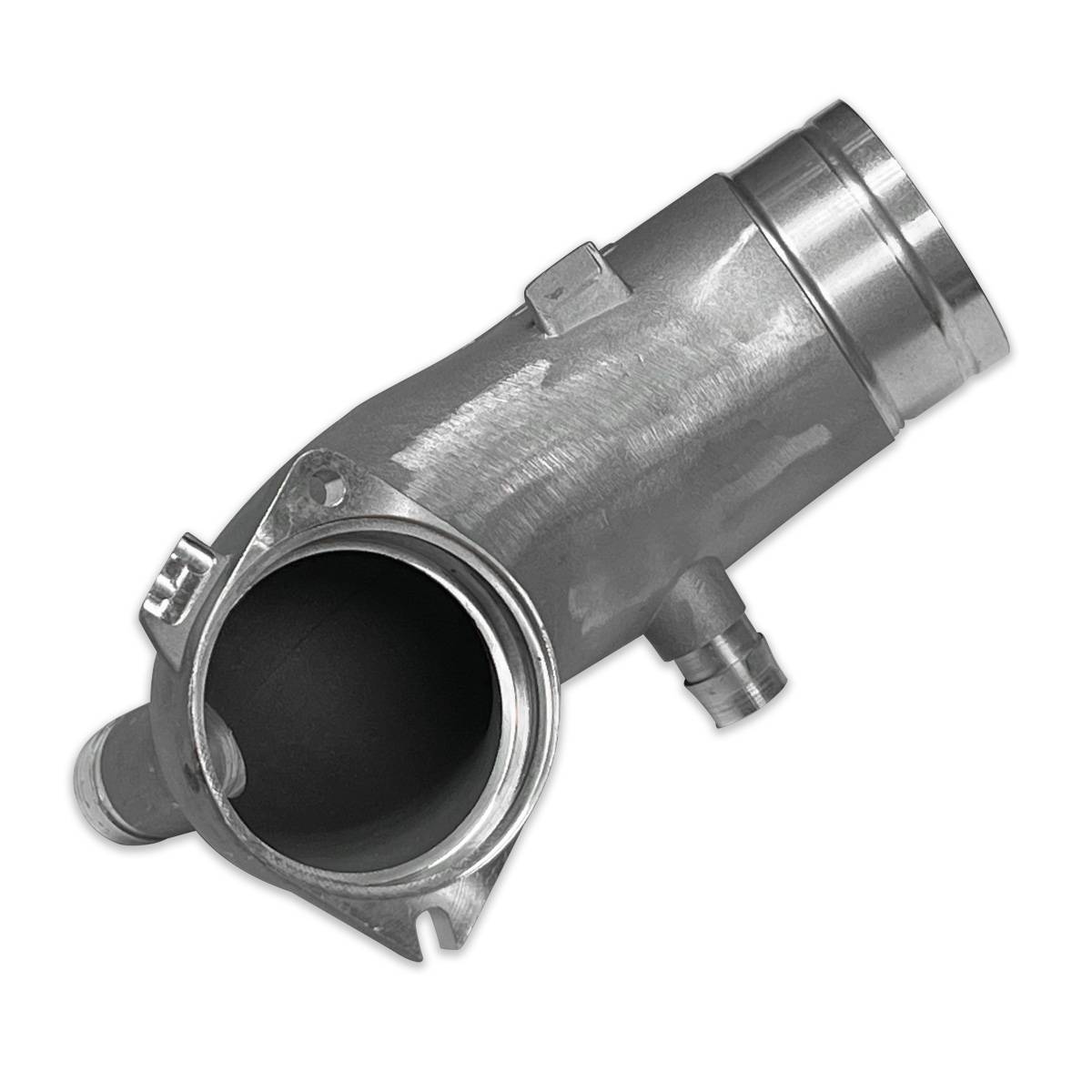

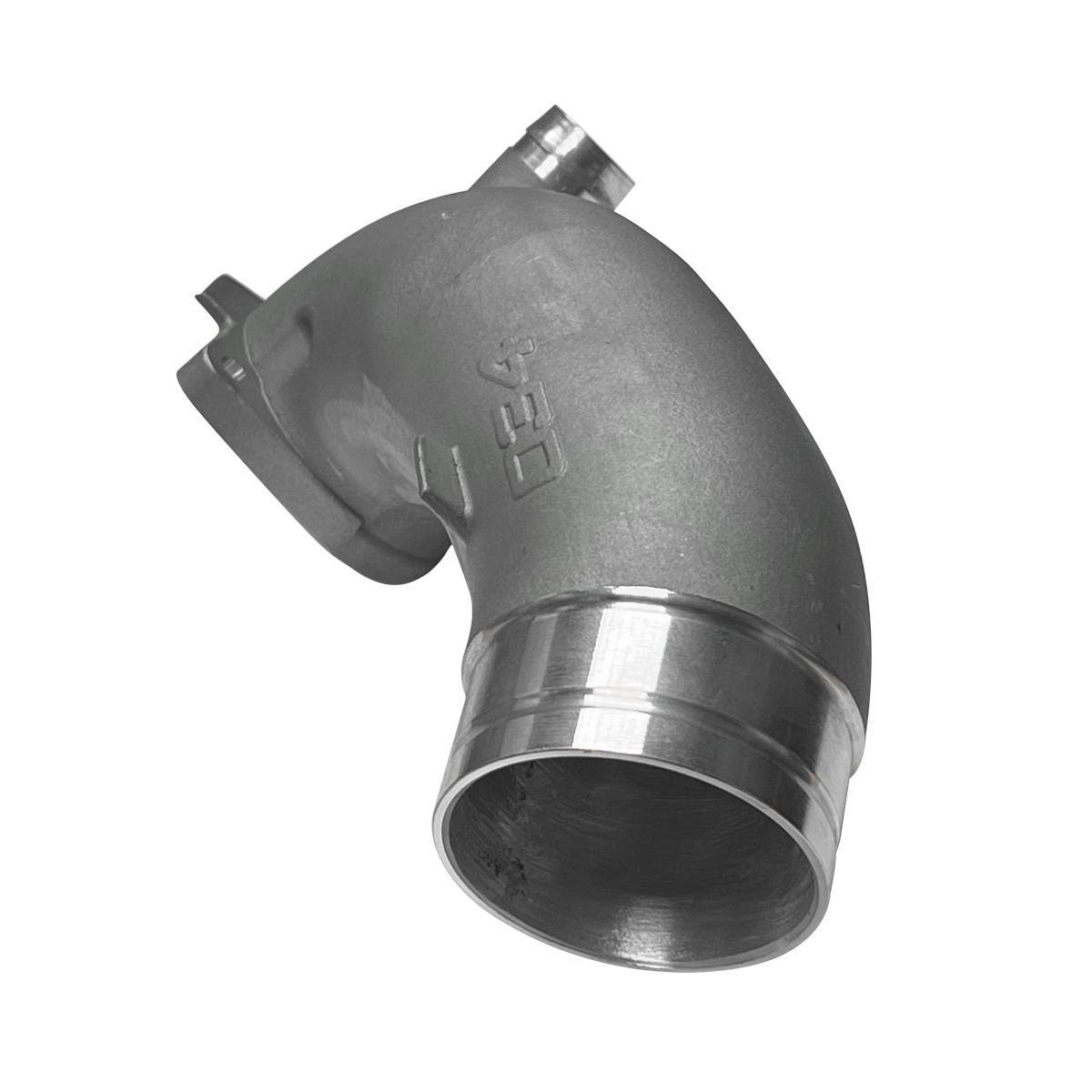

The 034Motorsport Turbo Inlet Pipe for the EA839 3.0T, is an essential upgrade to optimize power by eliminating a critical flow restriction in the intake tract. The EA839 3.0T Turbo Inlet Pipe is manufactured from cast A356 aluminum for maximum airflow, with a machined 6061-T6 billet aluminum turbo inlet adapter that perfectly mates to allow smooth air entry into the compressor housing for maximum airflow. Machined elements are used to retain the original PCV hose fitting and original mounting location, as well as cast stand-offs to preserve the original wiring harness mounting.

Fitment:

• 2018 - Current B9/B9.5 Audi S4 3.0T
• 2018 - Current B9/B9.5 Audi S5 3.0T
• 2018 - Current B9/B9.5 Audi SQ5 3.0T

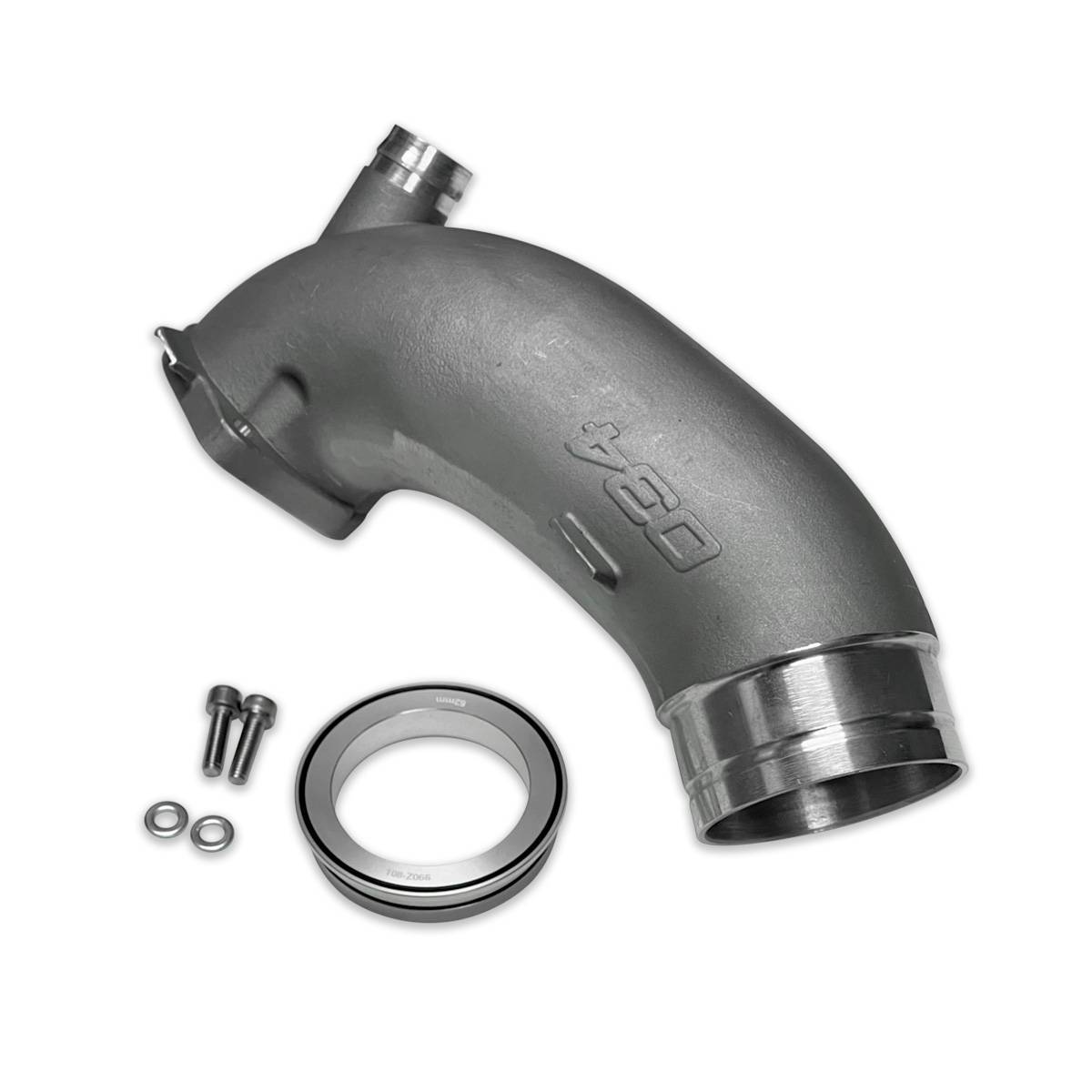

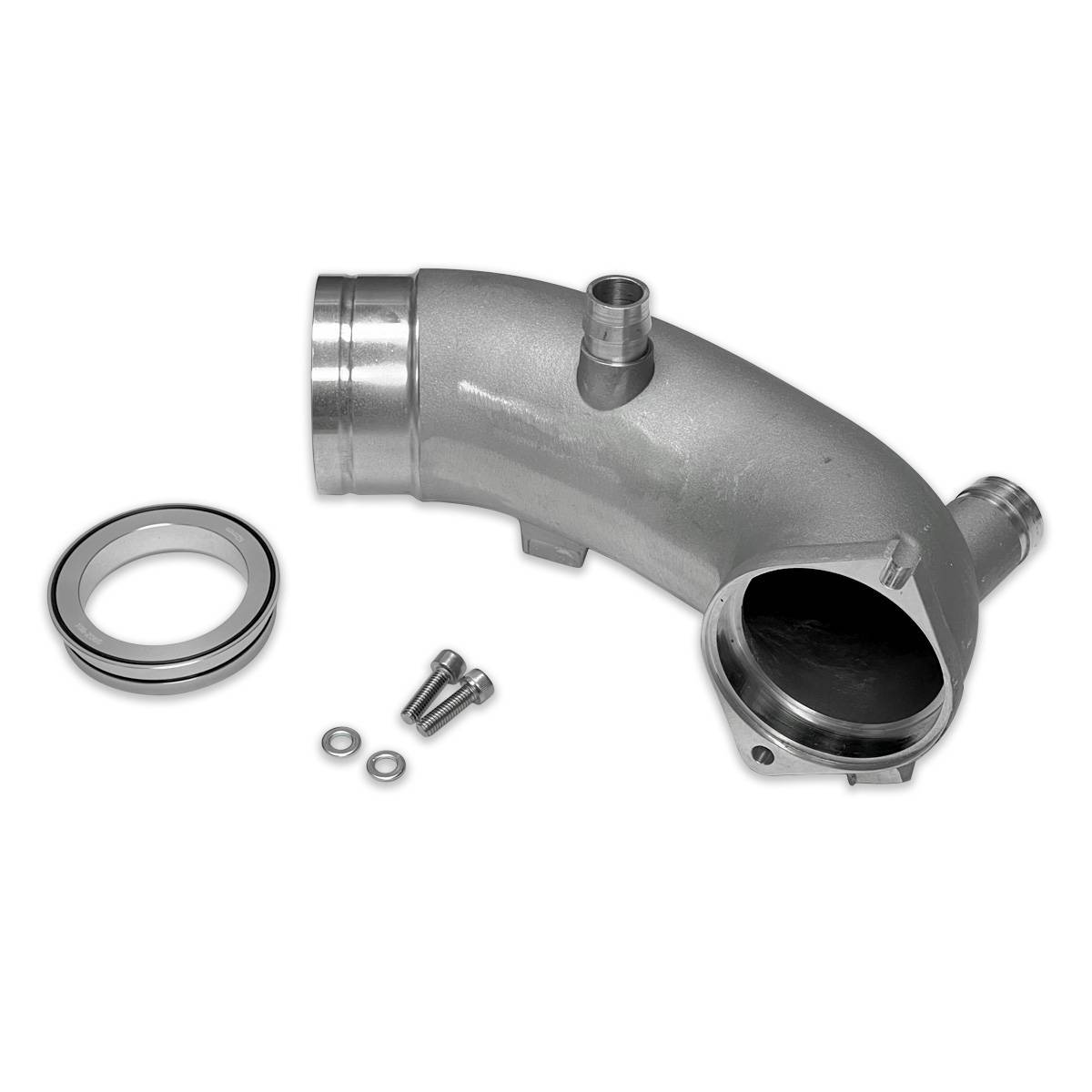

Inside the Box:

• Turbo Inlet Pipe

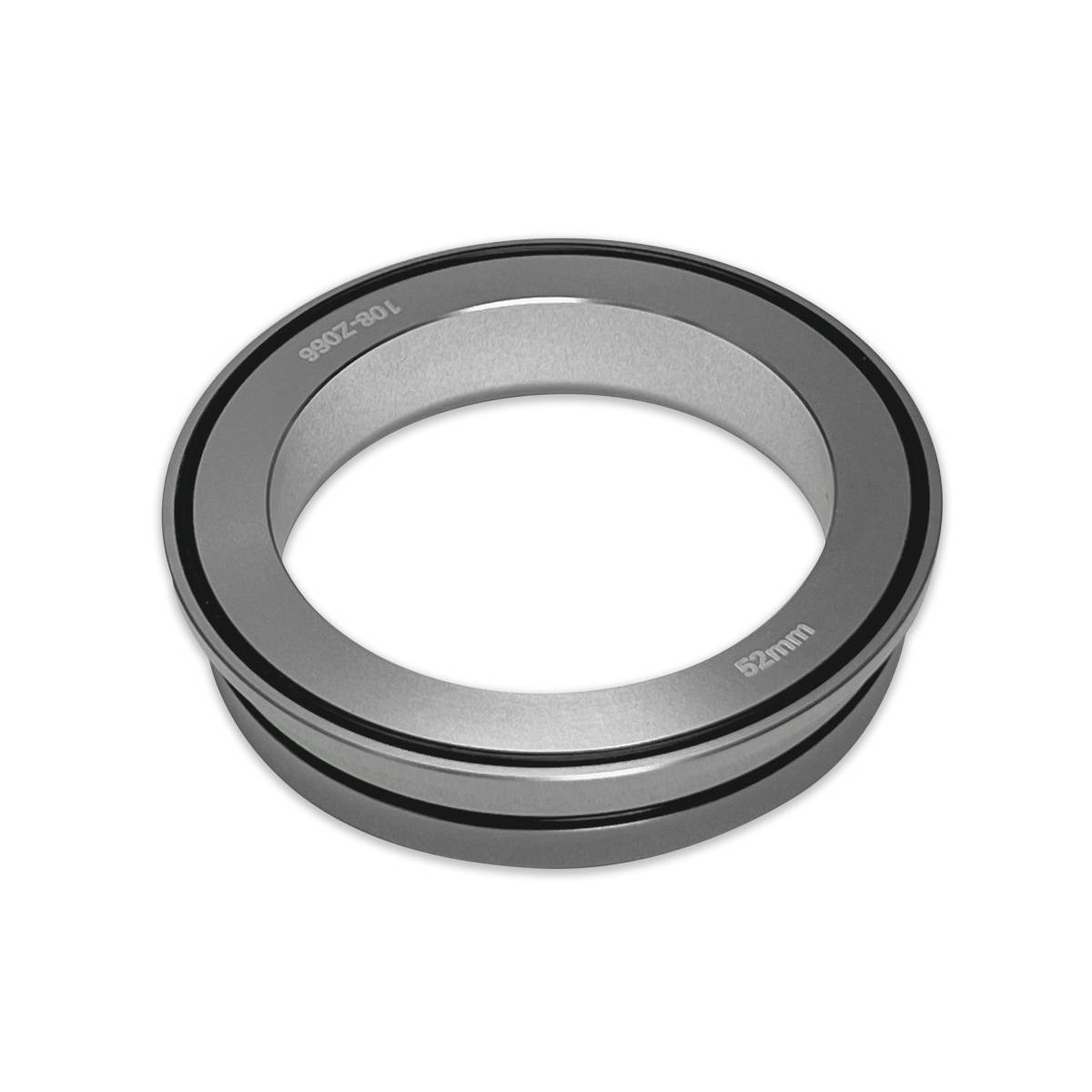

• Turbo Adapter Ring, with O-rings - 52mm for OE Turbo
