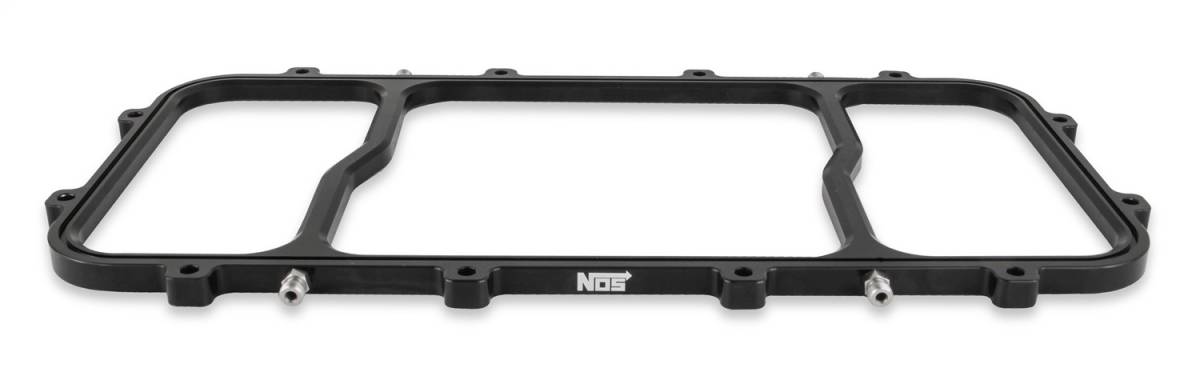

NOS/Nitrous Oxide System Dry Nitrous Plate 12535BNOS

Nitrous Oxide Plate

12535BNOS
  • Dry Nitrous Plate
  • For Holley LS Hi-Ram EFI Intake Manifolds
  • 1000+ HP Max

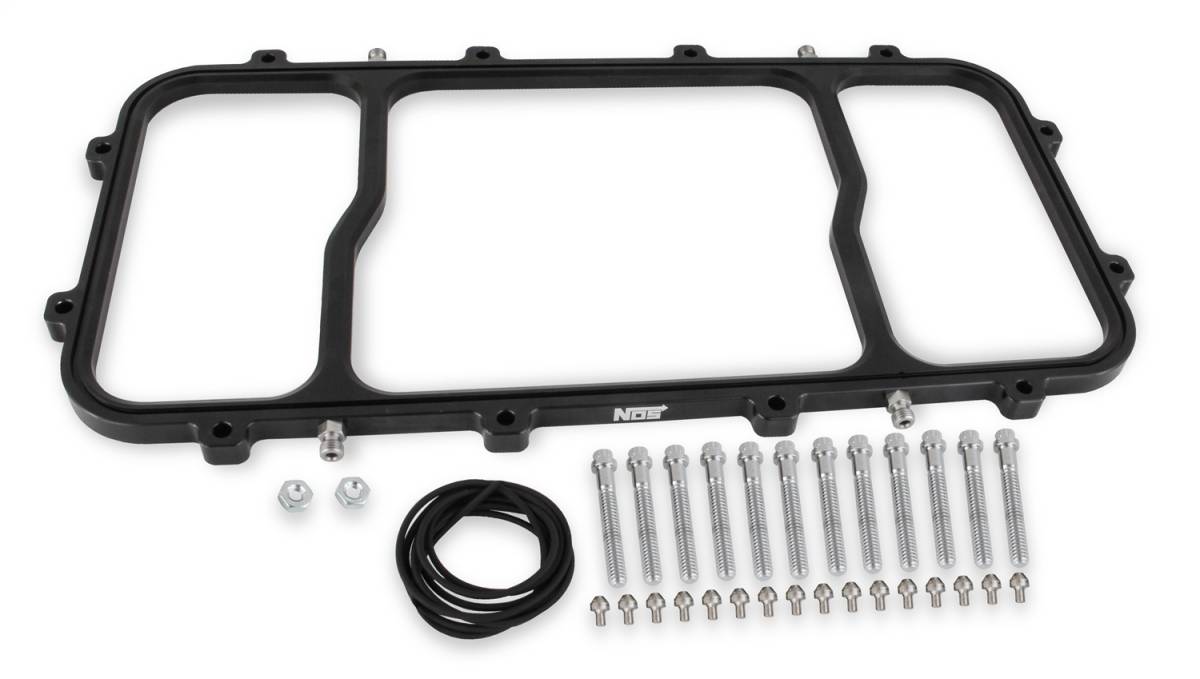

  • Incl. Plate/Gasket/Jet Holders/Jets [50/100/150/200/250]
  • Billet 6061-T6 Aluminum
  • Black Finish
  • Sandwiches Between Bottom Base And Top Plate
  • Supports Up To 1000+ Hp [Jets Purchased Separately]
  • Incl. Plate/Gasket/Hardware/Jet Holders/Jetting
  • Fits Holley® Hi-Ram Intake Manifolds
  • Designed For Optimum Nitrous Distribution On LS-Based Engines

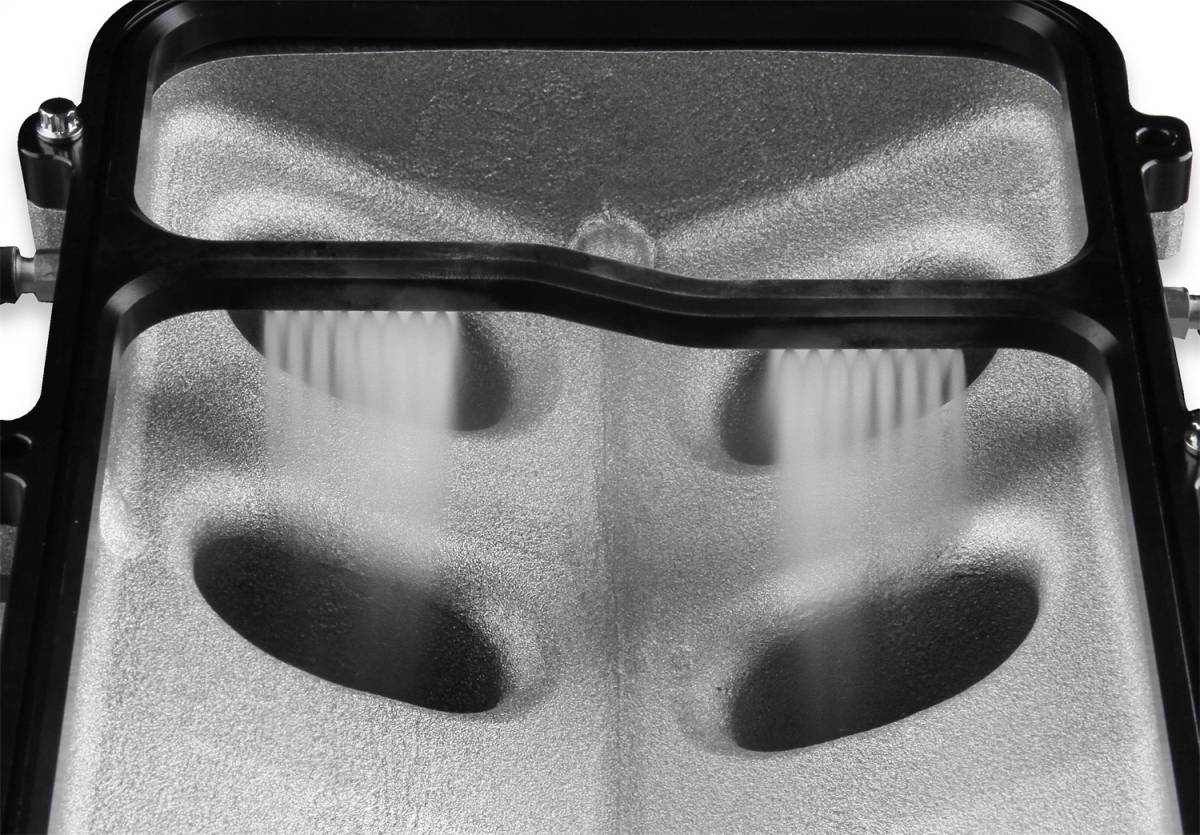

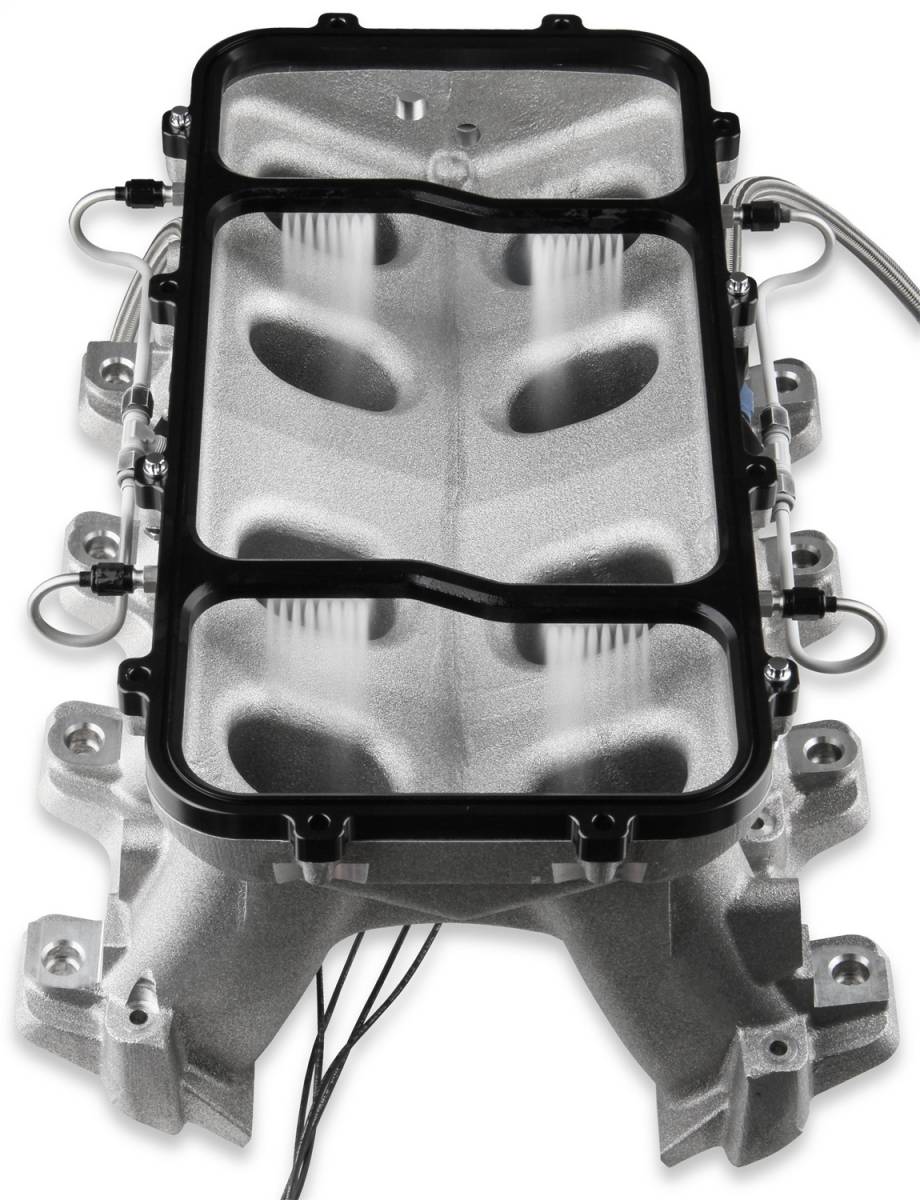

  • Sprays Nitrous Directly Into Each Cylinder

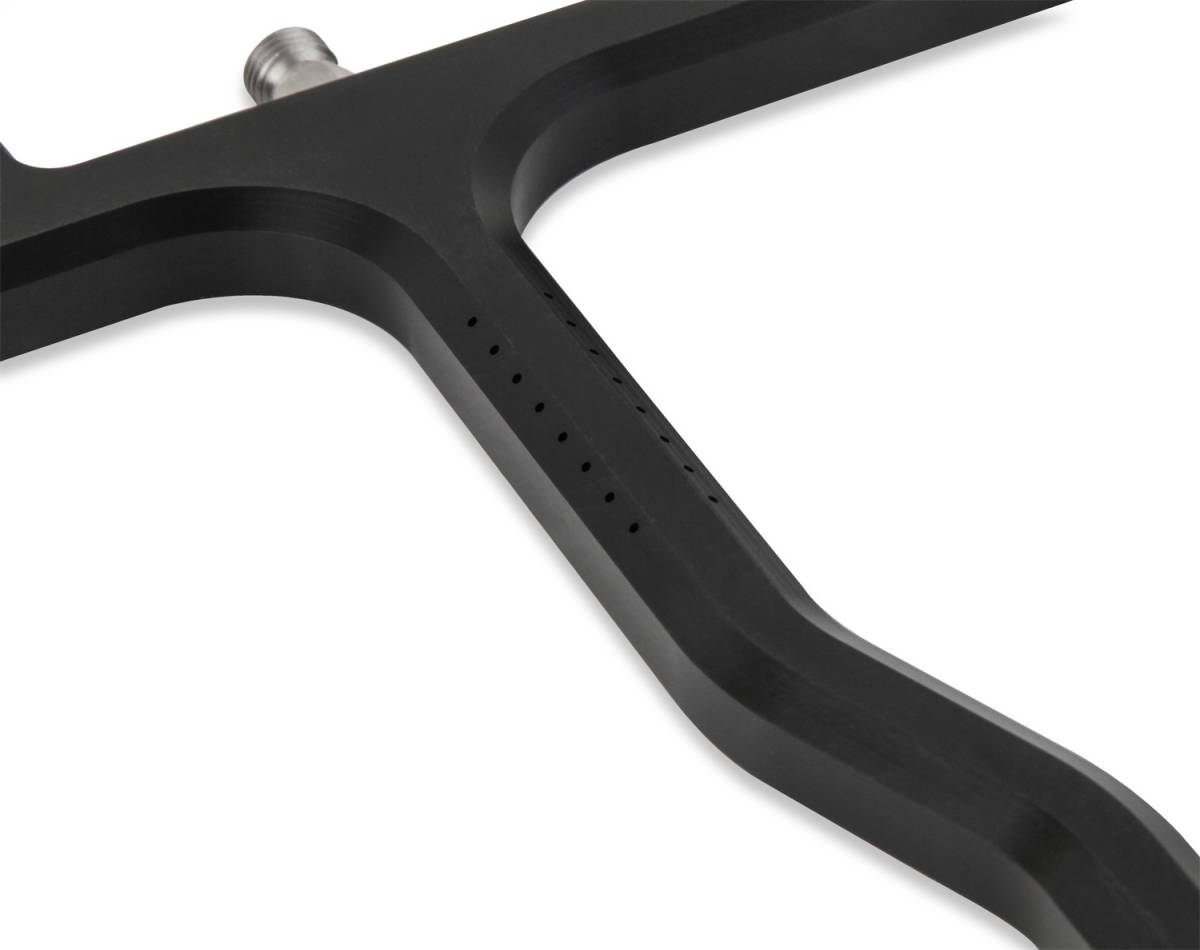

  • 0.103 in. Passage Feeds [8] 0.040 in. Openings/Intake Runner
  • Made From Billet 6061-T6 Aluminum
  • Laser Etched NOS Logo
  • Anodized Black For Corrosion Resistance And Appearance
  • Incl. Jetting For 50/100/150/200/250 Hp Configurations
Availability: Available To Order
Shipping: Available To Order
Pricing: $651.95

Qty:
Free Shipping

Description

NOS now offers innovative 1-piece billet aluminum dry nitrous plates designed to bolt between the upper and lower intake manifold on Holley Hi-Ram LS manifolds. These sandwich-style plates give you an easy way to add nitrous oxide to your Hi-Ram equipped LS engine. Our plates are machined from billet 6061-T6 aluminum, laser engraved with NOS logo, then anodized for great looks and excellent corrosion protection. Our 1-piece plate features machined passages that precisely spray into the center of each cylinder. Plate includes jetting for up to 250 horsepower but is capable of supporting 1000+ horsepower. The plate is made from billet aluminum with passages machined directly into the plate so there is no need to worry about spray bars breaking or spinning.

Extended Information

Country of Origin:  US
Remanufactured Part:
Emissions Code ("1" - Legal in US, "2" - Not Legal in CA, "3" - Off-Road Use Only):  3

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 2.3 lbs.
  • W10.3500” x H0.8500” x L19.1500”
  • Free Shipping
  • Available To Order
