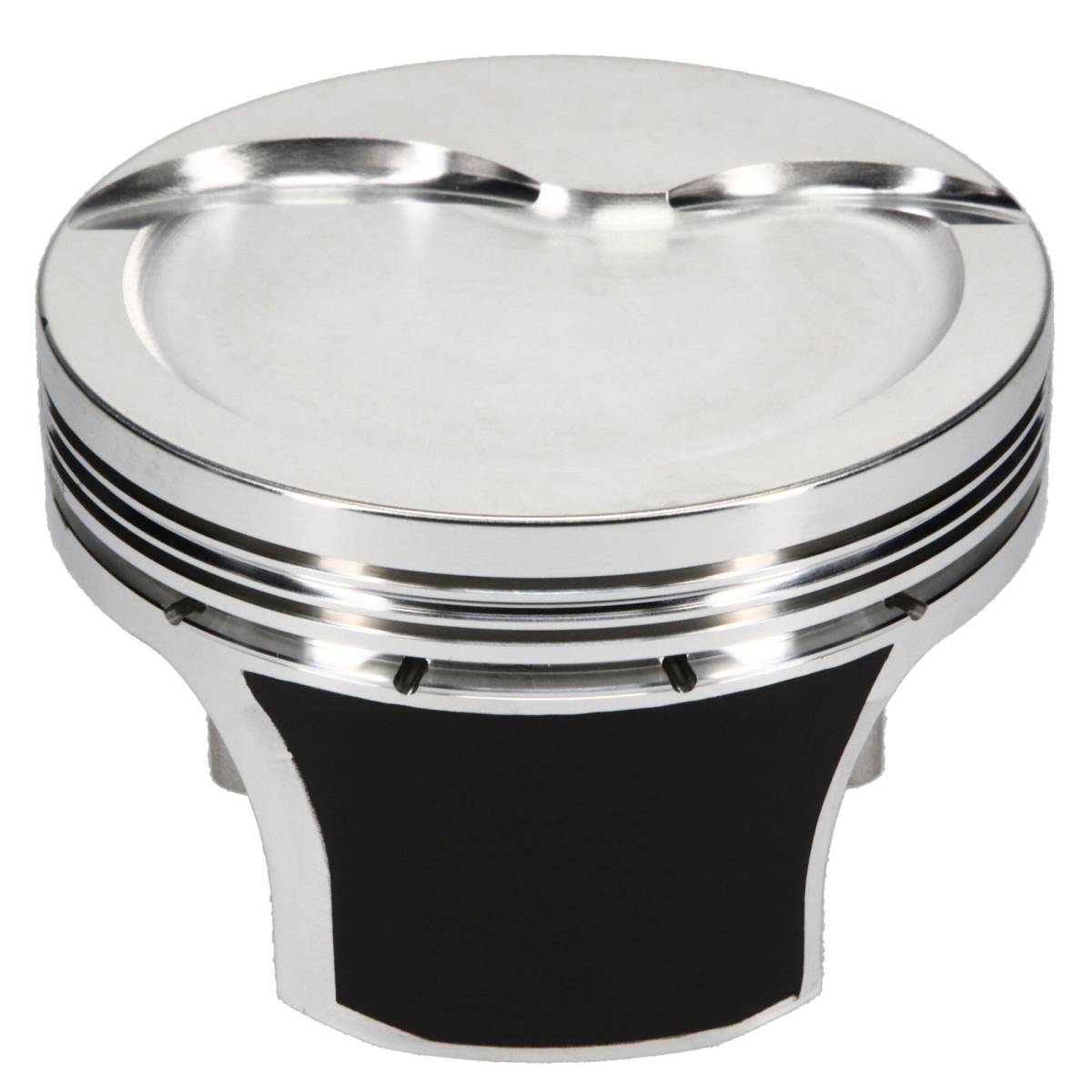

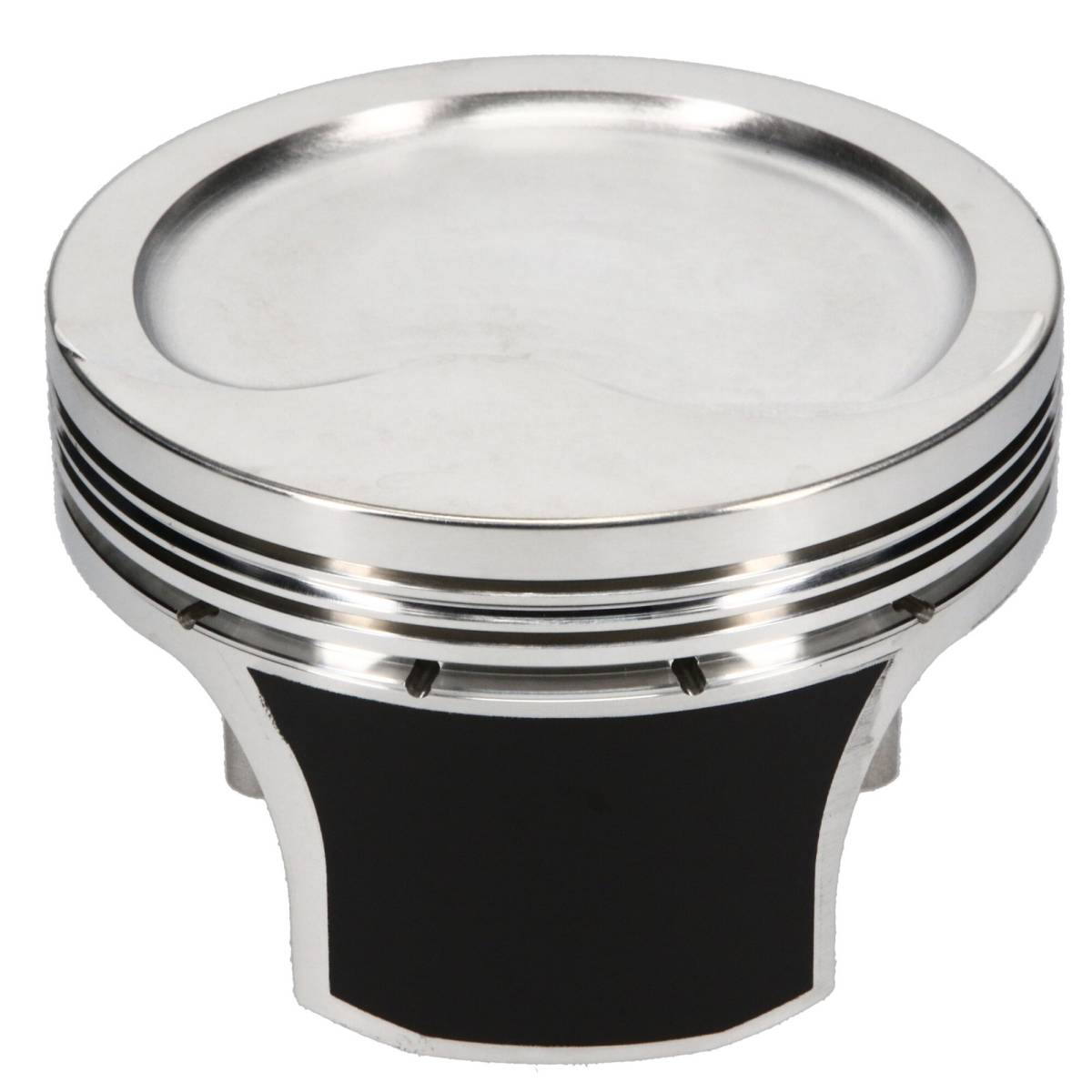

JE Pistons Piston Set, 2618, Inv Dome/Dish, 3.780 Bore, 1.314 CD, 0.945 Pin, Set of 8. 315552

Engine Piston Set

(0) Reviews: Write first review

SKU: 315552

SRP Pro 2618, Chevrolet, LS Gen III/IV, 3.780 in. Bore, 1.314 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit

Chevrolet LS/LM7

Availability: Available To Order

Shipping: Available to Order

Pricing: $874.99

Description
Details
Shipping
Reviews

Description

JE Pistons SRP Pro 2618 line expands on the premium features of the SRP Pro series with the addition of extremely strong, 2618 forged aluminum material. All piston kits include gas-nitrided, carbon-steel pistons rings, pins, and locks. This line represents maximum piston strength at minimum cost.

Details

SKU: 315552
Item #: 315552
UPC #: 1.93564E+11
Brand: JE Pistons
Part Type: Engine Piston Set
Piston Pin Wall Thickness: 0.150
Piston Series: SRP Pro 2618
Engine - Web: LS Gen III/IV
Product Type: Engine Piston Kit
Piston Volume: -12.50
Make - Web: Chevrolet
Bore Diameter: 3.780
Product Market: Domestic
Ring Set Included: Yes
Compression Height: 1.314
Ringset Included: Yes
Prop 65 (C, R or CR): CR
Prop 65 - Short Label: Prop 65 Warning Label.JPG
Cylinder Head: GM LS1 15 DEG
Second Compression Ring Thickness: 0.0480
Prop 65 Yes/No: Yes
Out of Stock Message: Please Allow Approximately 3 Weeks or Less for Shipping
Engine: LS Gen III/IV
Top Compression Ring Thickness: 0.0480
Piston Material: 2618
Add-On: 945-073-MW
Add-On: 945-2250-15-51C
Add-On: SWN30131-2
Forging Type: FSR
Category Hierarchy: Auto>SRP Pistons>SRP Pro 2618>Piston Kits
Engine Type: ICE
Industry: Automotive
Wrist Pin Length: 2.250
Piston Pin Length: 2.250
Oil Ring Thickness: 0.0995
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Piston Pin Material: 5115
Piston Average Weight: 370
Wrist Pin Outer Diameter: 0.945
Piston Pin Outside Diameter: 0.945
Piston Head Type: Dish
Wrist Pin Wall Thickness: 0.150
Availability Remarks: Available To Order
Condition: New
