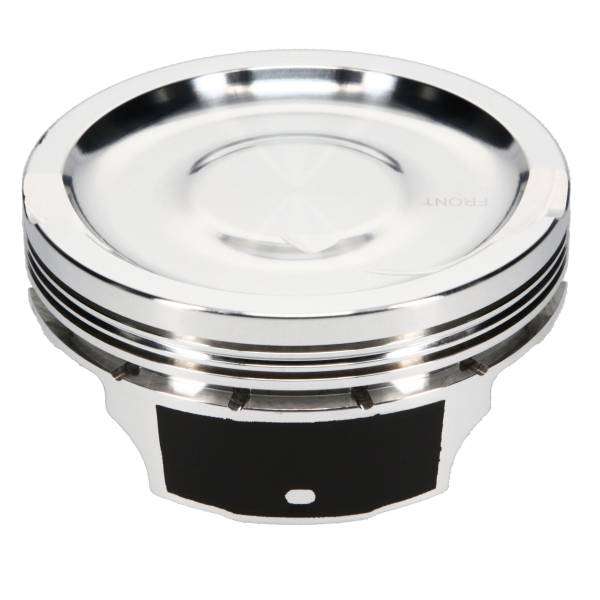

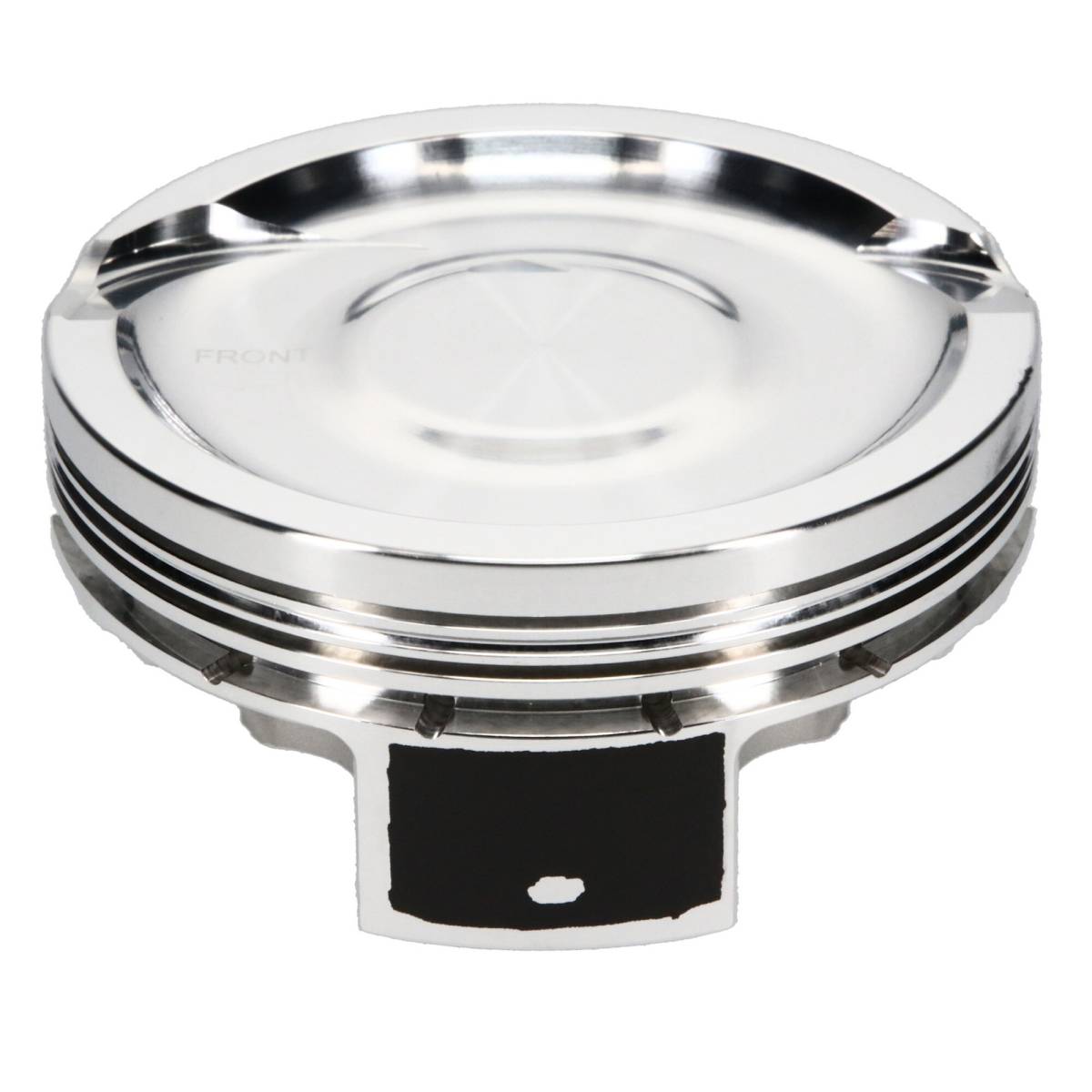

JE Pistons Piston Set, 2618, Inv Dome/Dish, 4.010 Bore, 1.115 CD, 0.927 Pin, Set of 8. 324062

Engine Piston Set

(0) Reviews: Write first review

SKU: 324062

JE, Chevrolet, LS Gen III/IV, 4.010 in. Bore, 1.115 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit

Chevrolet LS

Availability: Available To Order

Shipping: Available to Order

Pricing: $999.96

Description
Details
Shipping
Reviews

Description

JE Pistons asymmetrical FSR (Forged Side Relief) piston line incorporates modern forging design with a larger skirt on the major thrust side and smaller, friction-reducing skirt on the minor thrust side. Combined with precision CNC machining, the result is a high-strength, lightweight piston that is extremely durable.

Details

SKU: 324062
Item #: 324062
UPC #: 1.93564E+11
Brand: JE Pistons
Part Type: Engine Piston Set
Bore Diameter: 4.010
Piston Volume: -7.80
Make - Web: Chevrolet
Compression Height: 1.115
Product Market: Domestic
Prop 65 (C, R or CR): CR
Ring Set Included: No
Cylinder Head: LS 12 DEG/15 DEG COMBO VR
Ringset Included: No
Prop 65 Yes/No: Yes
Prop 65 - Short Label: Prop 65 Warning Label.JPG
Engine: LS Gen III/IV
Second Compression Ring Thickness: 0.0600
Piston Material: 2618
Out of Stock Message: Please Allow Approximately 3 Weeks or Less for Shipping
Forging Type: FSR
Top Compression Ring Thickness: 0.0480
Engine Type: ICE
Add-On: 927-073-MW
Add-On: 927-2250-17-51C
Add-On: JG3108-4010-4
Industry: Automotive
Category Hierarchy: Auto>JE Pistons>Piston Kits>Domestic
Piston Pin Length: 2.250
Oil Ring Thickness: 0.149
Wrist Pin Length: 2.250
Piston Pin Material: 5115
Piston Average Weight: 402
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Piston Pin Outside Diameter: 0.927
Piston Head Type: Dish
Wrist Pin Outer Diameter: 0.927
Piston Pin Wall Thickness: 0.170
Piston Quantity: 8
Wrist Pin Wall Thickness: 0.170
Product Type: Engine Piston Kit
Piston Series: JE Pistons
Engine - Web: LS Gen III/IV
Availability Remarks: Available To Order
Condition: New

Shipping Information

Requires Shipping: Item Requires Shipping
Weight: 12.3 lbs.
Package Dimensions: W12.0000” x H6.0000” x L26.0000”
