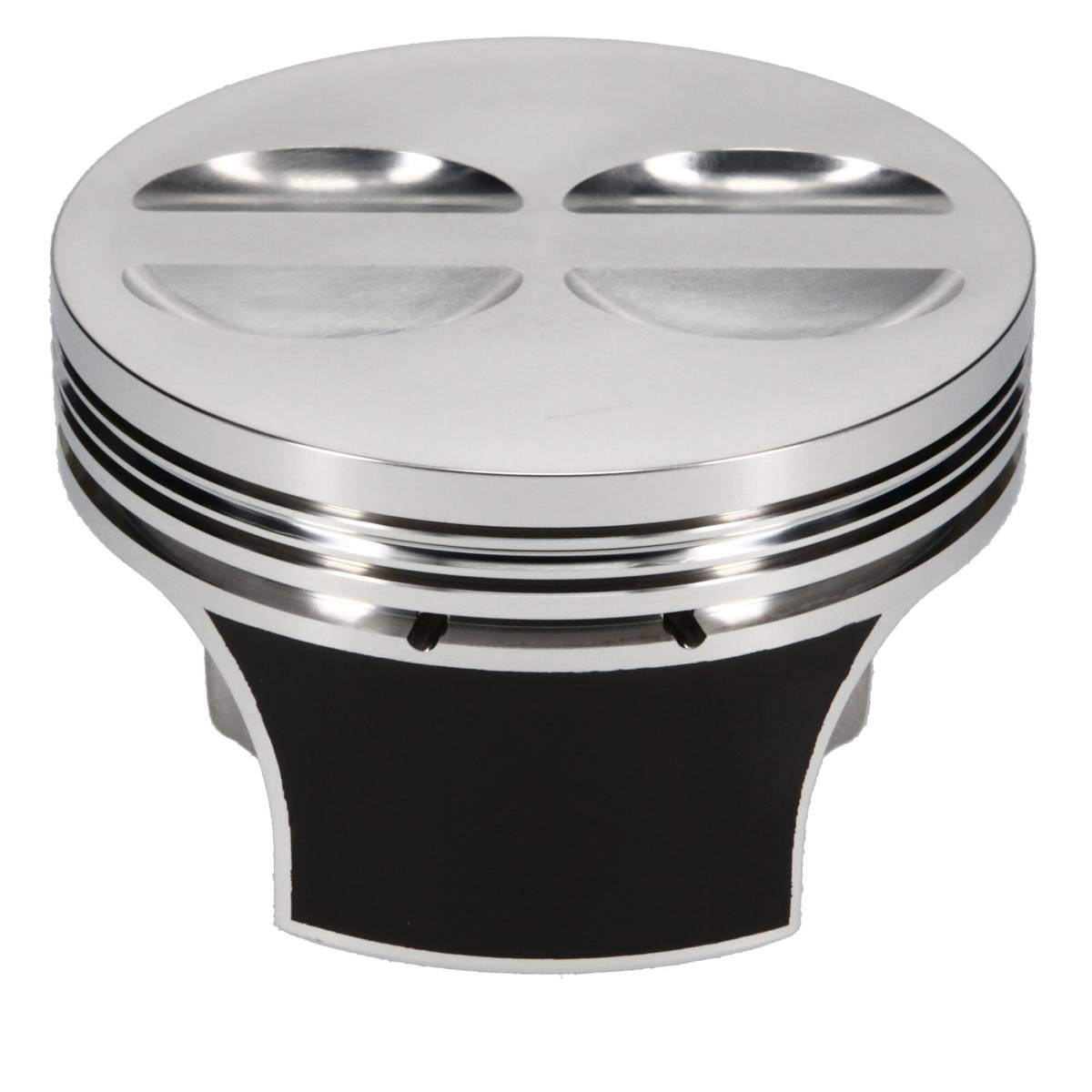

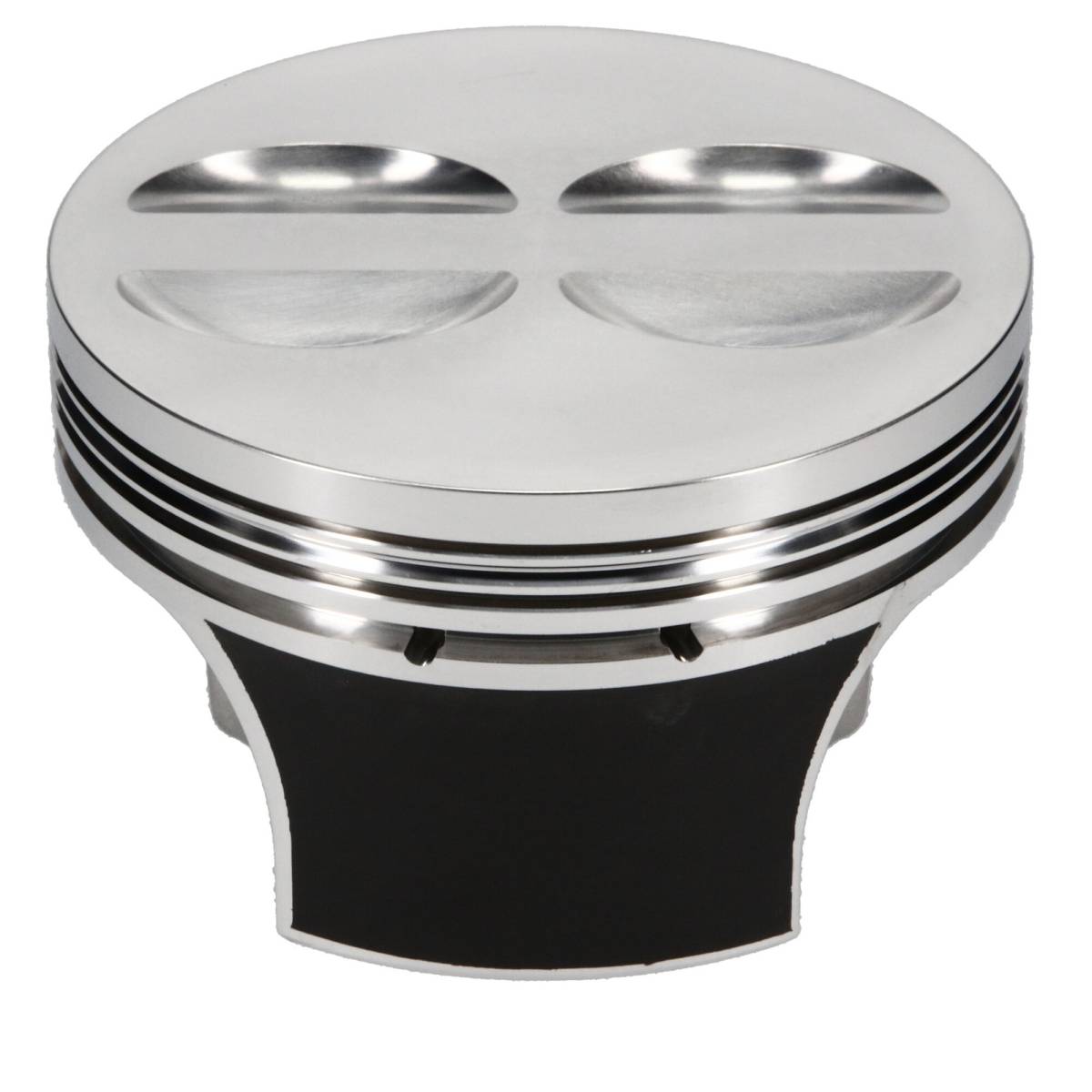

JE Pistons Piston Set, 2618, Flat Top, 4.020 Bore, 1.560 CD, 0.927 Pin, Set of 8. 324865

Engine Piston Set

(0) Reviews: Write first review

SKU: 324865

SRP Pro 2618, Chevrolet, Big Block Chevrolet, 4.020 in. Bore, 1.560 CD, Flat Top, 8 Cyl. Piston Kit

Chevrolet Big Block 604 Crate

Availability: Available To Order

Shipping: Available to Order

Pricing: $836.41

Description
Details
Shipping
Reviews

Description

JE Pistons SRP Pro 2618 line expands on the premium features of the SRP Pro series with the addition of extremely strong, 2618 forged aluminum material. All piston kits include gas-nitrided, carbon-steel pistons rings, pins, and locks. This line represents maximum piston strength at minimum cost.

Details

SKU: 324865
Item #: 324865
UPC #: 1.93564E+11
Brand: JE Pistons
Part Type: Engine Piston Set
Engine Type: ICE
Industry: Automotive
Wrist Pin Length: 2.250
Piston Pin Length: 2.250
Oil Ring Thickness: 0.119
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Piston Pin Material: 5115
Piston Average Weight: 492
Wrist Pin Outer Diameter: 0.927
Piston Pin Outside Diameter: 0.927
Piston Head Type: Flat
Wrist Pin Wall Thickness: 0.150
Piston Pin Wall Thickness: 0.150
Piston Series: SRP Pro
Piston Series: SRP Pro 2618
Engine - Web: Small Block
Product Type: Engine Piston Kit
Piston Volume: -4.50
Make - Web: Chevrolet
Bore Diameter: 4.020
Product Market: Domestic
Ring Set Included: Yes
Compression Height: 1.560
Ringset Included: Yes
Prop 65 (C, R or CR): CR
Prop 65 - Short Label: Prop 65 Warning Label.JPG
Cylinder Head: STD CHEVROLET 23 DEG
Second Compression Ring Thickness: 0.0600
Prop 65 Yes/No: Yes
Out of Stock Message: Please Allow Approximately 3 Weeks or Less for Shipping
Engine: Big Block
Engine: Small Block
Top Compression Ring Thickness: 0.0480
Piston Material: 2618
Piston Material: 4032
Add-On: 927-073-MW
Add-On: 927-2250-15-51C
Add-On: JG3108-4020-2
Forging Type: FSR
Category Hierarchy: Auto>SRP Pistons>SRP Pro>Piston Kits
Availability Remarks: Available To Order
Condition: New

Shipping Information

Requires Shipping: Item Requires Shipping
Weight: 12.8 lbs.
Package Dimensions: W12.0000” x H6.0000” x L26.0000”
Shipping: Free Shipping
Shipping Remarks: Available to Order
