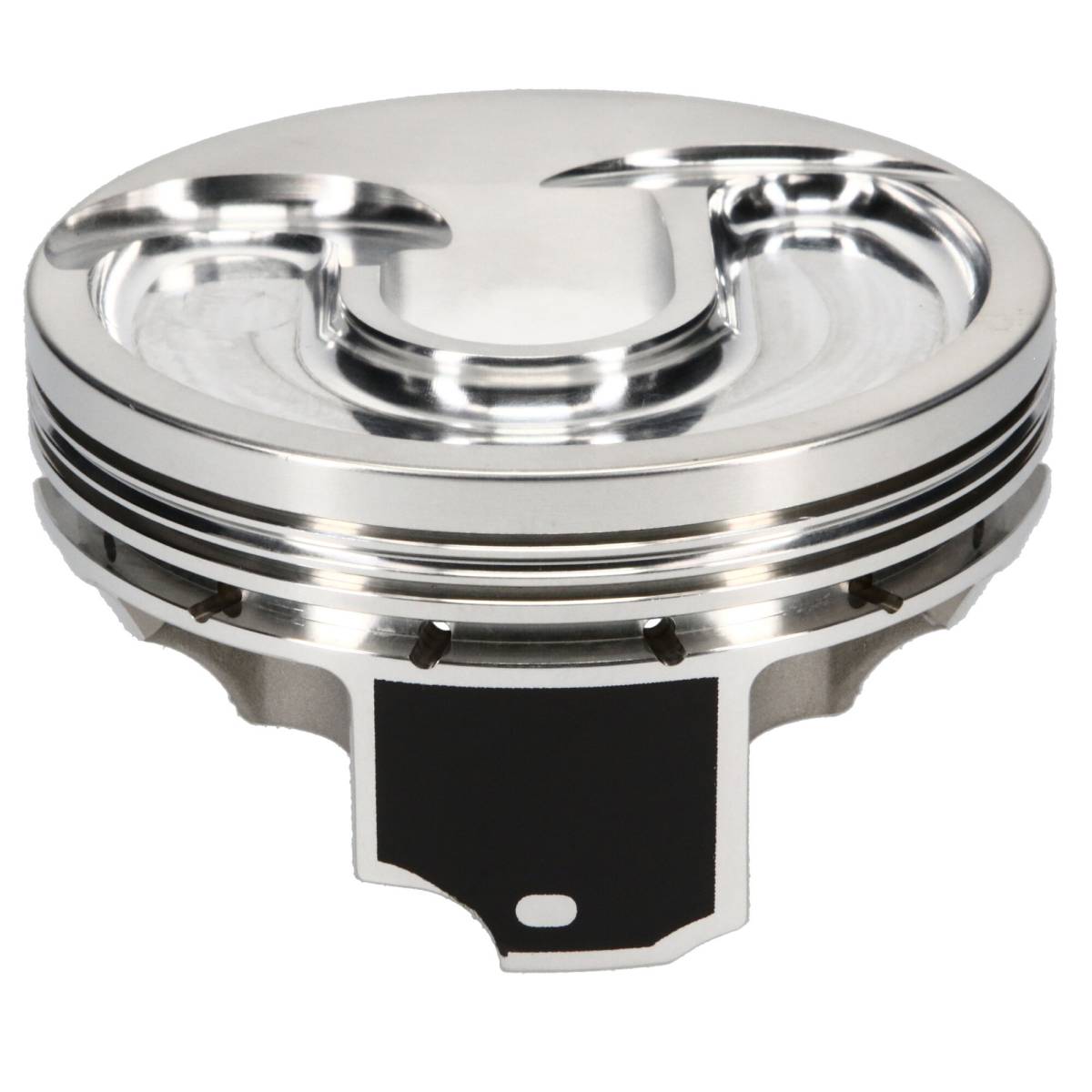

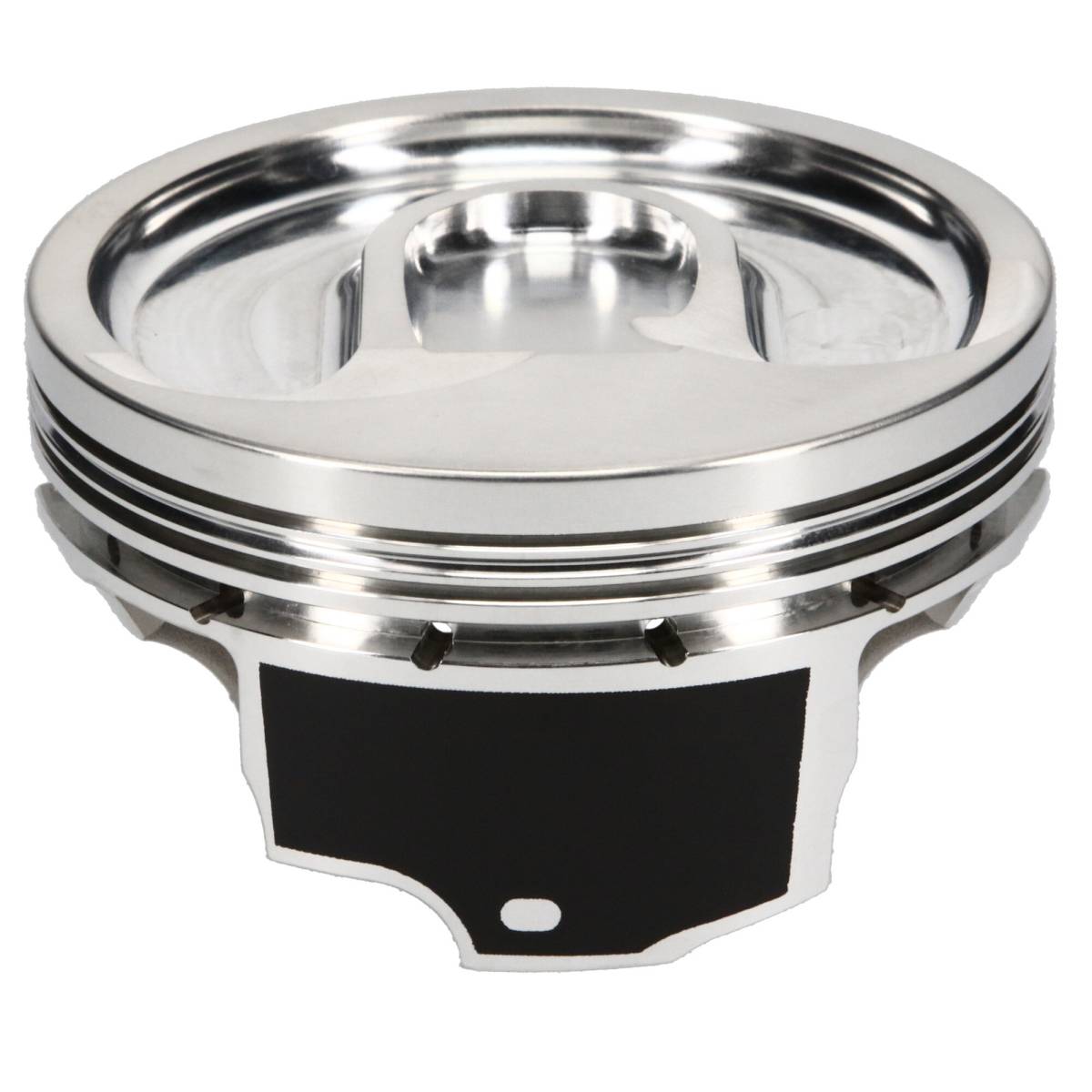

JE Pistons Piston Set, 2618, Dome, 4.070 Bore, 1.304 CD, 0.927 Pin, Set of 8. 338680

Engine Piston Set

(0) Reviews: Write first review

SKU: 338680

JE, Chevrolet, LT1 Gen V, 4.070 in. Bore, 1.304 CD, Dome, 8 Cyl. Piston Kit

Chevrolet LT1

Availability: Available To Order

Shipping: Available to Order

Pricing: $949.99

Description
Details
Shipping
Reviews

Description

JE Pistons asymmetrical FSR (Forged Side Relief) piston line incorporates modern forging design with a larger skirt on the major thrust side and smaller, friction-reducing skirt on the minor thrust side. Combined with precision CNC machining, the result is a high-strength, lightweight piston that is extremely durable.

Details

SKU: 338680
Item #: 338680
UPC #: 1.93564E+11
Brand: JE Pistons
Part Type: Engine Piston Set
Piston Pin Material: 5115
Piston Average Weight: 504
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Piston Pin Outside Diameter: 0.927
Piston Head Type: Dome
Wrist Pin Outer Diameter: 0.927
Piston Pin Wall Thickness: 0.150
Piston Quantity: 8
Wrist Pin Wall Thickness: 0.150
Product Type: Engine Piston Kit
Piston Series: JE Pistons
Engine - Web: LT1 Gen V
Bore Diameter: 4.070
Piston Volume: 2.30
Make - Web: Chevrolet
Compression Height: 1.304
Product Market: Domestic
Prop 65 (C, R or CR): CR
Ring Set Included: No
Cylinder Head: GEN 5 LT1
Ringset Included: No
Prop 65 Yes/No: Yes
Engine: LT1 Gen V
Second Compression Ring Thickness: 0.0600
Piston Material: 2618
Forging Type: FSR
Top Compression Ring Thickness: 0.0480
Engine Type: ICE
Industry: Automotive
Category Hierarchy: Auto>JE Pistons>Piston Kits>Domestic
Piston Pin Length: 2.250
Oil Ring Thickness: 0.1175
Wrist Pin Length: 2.250
Availability Remarks: Available To Order
Condition: New

Shipping Information

Requires Shipping: Item Requires Shipping
Weight: 12.6 lbs.
Package Dimensions: W12.0000” x H6.0000” x L26.0000”
Shipping: Free Shipping
Shipping Remarks: Available to Order
