034 Motorsport 2-Piece Floating Front Brake Rotor Upgrade Kit for Audi B8.5 SQ5
034 Motorsport Brake kit
034-301-1015

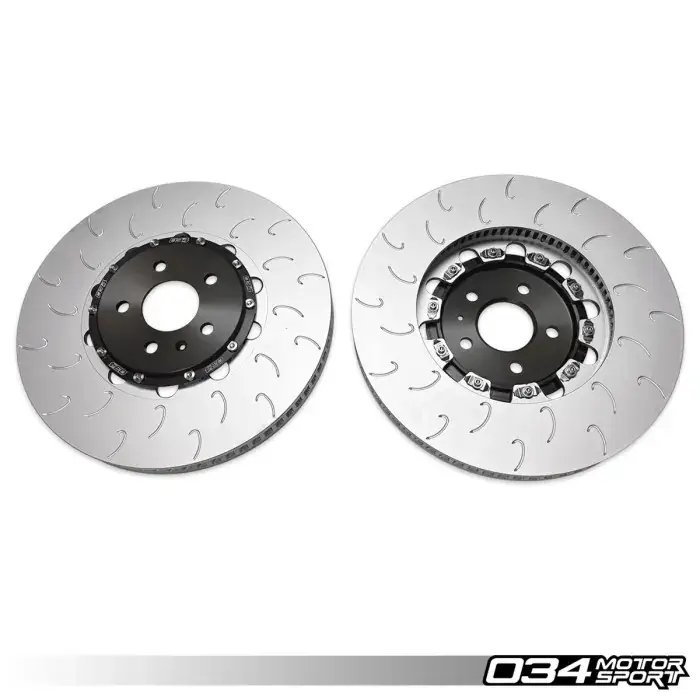

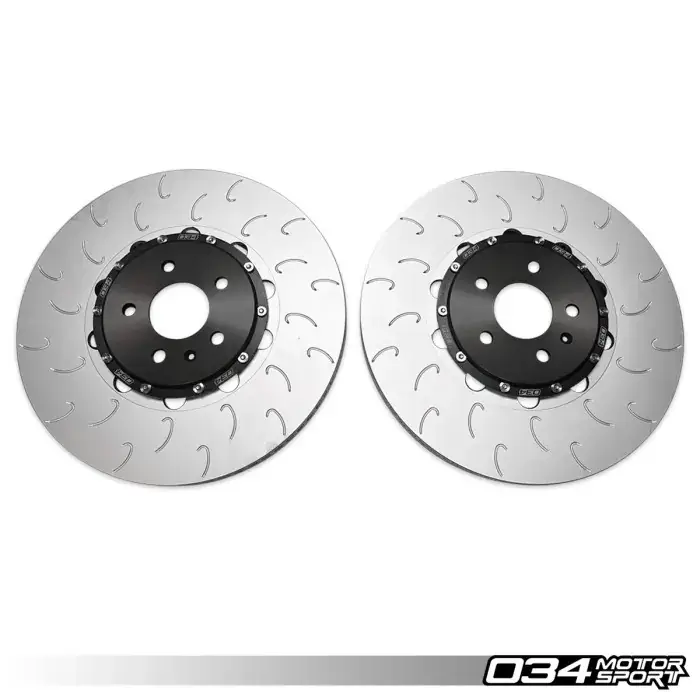

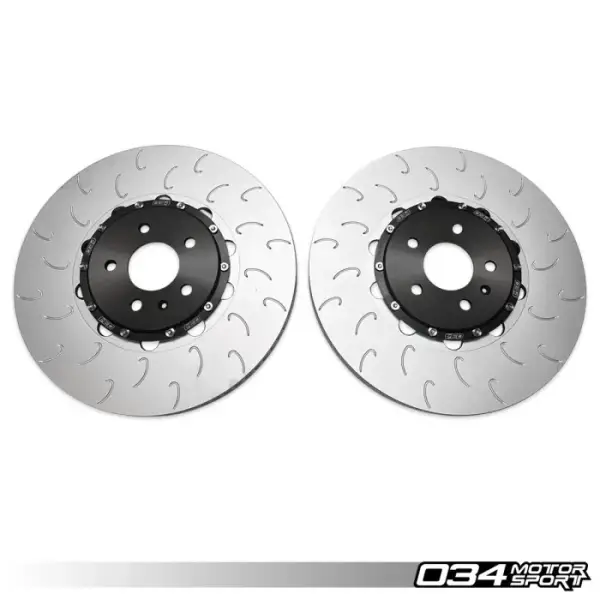

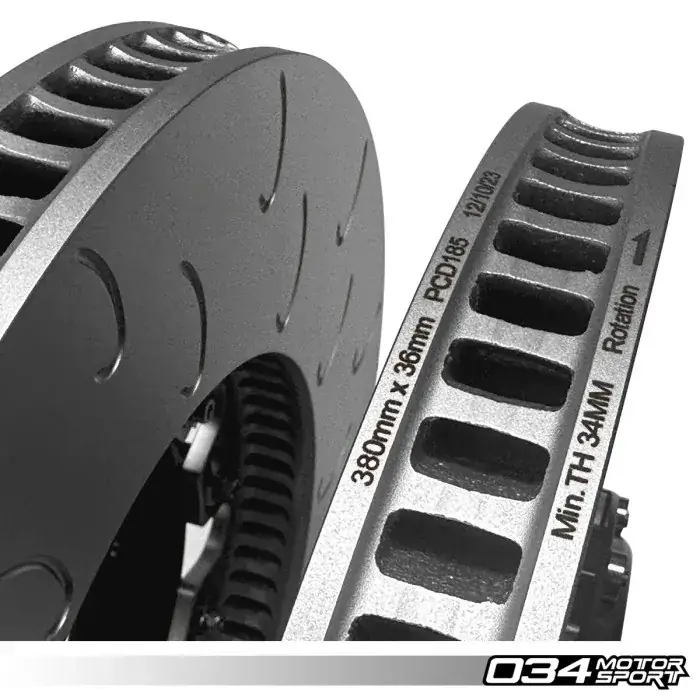

The 034Motorsport 380mmx36mm 2-Piece Floating Front Brake Rotor Upgrade Kit for the Audi B8.5 SQ5 is a complete replacement brake rotor kit, designed to work flawlessly with the factory front calipers found on the Audi B8.5 SQ5. This is a true high performance and racing quality rotor that won’t let you down when you need hard braking the most! Weighing in at approximately 28.65lbs, our lightweight design retains proper thermal mass in the rings to adequately capture heat, while utilizing 72 directionally curved vanes to forcefully flow cool air through the rotor to dissipate heat.
NVH is the measurement of how much noise, vibration, & harshness gets transmitted into the cabin of your vehicle. The 034Motorsport 2-Piece Brake Rotors transfer none to low amounts of noise to the cabin based on user feedback. This NVH is relative to the brake pad installed with the brake rotor. Different brake pads will have different resonances when passing over a rotor with slots, which can sometimes make a slight whirring noise. The sounds from these rotors are the direct result of the performance improvements they make to the braking. The J-slots release gas from under the brake pad, and the high-density directional aero veining in the rotors move substantial air, all resulting in more sounds of air moving. The installation of other suspension components can also affect the NVH transferred. NVH is subjective, so some users may find NVH to be increased or decreased from our rating. If you are experiencing higher than quoted NVH with this product, please email techsupport@034motorsport.com for further assistance.
NVH is the measurement of how much noise, vibration, & harshness gets transmitted into the cabin of your vehicle. The 034Motorsport 2-Piece Brake Rotors transfer none to low amounts of noise to the cabin based on user feedback. This NVH is relative to the brake pad installed with the brake rotor. Different brake pads will have different resonances when passing over a rotor with slots, which can sometimes make a slight whirring noise. The sounds from these rotors are the direct result of the performance improvements they make to the braking. The J-slots release gas from under the brake pad, and the high-density directional aero veining in the rotors move substantial air, all resulting in more sounds of air moving. The installation of other suspension components can also affect the NVH transferred. NVH is subjective, so some users may find NVH to be increased or decreased from our rating. If you are experiencing higher than quoted NVH with this product, please email techsupport@034motorsport.com for further assistance.
Pricing:
$945.00
Description
PRODUCT DESCRIPTION:
The 034Motorsport 380mmx36mm 2-Piece Floating Front Brake Rotor Upgrade Kit for the Audi B8.5 SQ5 is a complete replacement brake rotor kit, designed to work flawlessly with the factory front calipers found on the Audi B8.5 SQ5.
Weighing in at approximately 28.65lbs, our lightweight design retains proper thermal mass in the rings to adequately capture heat, while utilizing 72 directionally curved vanes to forcefully flow cool air through the rotor to dissipate heat.
The central hat portion of the 034Motorsport rotor is made of 6061-T6 aircraft specification aluminum. The disc is constructed out of a proprietary metal alloy that can withstand immense braking temperatures while holding form allowing hard street use and long days at the track allowing you to drive versus working on the car. From the factory, the same rotor is used on both sides of the SQ5, leading to one side having incorrect venting and cooling effects. The 034Motorsport 2-Piece Floating Front Brake Rotor Upgrade Kit utilizes 72 directionally curved vanes properly oriented for each side of the vehicle to forcefully flow cool air through both rotors to dissipate heat equally.

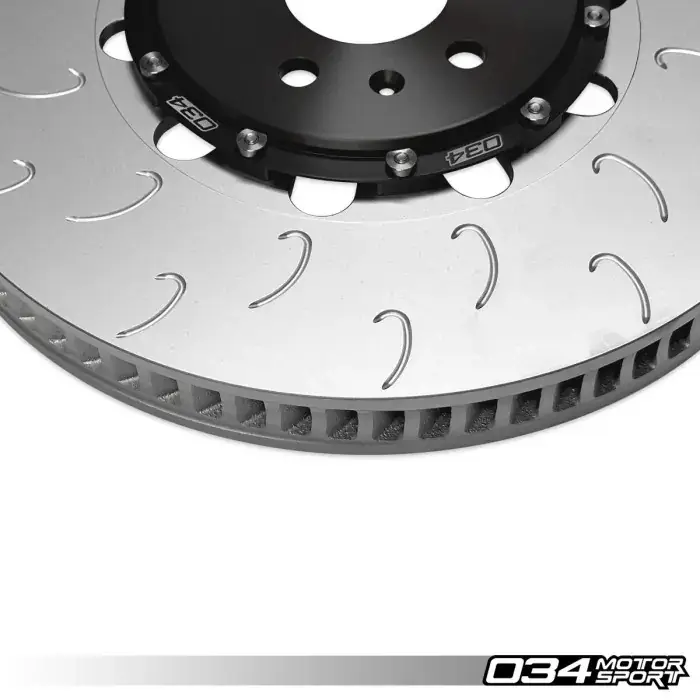

The face of the rotor utilizes J-Slot slots to clean the pad and surface of contaminants and allows hot pad outgassing, all while reducing overall braking noise compared to a traditional slotted rotor.

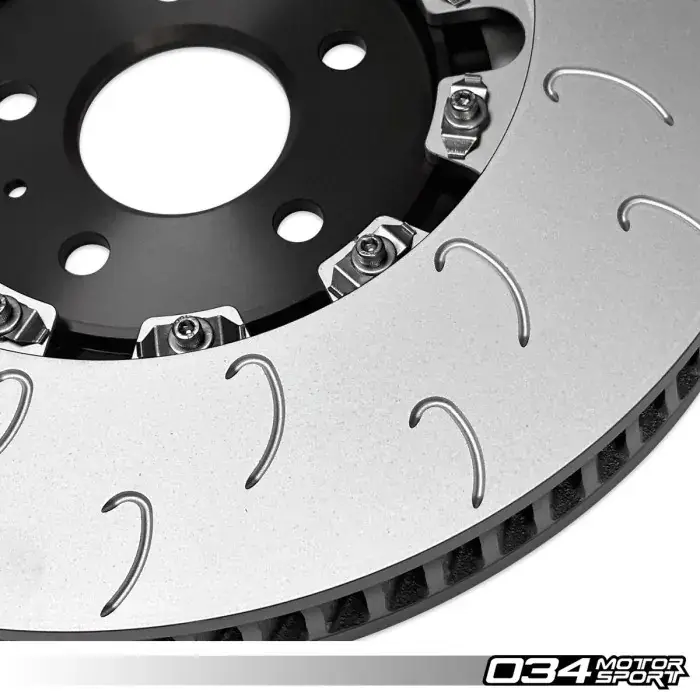

The rotor and hat have a floating mount system that utilizes high strength alloy steel bobbins. The pins take the load from braking actions while maintaining the axial and radial float between the hat and disc, allowing for safe expansion and contraction from heat.
FEATURES:
Lightweight Construction (28.65lb 034Motorsport Rotor), the Same Weight as OEM but With Improved Cooling and Metallurgy
Floating Bobbins, 2-Piece Design with radial and Lateral Expansion Capability, OE Only Allows Radial Expansion
Aerospace Grade Aluminum Hats
CM-250 Special Alloy Rotor Rings Designed Specifically for Hard Street and Track Use, OE Replacement Rotors Can Warm Under These Conditions
J-slotted Friction Face
OEM Fitment & Functionality

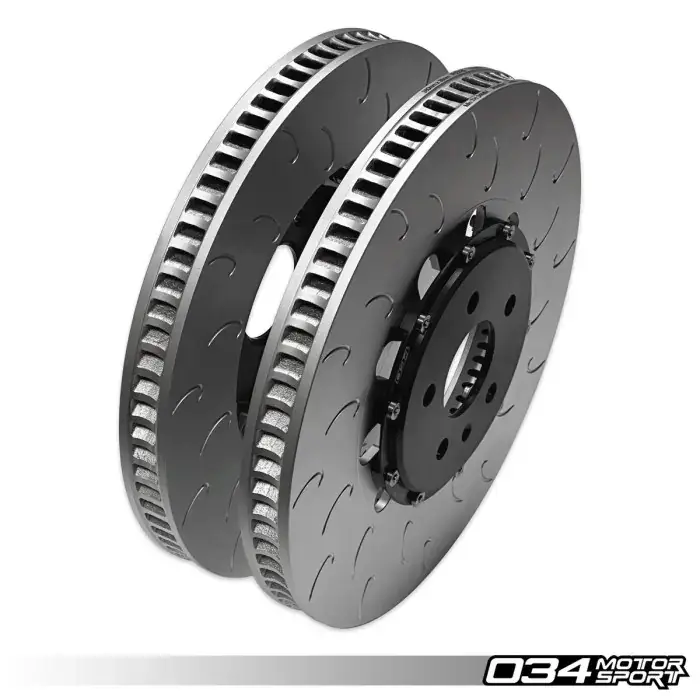

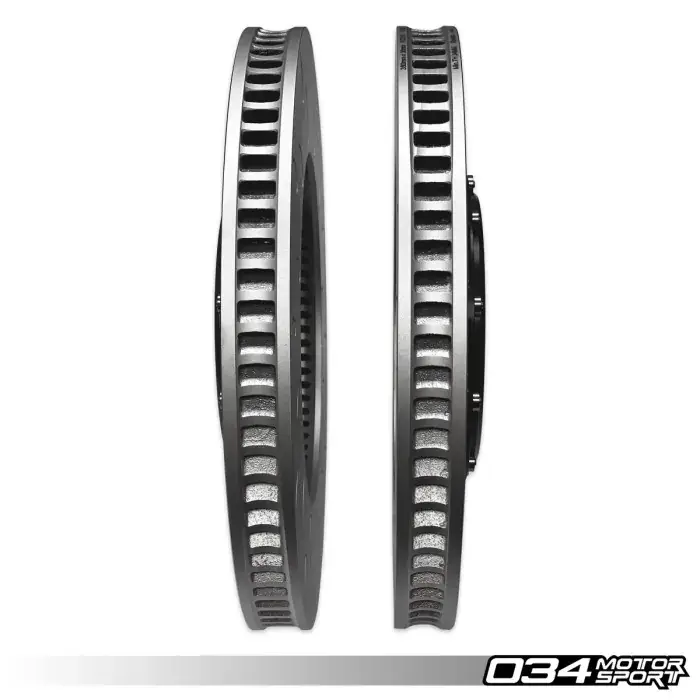

72 Curved Vanes Force Cooling Air through Brake Disc
Replaceable Rotor Rings Which Saves Money Over OEM Replacement in the Long Run
Lower Long-term Maintenance Cost
WHAT'S INCLUDED:
380mmx36mm Left Rotor
380mmx36mm Right Rotor
Installation and Break-in Instruction Sheets
OE PART INTERCHANGE:
4H0 615 301 AB
The 034Motorsport 380mmx36mm 2-Piece Floating Front Brake Rotor Upgrade Kit for the Audi B8.5 SQ5 is a complete replacement brake rotor kit, designed to work flawlessly with the factory front calipers found on the Audi B8.5 SQ5.
Weighing in at approximately 28.65lbs, our lightweight design retains proper thermal mass in the rings to adequately capture heat, while utilizing 72 directionally curved vanes to forcefully flow cool air through the rotor to dissipate heat.
The central hat portion of the 034Motorsport rotor is made of 6061-T6 aircraft specification aluminum. The disc is constructed out of a proprietary metal alloy that can withstand immense braking temperatures while holding form allowing hard street use and long days at the track allowing you to drive versus working on the car. From the factory, the same rotor is used on both sides of the SQ5, leading to one side having incorrect venting and cooling effects. The 034Motorsport 2-Piece Floating Front Brake Rotor Upgrade Kit utilizes 72 directionally curved vanes properly oriented for each side of the vehicle to forcefully flow cool air through both rotors to dissipate heat equally.
The face of the rotor utilizes J-Slot slots to clean the pad and surface of contaminants and allows hot pad outgassing, all while reducing overall braking noise compared to a traditional slotted rotor.
The rotor and hat have a floating mount system that utilizes high strength alloy steel bobbins. The pins take the load from braking actions while maintaining the axial and radial float between the hat and disc, allowing for safe expansion and contraction from heat.
FEATURES:
Lightweight Construction (28.65lb 034Motorsport Rotor), the Same Weight as OEM but With Improved Cooling and Metallurgy
Floating Bobbins, 2-Piece Design with radial and Lateral Expansion Capability, OE Only Allows Radial Expansion
Aerospace Grade Aluminum Hats
CM-250 Special Alloy Rotor Rings Designed Specifically for Hard Street and Track Use, OE Replacement Rotors Can Warm Under These Conditions
J-slotted Friction Face
OEM Fitment & Functionality
72 Curved Vanes Force Cooling Air through Brake Disc
Replaceable Rotor Rings Which Saves Money Over OEM Replacement in the Long Run
Lower Long-term Maintenance Cost
WHAT'S INCLUDED:
380mmx36mm Left Rotor
380mmx36mm Right Rotor
Installation and Break-in Instruction Sheets
OE PART INTERCHANGE:
4H0 615 301 AB
