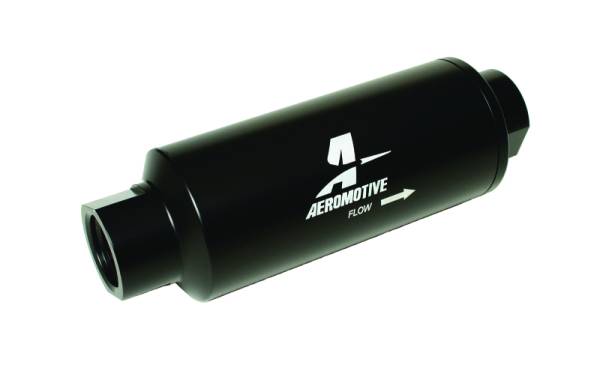

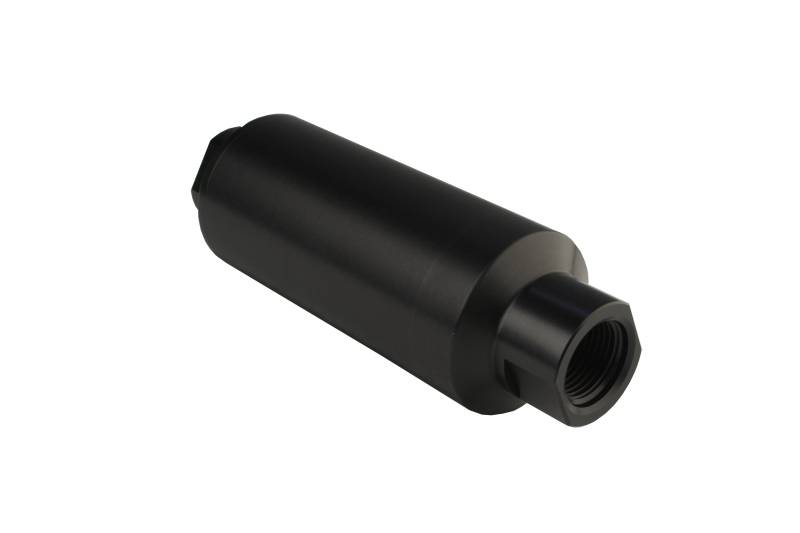

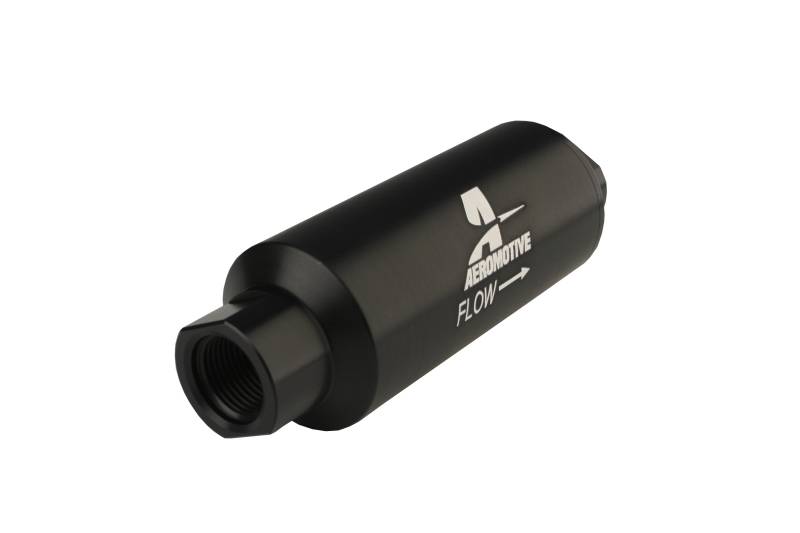

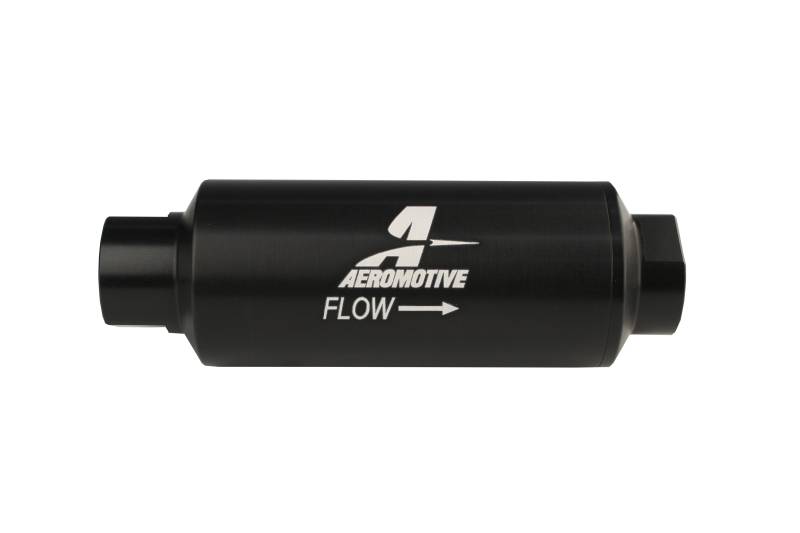

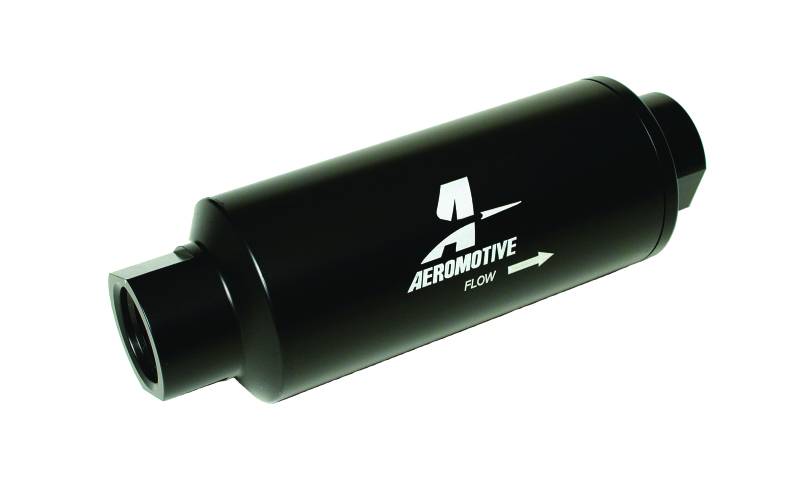

Aeromotive Marine AN-12 Fuel Filter - 100 Micron - SS Element - 12309

Fuel Filter

SKU: 12309

High-flow, 100-micron stainless steel (coarse) cleanable element. Flows 2,000 lb/hr with a pressure drop of less than .15 PSI. ORB-12 ports.

Pricing: $339.95

Description
Details
Shipping
Documents
Reviews

Description

Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.

Pro Series fuel filter
marine line filter
indestructible electoless nickel finish

Details

SKU: 12309
Item #: 12309
UPC #: 684980002041
Brand: Aeromotive
End 2 Gender: Female
Prop 65 (C, R or CR): CR
Fuel Filter Style: Inline
Mounting Bracket Included: No
Filter Element Included: Yes
Prop 65 - Short Label: P65_Warning_Chromium.jpg
Fuel Type: All Fuels
Mounting Type: External
Filter Element Material: Stainless steel mesh
Prop 65 Flag: Yes
Gasket Or Seal Included: Yes
Outlet Attachment: Female Thread
Filter Housing Color: Black
Quantity: Sold individually.
Housing Material: Aluminum
Outlet Outside Diameter: AN-12
Filter Housing Diameter: 2.5
Shape: Straight
Inlet Attachment: Female Thread
Outlet Quantity: 1
Filter Housing Finish: Anodized
Smallest Particle Filtered: 100 microns
Inlet Outside Diameter: AN-12
Outlet Size: AN-12
Filter Housing Length: 7
Universal or Specific Fit: Universal
Inlet Quantity: 1
Outside Diameter: 2.5
Filter Housing Material: Billet Aluminum
Inlet Size: AN-12
Clamps Included: No
Outside Diameter (In): 2.5
Fitting Type: AN-12
Length: 7
Color: Black
Overall Length: 7
Fittings Included: No
Maximum Fuel Pressure (psi): 70
End 1 Gender: Female
Overall Length (In): 7
Flow Rate: 2000
Micron Rating: 100
Condition: New

Shipping Information

Requires Shipping: Item Requires Shipping
Weight: 1.7 lbs.
Package Dimensions: W5.0000” x H4.2000” x L8.6000”
Shipping: Free Shipping
