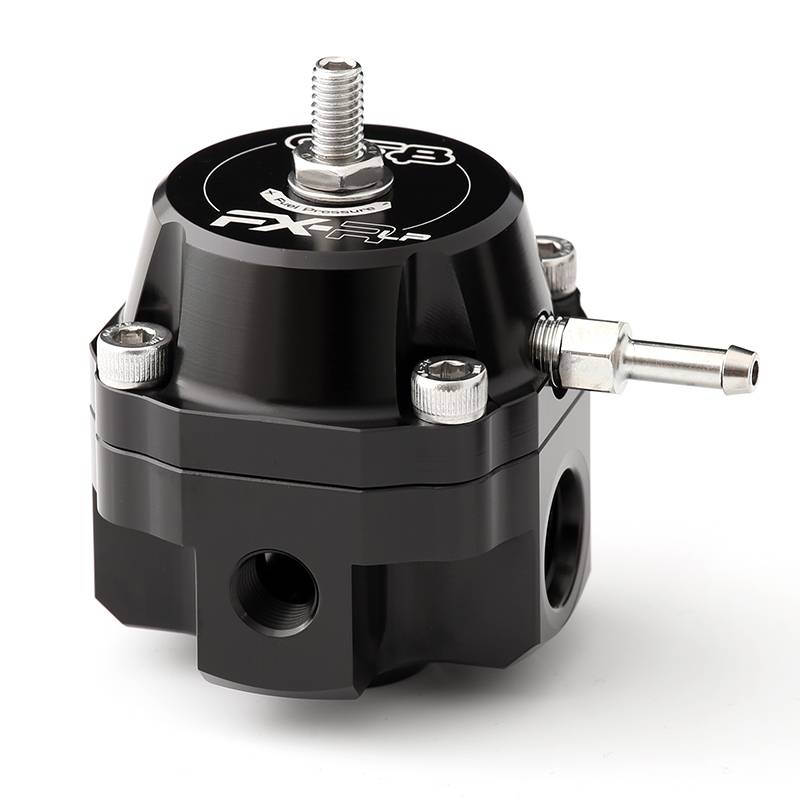

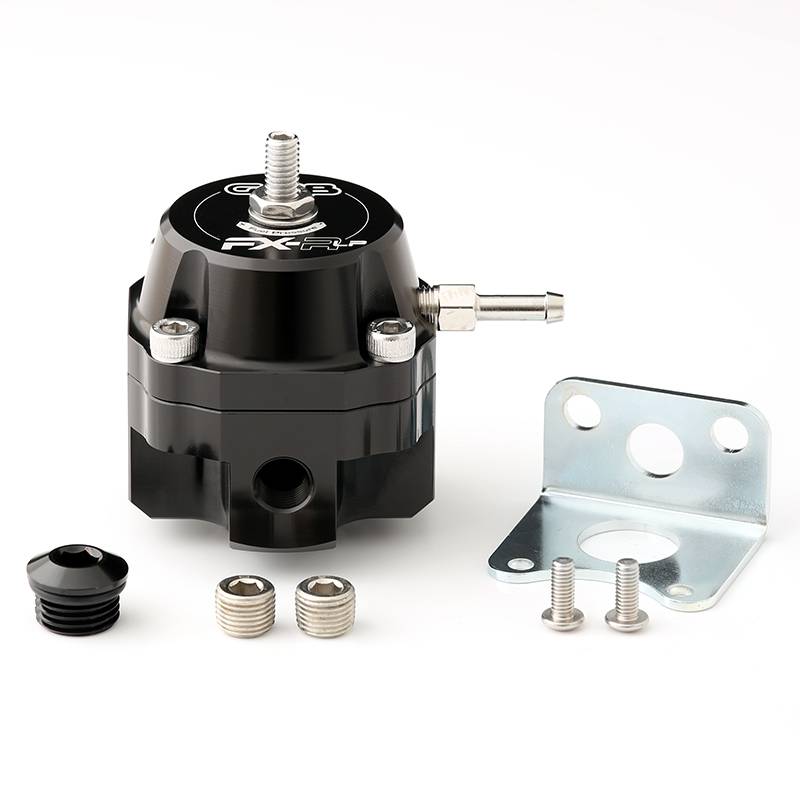

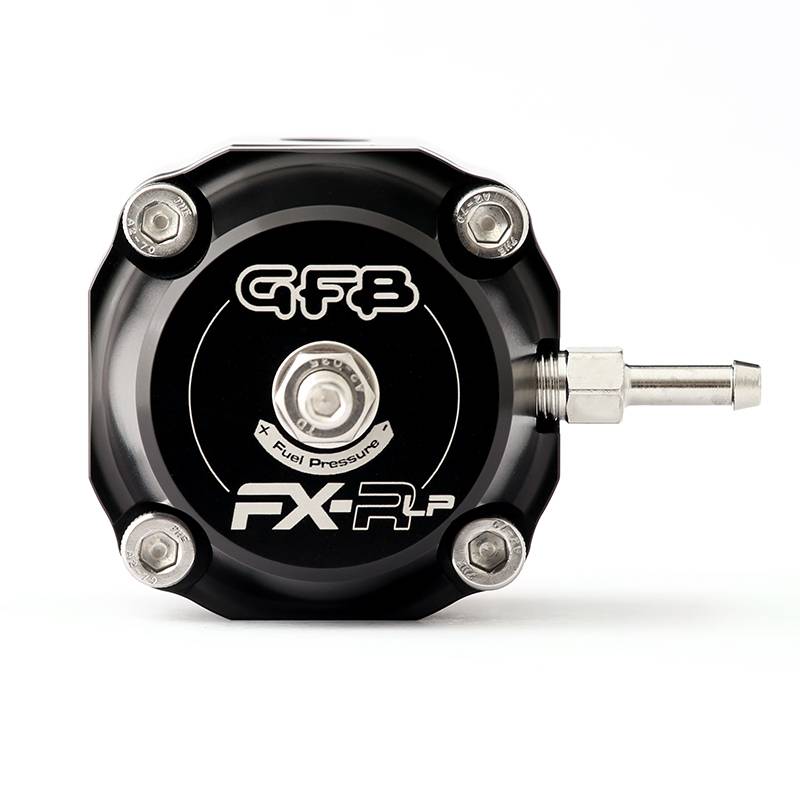

GFB Go Fast Bits 8060-LP GFB FX-R Low Pressure Fuel Regulator w/6AN Ports

GFB's 8060-LP FX-R Low Pressure Fuel Regulator is adjustable from 3-12psi and features two -6AN ORB (O-Ring Boss) inlet ports, two 1/8" NPT gauge ports, and, one -6AN ORB outlet port.

Low Pressure Fuel Regulator for Carburetor Applications

For engines that use an EFI type pump with a carburetor, the GFB FX-R LP bypass regulator is the perfect solution for fuel delivery. Dual -6AN inlet ports offer installation flexibility, whilst the two 1/8" NPT gauge ports allow the use of both a mechanical gauge and electronic pressure sensor if required. The FX-R LP features a Teflon valve seat for superior fuel pressure retention after shutdown, leading to easier starting. We also use a double layer reinforced diaphragm and stainless steel valve that offers a burst strength in excess of 500psi!

Features and Benefits: • Suitable for unleaded, ethanol, and diesel fuels • Teflon Co Polymer Seat with stainless valve • Fully Sealed Upper Boost Vacuum Reference Chamber • Multiple Body Ports Allow for A Large Variety of Setup Options

Application Summary: Universal
