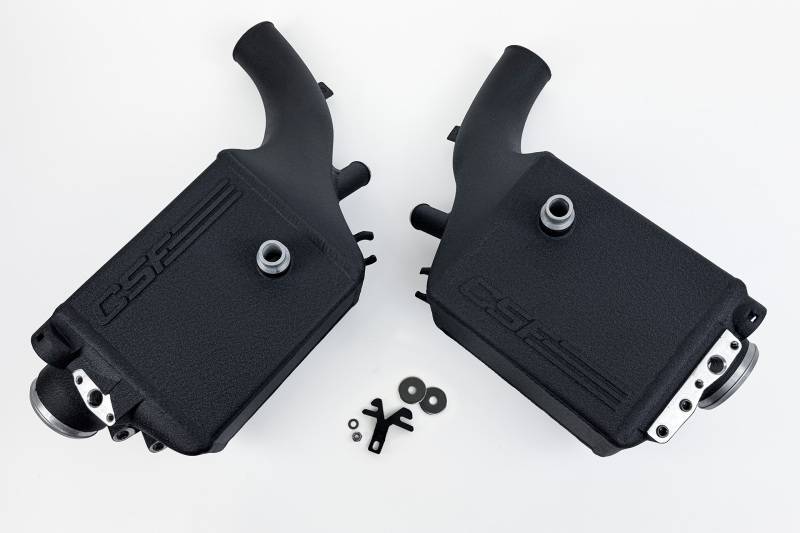

CSF Cooling - Racing & High Performance Division 8351 CSF 2025+ BMW G90 M5 / G99 M5 Touring Charge Air Cooler - Fits 2025-2026 BMW M5 Touring, M5

The CSF Charge-Air-Coolers boast a nearly 100% larger core size than factory per side. This greatly increases the capacity for heat transfer from the hot charge air from your G90 M5 or G99 M5 Touring's Turbos.

BMW G9X M5 High-Performance Charge-Air-Coolers

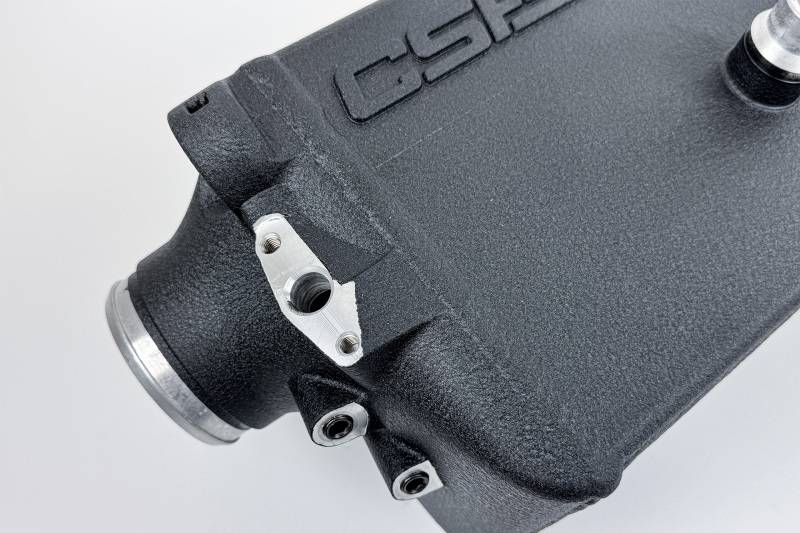

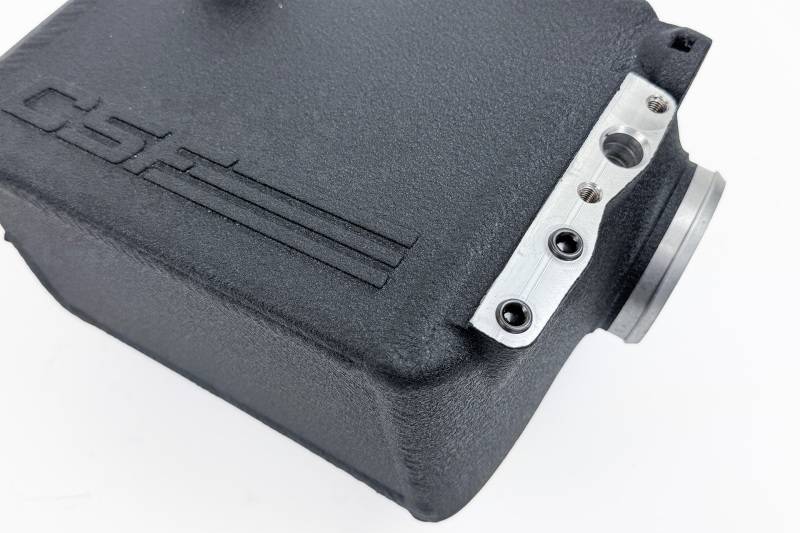

CSF originally designed the BMW S63 Charge-Air-Coolers for the F9X M5/M6. Over five hundred of these Intercooler kits have been sold with many of them on 1000+ hp builds. Due to the popularity and success of these previous kits, it wasn't long before our dealers and tuning partners got their hands on these new M5s. With a little R&D/Test fitting help from the likes of IND Distribution, Evolve/Eventuri, and R44 Performance, CSF quickly developed a new drop-in fit kit for the G90 and G99 M5.; Integrated dual 1/8 NPT ports are located on both outlet side air tanks for quick and easy installation of aftermarket methanol/nitrous injection systems. The positioning of these ports have been carefully designed to place the injection system directly into the post-intercooled charge-air stream for maximum performance.; Real world testing on these coolers was originally performed on a Stage 3 F90 M5 with 900whp. While the vehicles differ slightly, the overall performance gains/results will be similar. These coolers are currently installed on the top 5 world's fastest S63 powered M cars. This includes Mr. Vanos 1200+ HP F90 M5. The G9X kit was dyno tested at 1000HP with just a tune prior to launch.; The CSF Charge-Air-Cooler Cores are 100% larger in volume than the factory coolers. CFD analysis and testing was used to design the cores ensuring optimal performance as well as perfect fitment. Both coolers come with OEM-Style "Quick Connect" water connections as well as sensor ports for fast and easy installation. You can read the full press release of the full press release of the CSF #8178 Coolers for more details & performance data.; The weak OEM crimped-on plastic end tanks have been replaced with CSF's larger, CFD analyzed, 100% TIG-welded cast end tanks. CSF also integrated the charge pipe into the design of the top end tank eliminating the glued-on factory plastic charge pipes. This single piece cast design creates a much stronger system that can handle much higher boost pressures.

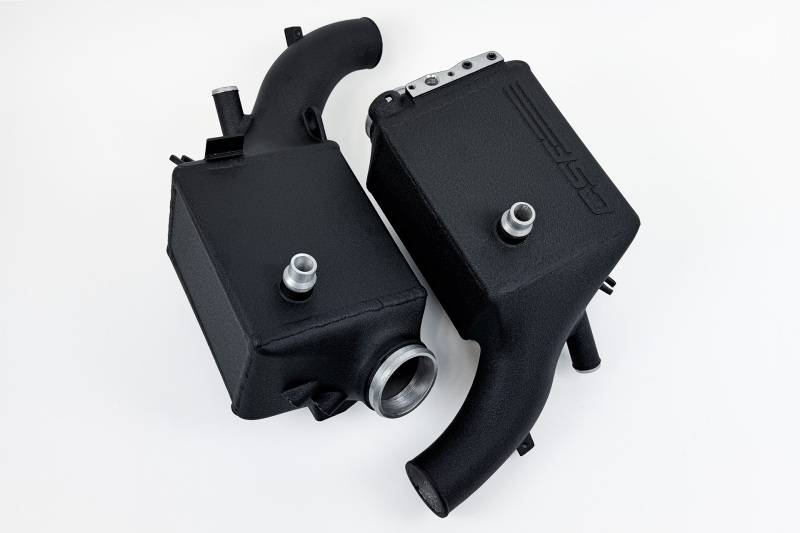

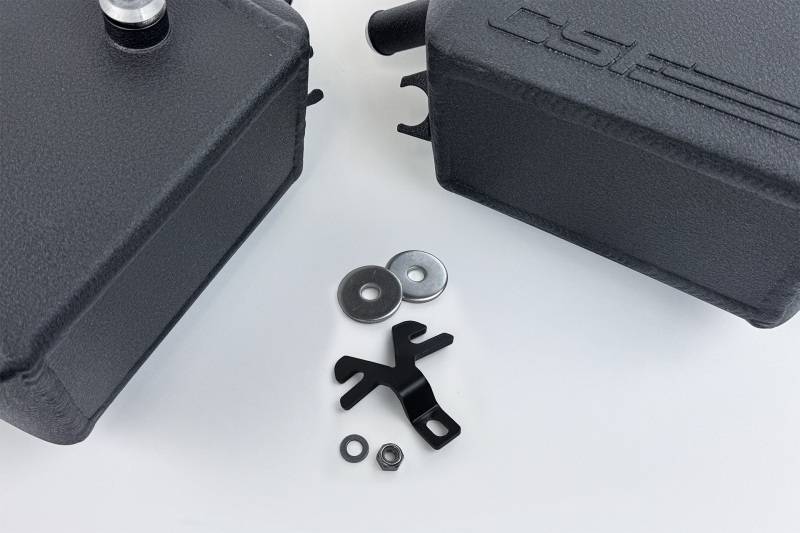

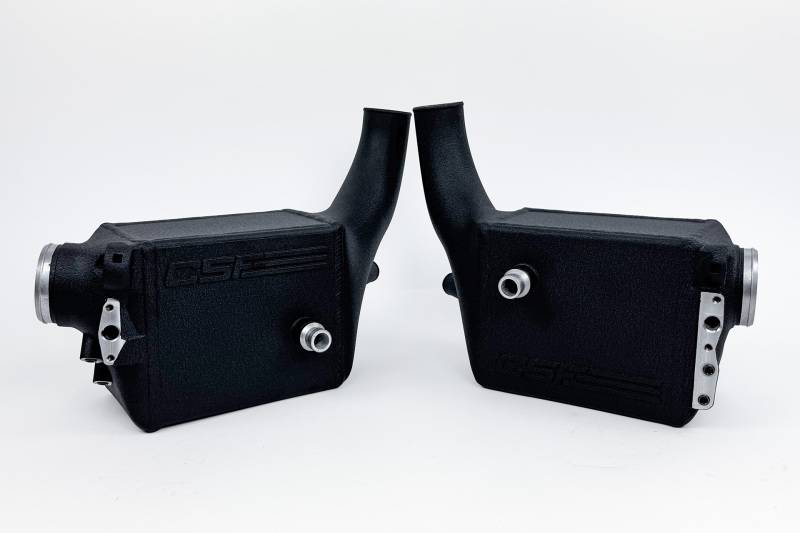

Features and Benefits: 100% Increase in Core Volume Per Each Charge Cooler Compared to the OEM Charge Air Coolers; 1-Piece Seamless Air Inlet End Tanks with Integrated Charge Pipes; Complete with OEM-Style "Quick Connect" Water Connections and Sensor Ports; Custom Designed CSF Liquid-To-Air Intercooler Core (CFD Analysis and Testing Completed to Ensure Optimal Performance); Designed with 3D Scanning and Rapid Prototype Technology to Ensure Precise Fitment and Maximum Surface Area Utilization; "Drop-In Fit" Design - Requires Minor Modification for optimal fitment - see fitment notes; Finished with a Professional "Crinkle Black" Powder-Coated Finish (CSF #8315) - Custom Powder-Coating Available (Inquire for More Details on Lead Time and Pricing); Integrated E85/Methanol Injection Ports Built into Air Outlet End Tank (Dual 1/8 NPT Ports Per Cooler); Lifetime Warranty; Significantly Reduces Intake Air Temperatures (IATs); Sold as a Complete Set with Left and Right Charge-Air Coolers + Installation Hardware

The CSF #8351 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
