AEM 30-2130-50 AEM 3.5 BAR MAP or 50 PSIA Stainless Steel Sensor Kit

Manifold Absolute Pressure Sensor

(0) Reviews: Write first review
30-2130-50
Availability:
Pricing: $154.75

Qty:
Free Shipping

Description

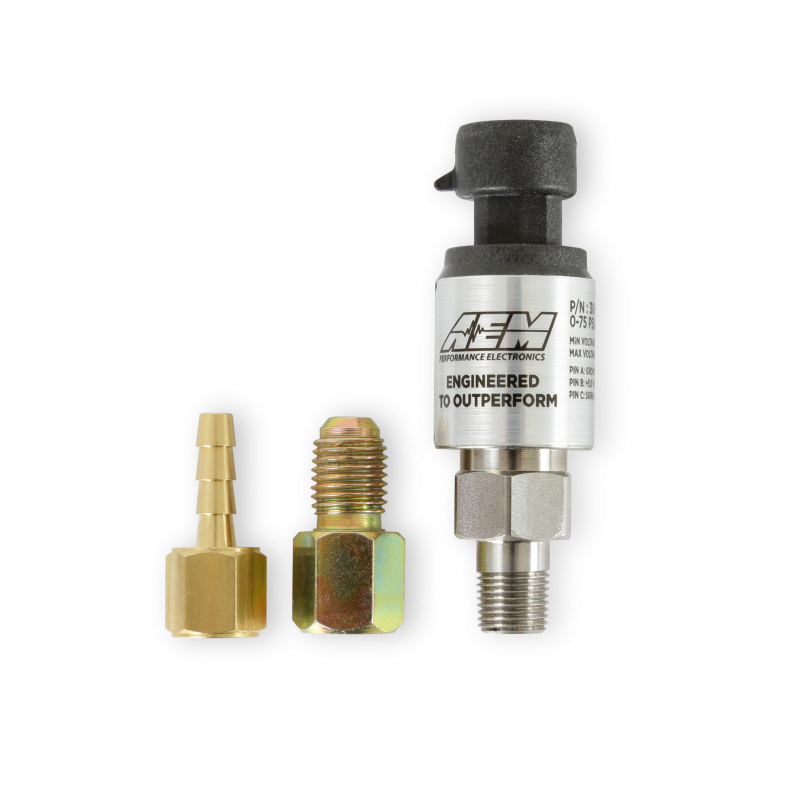

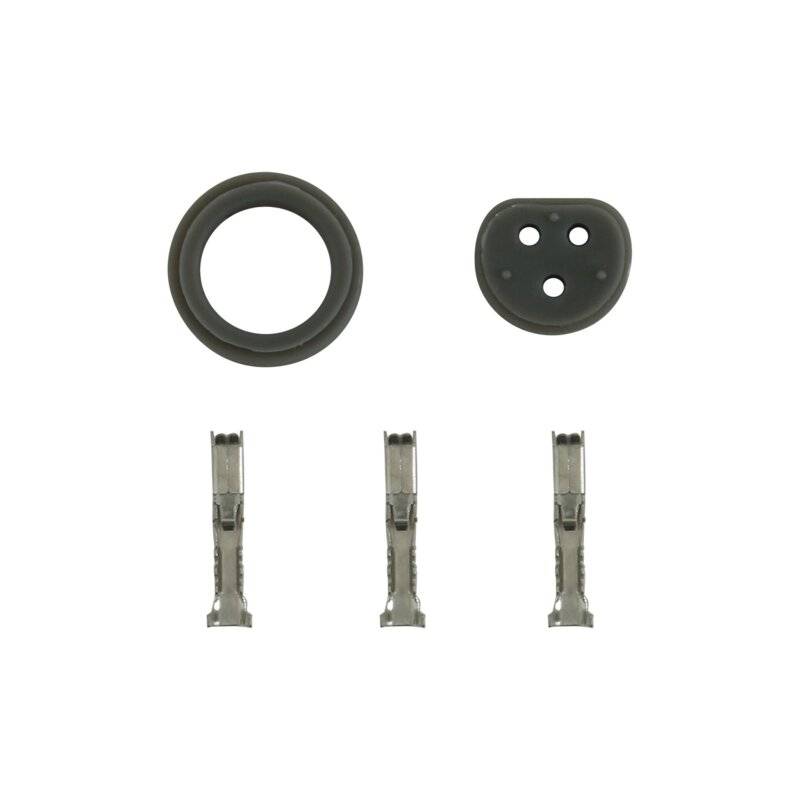

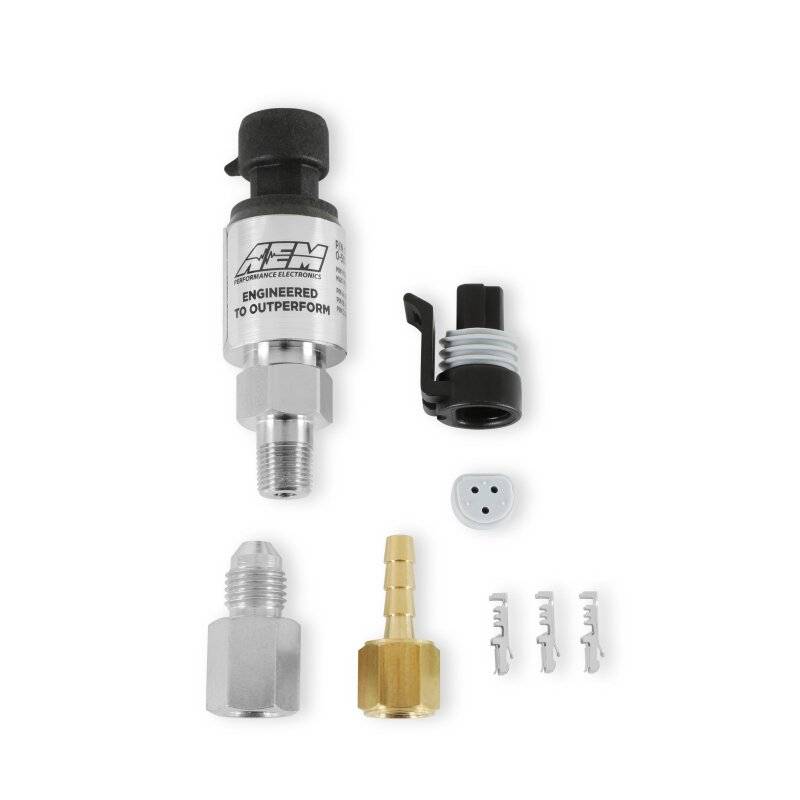

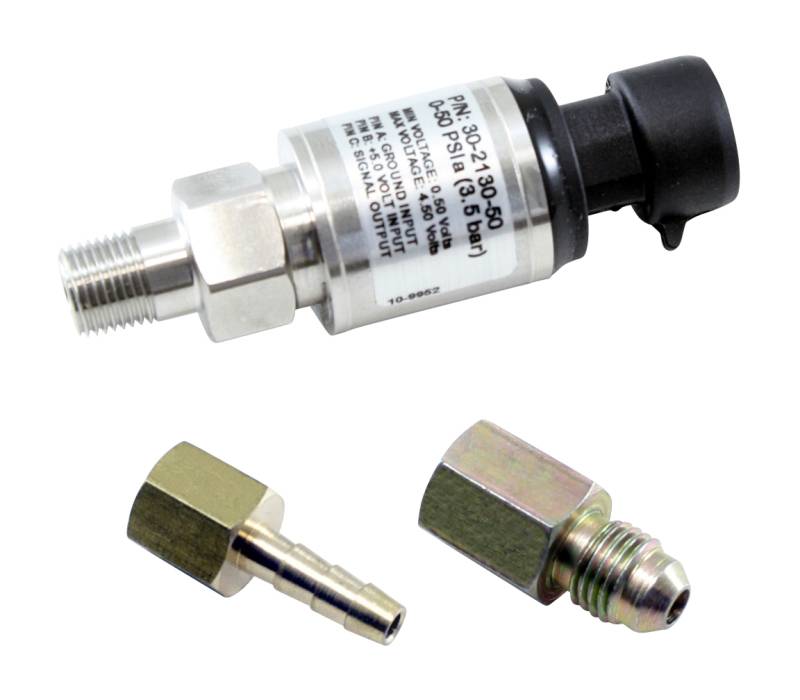

1/8 in. NPT Male Thread w/ -4 and 3/16 NPT Adapters; 50 PSIa or 3.5 Bar Stainless Sensor Kit, Stainless Steel Sensor Body, 1/8-inch NPT Male Thread, Includes 50 PSIa or 3.5 Bar Stainless Sensor, Connector, Pins, 1/8-inch NPT to -4 Adapter & 1/8-inch NPT to 3/16-inch Barb Adapter

AEM 3.5 Bar Stainless MAP Sensor Kit

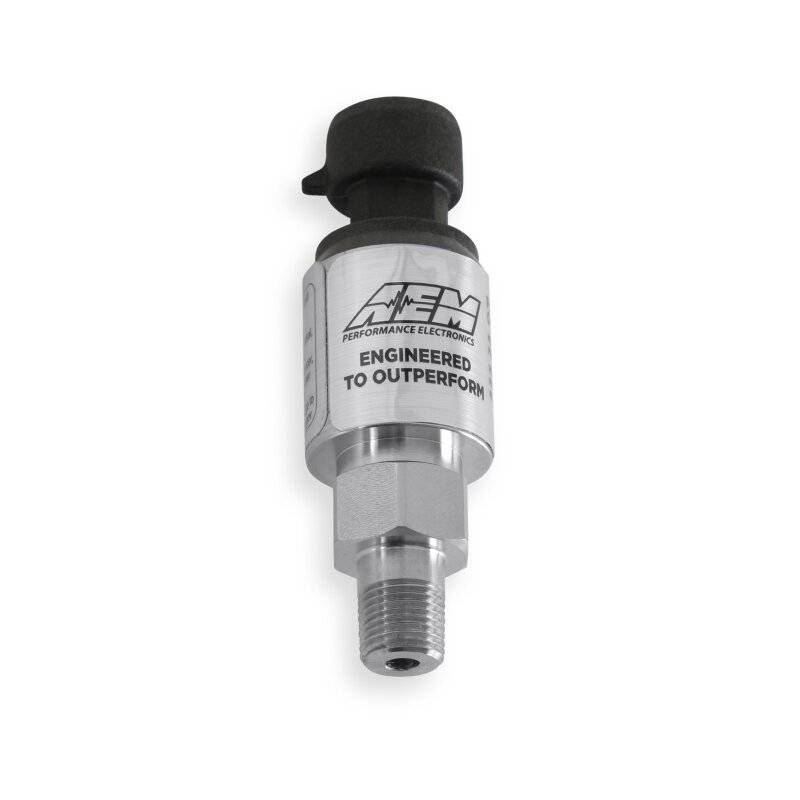

50 PSIa or 3.5 Bar Stainless Sensor Kit. Stainless Steel Sensor Body. 1/8 in NPT Male Thread. Includes: 50 PSIa or 3.5 Bar Stainless Sensor, Connector, Pins, 1/8 in NPT to -4 Adapter & 1/8 in NPT to 3/16 in Barb Adapter; Absolute (PSIa) Pressure Sensors; AEM offers high quality stainless steel PSIa sensors in 15 (1BAR), 30 (2BAR), 50 (3.5BAR), 75 (5BAR) and 100 (7BAR). PSIa is referenced to absolute zero. Absolute zero is the pressure measurement when all the pressure exerted by the atmosphere has been removed. The most common use for absolute pressure sensors is reading manifold pressure. PSIa pressure sensors are required if you wish to measure vacuum. A PSIa sensor will read about 14.7 PSI when the sensing element is exposed to atmospheric pressure at sea level however they can be recalibrated to read zero at atmospheric and a negative number at values less than atmospheric pressure.; Brass Pressure Sensor = Ruler; Example: Brass Pressure Sensor used for a Boost Gauge - Reference/Information for knowing manifold pressure, not for ECU calibration.; Example: MAP Sensor information for the ECU - Calibration/crucial information for the ECU.; Stainless Pressure Sensor = Caliper; There are many different tools that can be used for measurement, but the degree of accuracy is dependent upon the tool. For example, a ruler can measure distance with a good degree of accuracy, but for a more precise measurement a caliper should be used. The difference between a brass pressure sensor and a stainless steel pressure sensor is similar if we think about it in these terms:; Use a Brass Pressure Sensor where you need a good reference to what pressure is being seen.; Use a SS Pressure Sensor where you need exact details of the pressure.; Which Pressure Sensor is right for you?

Features and Benefits: -Accurate to 1% margin of error.; -Includes 1/8"NPT to -4 AN adapter and barbed fitting.; -Stainless steel body, with high quality sealing which makes it impervious to fluids.; -Weather resistant connector and pins included

10% OFF Installation

Save 10% off installation if you're a local to Las Vegas, NV by visiting our local shop, Eurotek Tuning. Call 888-967-5634 to make an appointment today.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 0.3 lbs.
  • W3.2000” x H2.4000” x L4.6000”
  • Free Shipping
