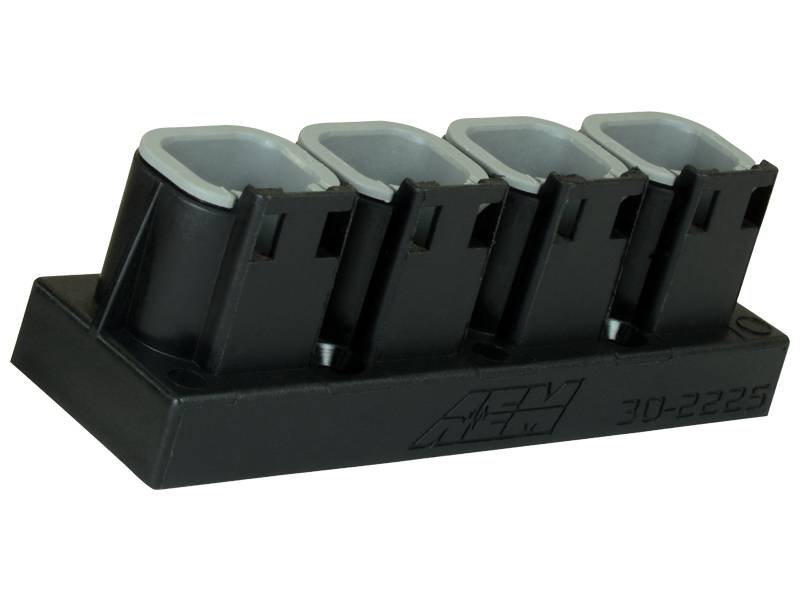

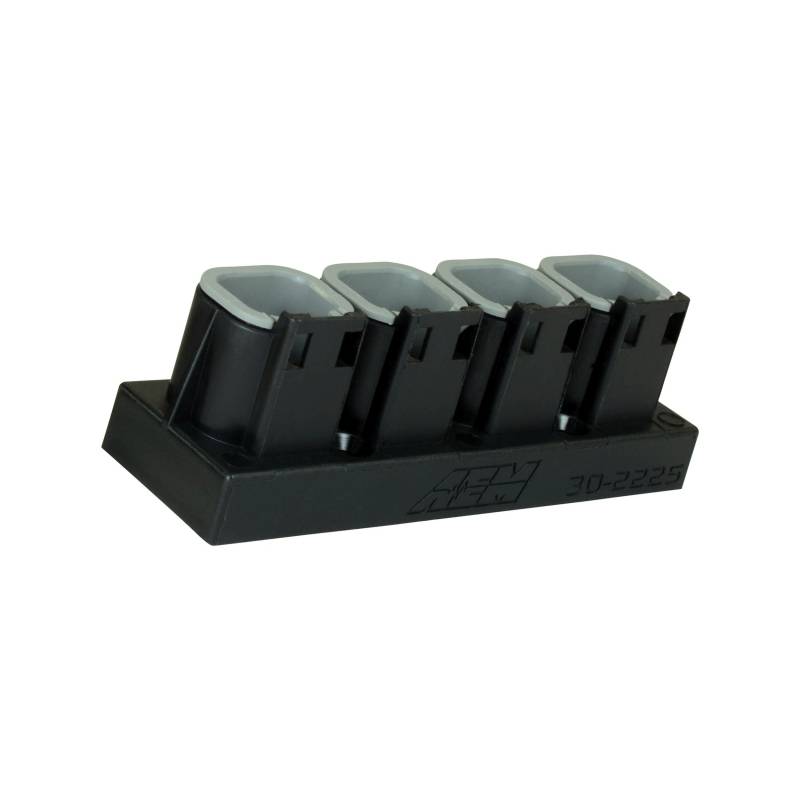

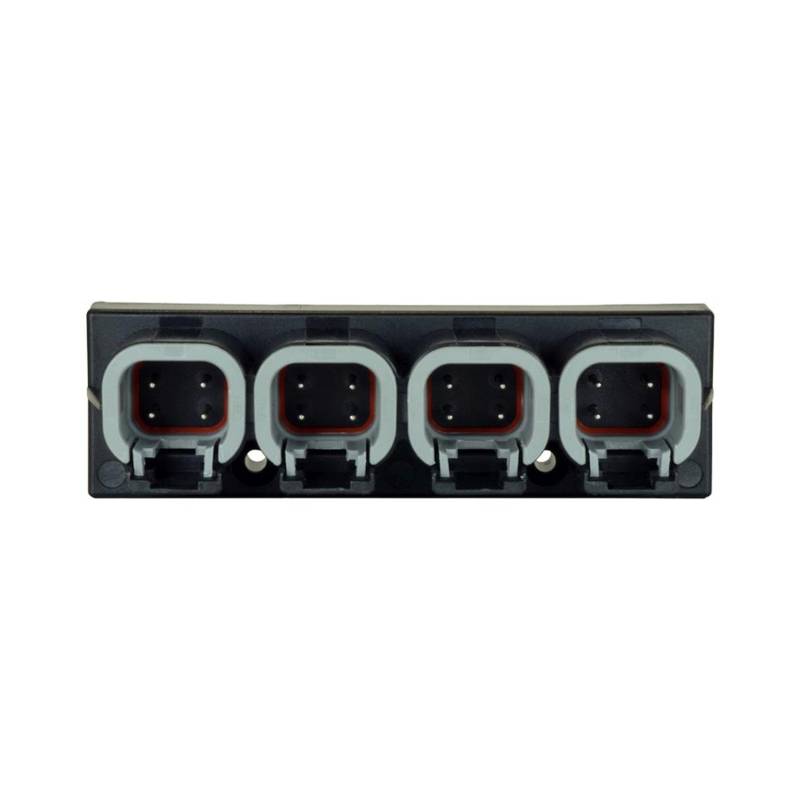

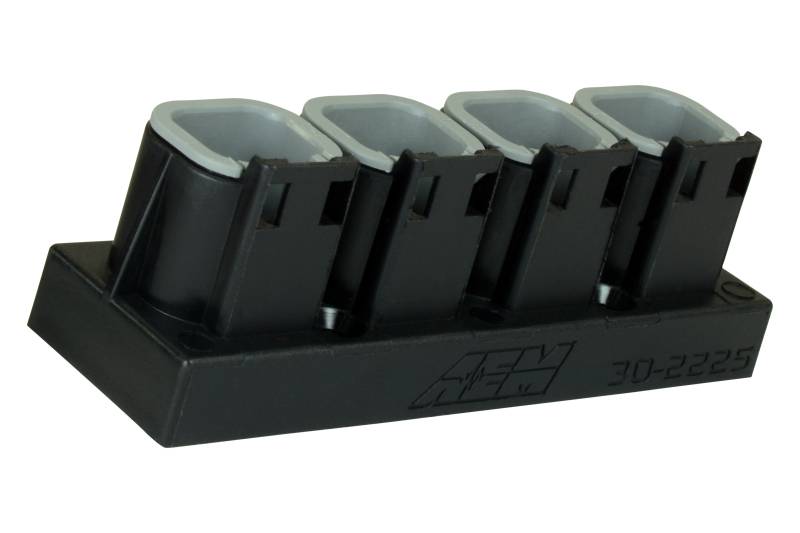

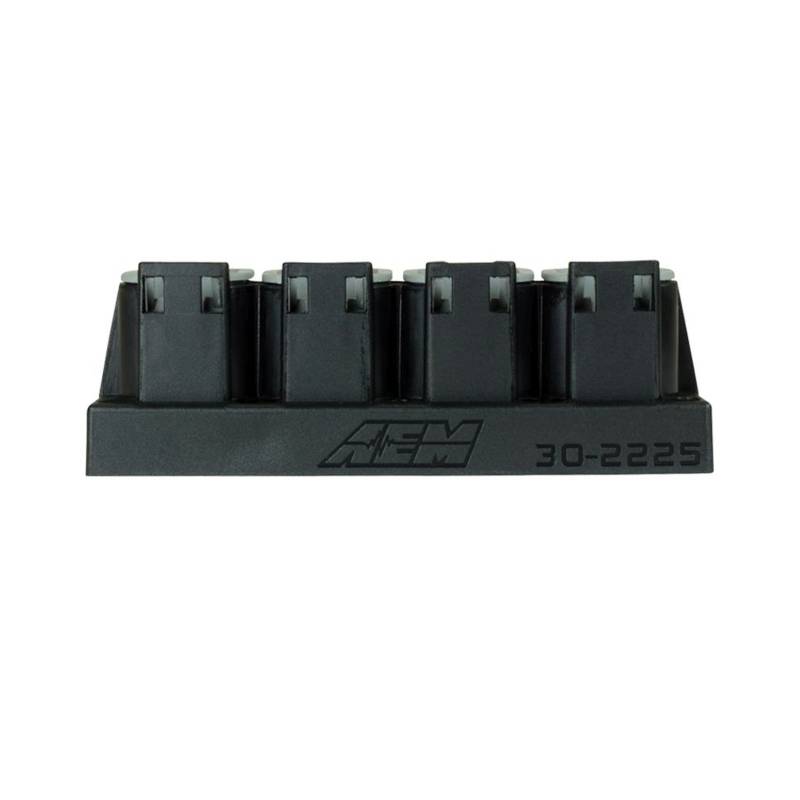

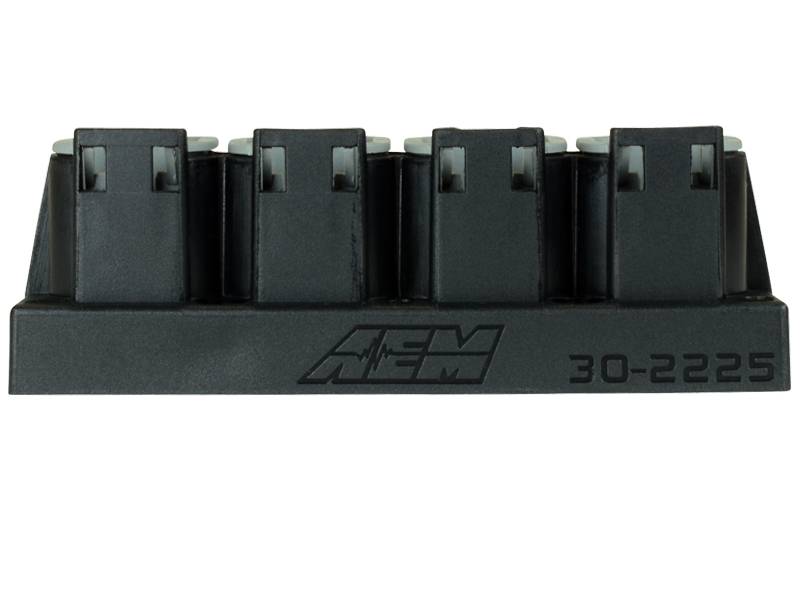

AEM 30-2225 AEM 4 Port AEMnet Can Hub

Engine Wiring Harness Connector

(0) Reviews: Write first review
30-2225
Availability:
Pricing: $91.75

Qty:

Description

4 Port AEMnet CAN Hub eliminates the need to daisy-chain multiple AEMnet devices together using “Y” cables, which eliminates wiring clutter and keeps everything on the bus organized in one central location.; 4 Port AEMnet CAN Hub eliminates the need to daisy-chain multiple AEMnet devices together using “Y” cables, which eliminates wiring clutter and keeps everything on the bus organized in one central location.; 4 Port Deutsch DTM

4 Port AEMnet CAN Hub eliminates the need to daisy-chain multiple AEMnet devices; AEM AEMnet CAN Hub

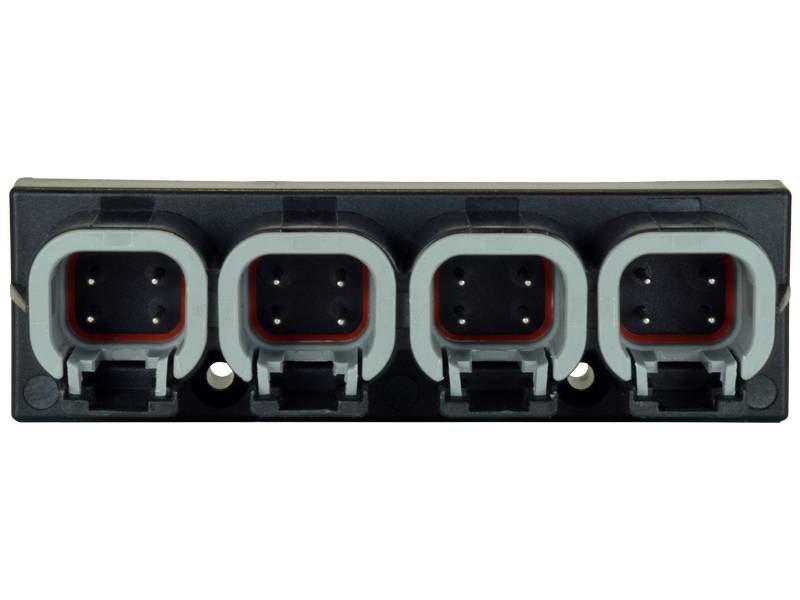

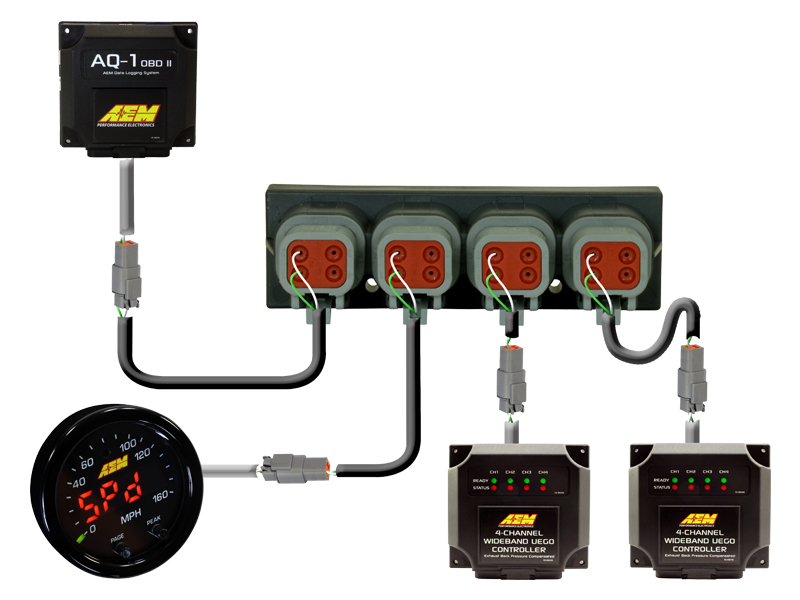

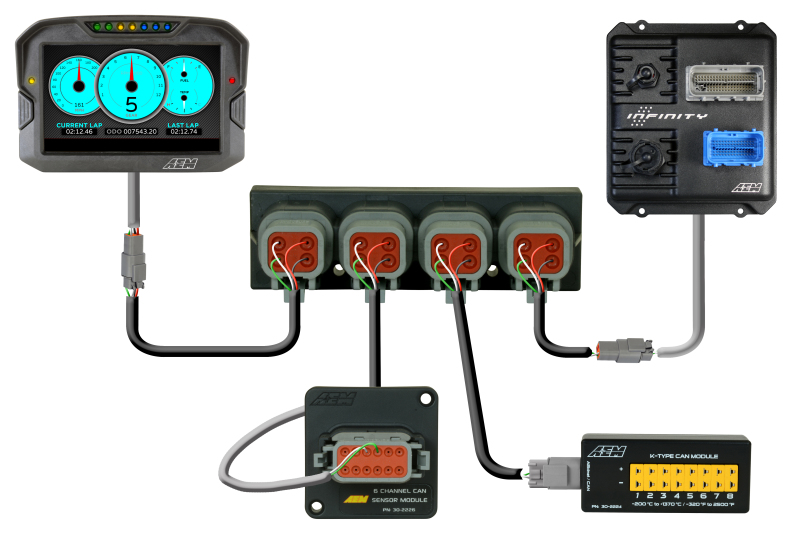

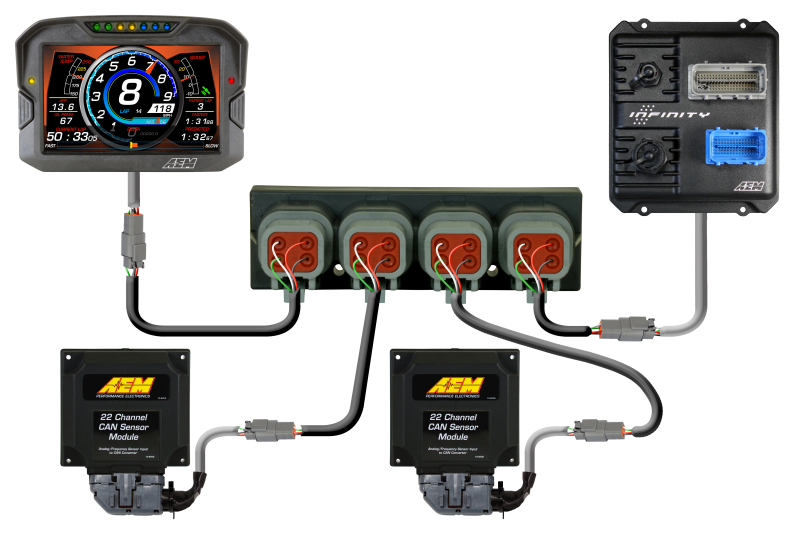

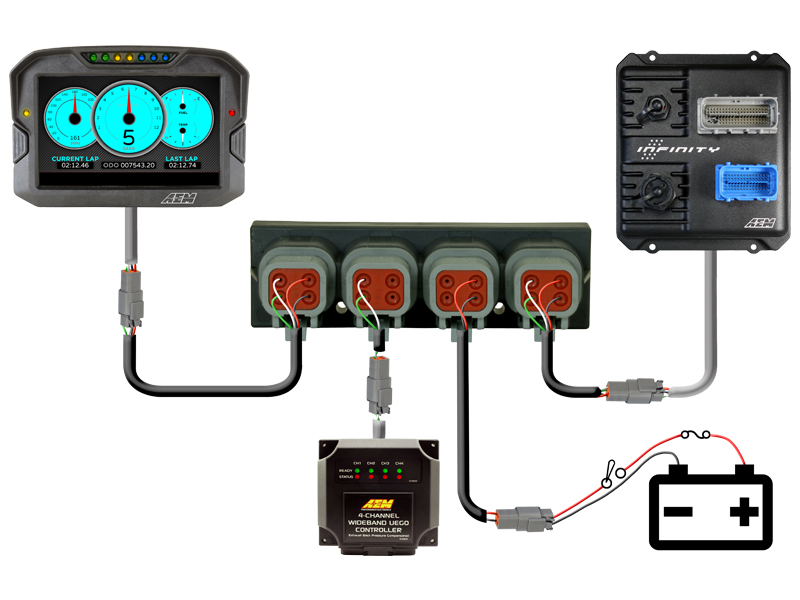

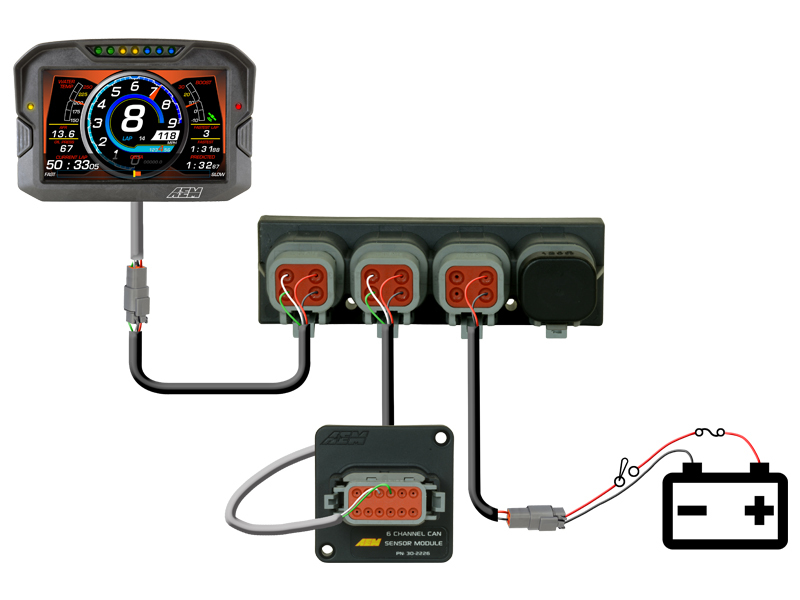

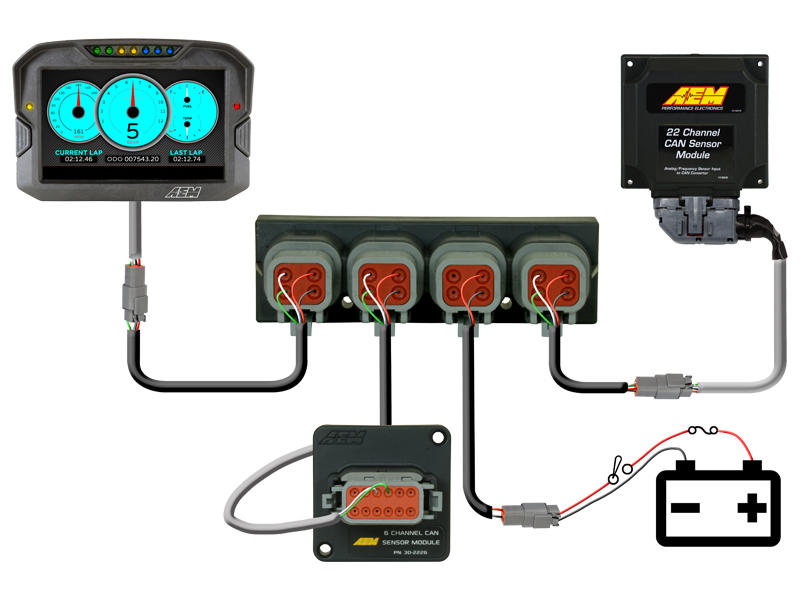

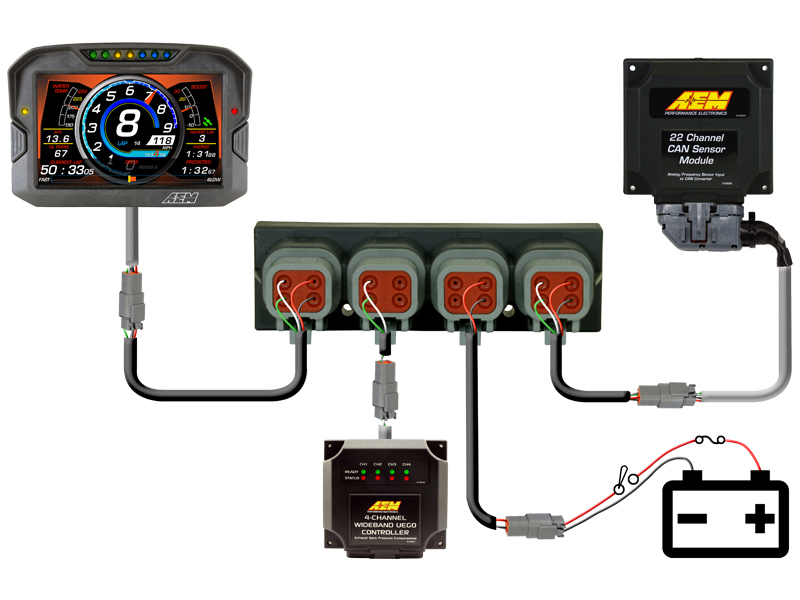

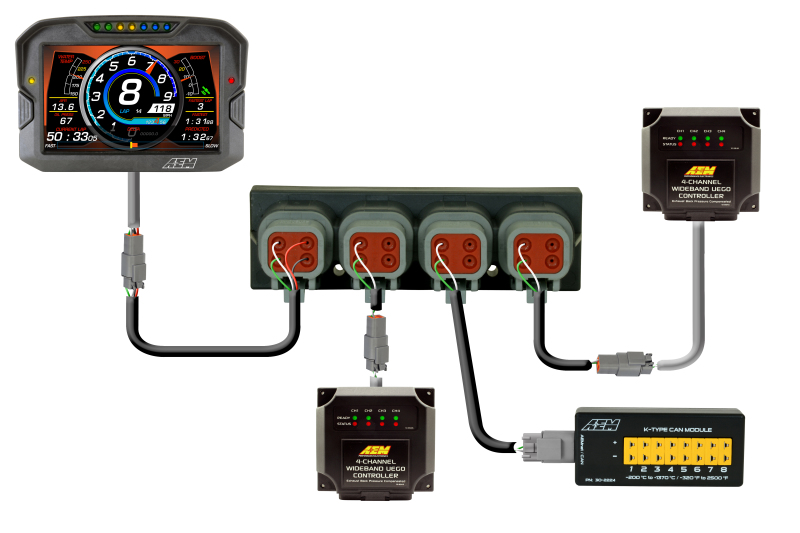

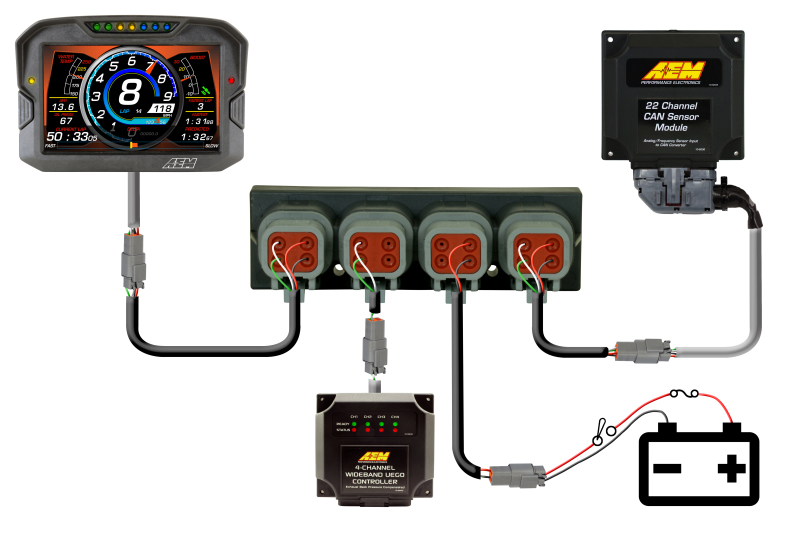

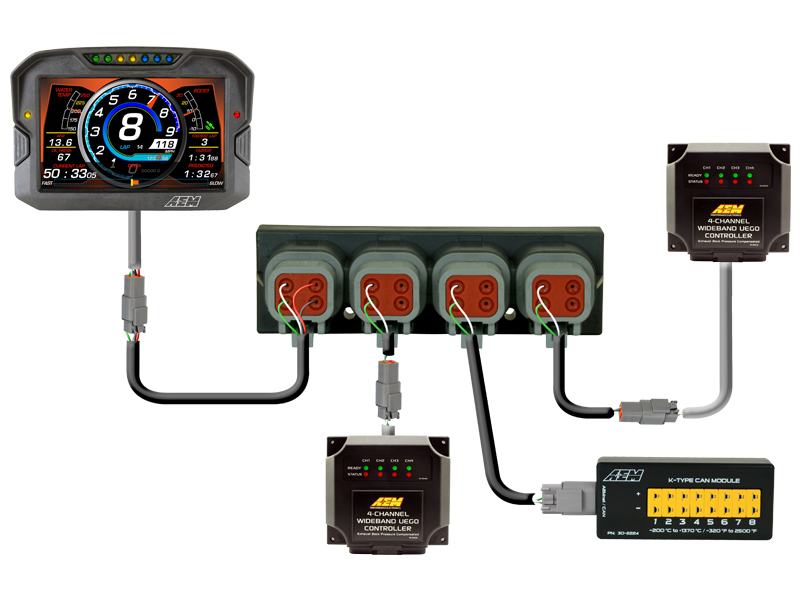

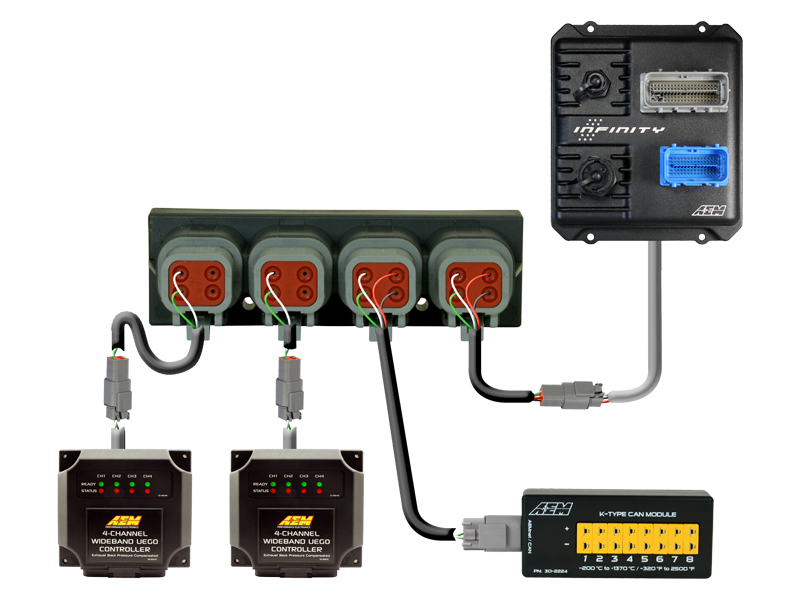

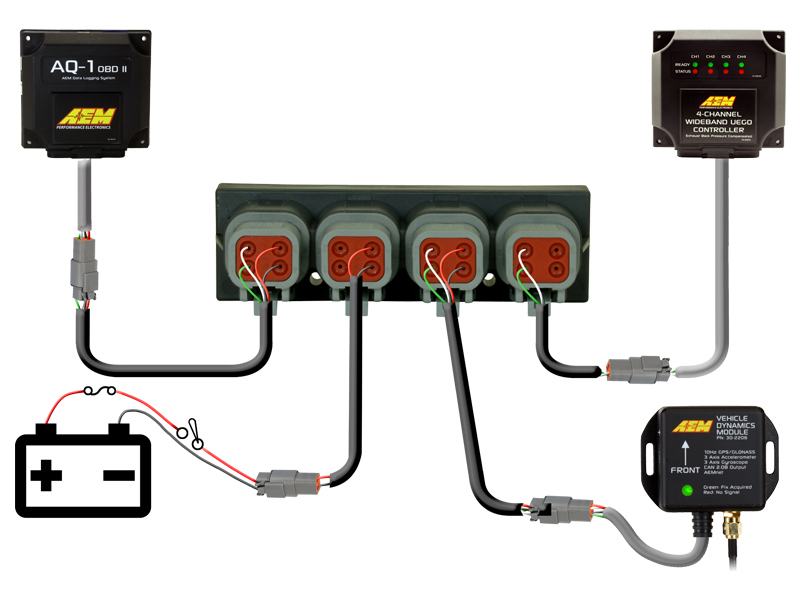

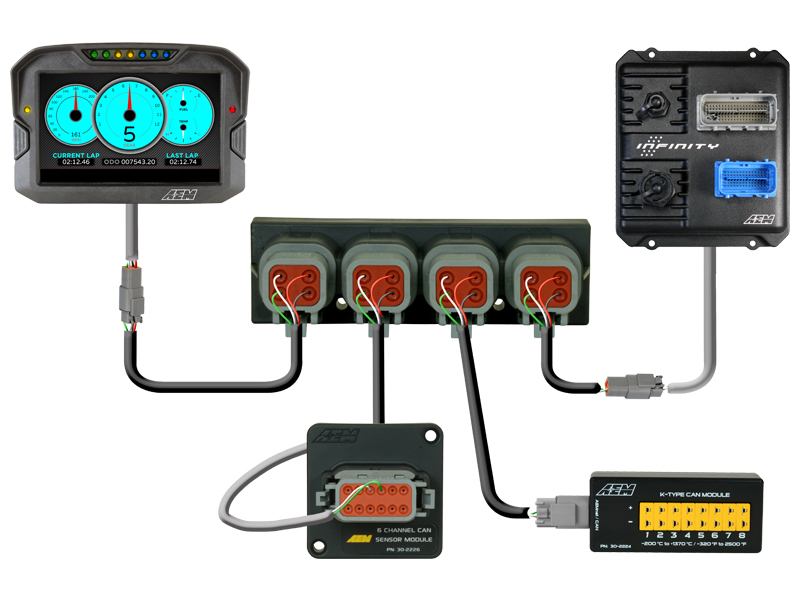

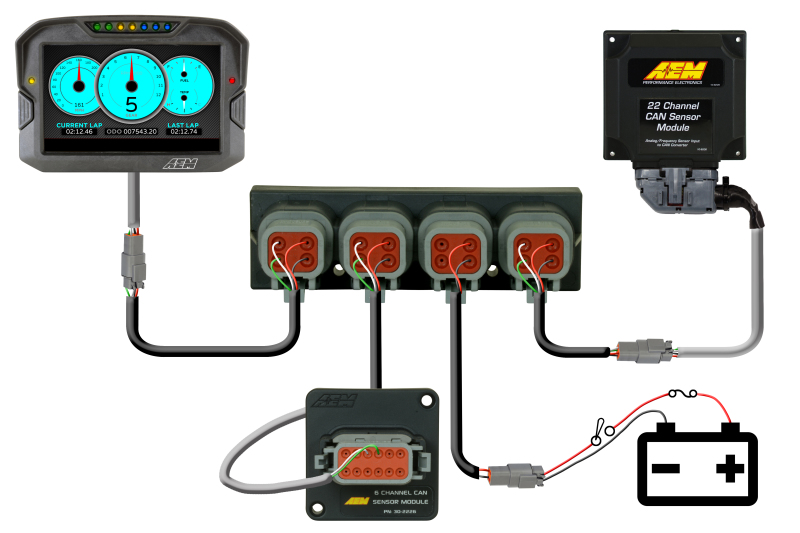

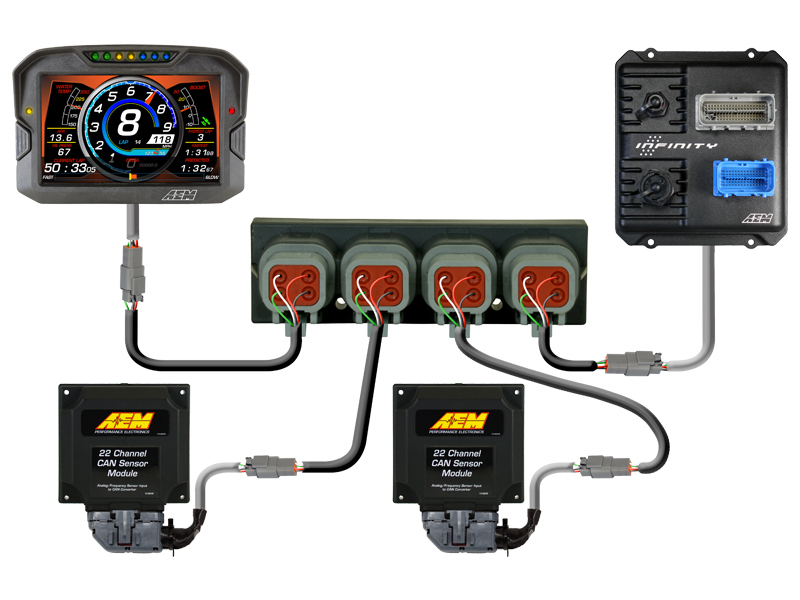

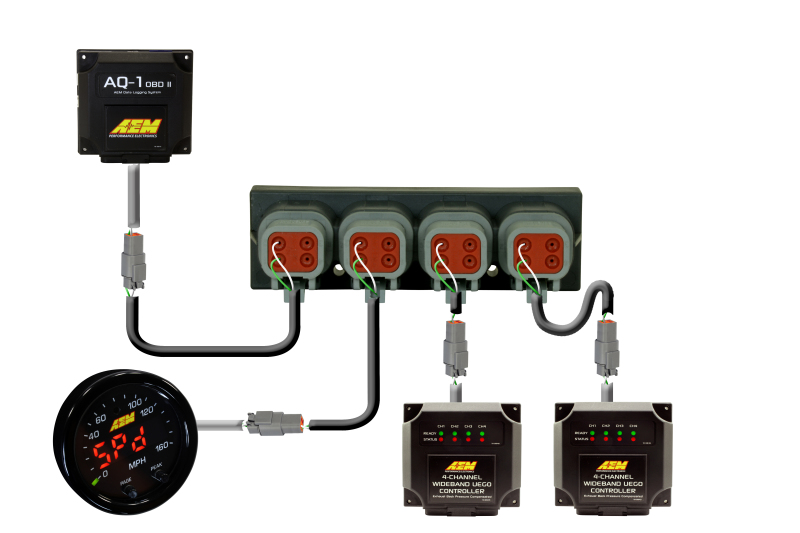

AEMnet buses must be properly terminated using termination resistors on each end of the port (120 Ohms each, see Specs tab for AEM Devices with termination resistors). AEM offers DTM-style 4-pin termination plugs that simplify this process if you have a device that does not have an integrated or selectable termination resistor.; AEM's 4 Port AEMnet CAN Hub is the perfect solution for connecting multiple AEMnet CAN bus-enabled devices together. This convenient Module provides a central docking station for four AEMnet cables via 4-way DTM-style housings and can provide power to all of the connected devices on the Hub through a single port (3A max current capacity - NOT for use to power UEGO sensor heaters). Users can daisy-chain two 4 Port AEMnet CAN Hubs together for a total of 6 connected devices.; The 4 Port CAN hub is IP67-rated and can be installed in the engine compartment. Mounting hardware and instructions are included.

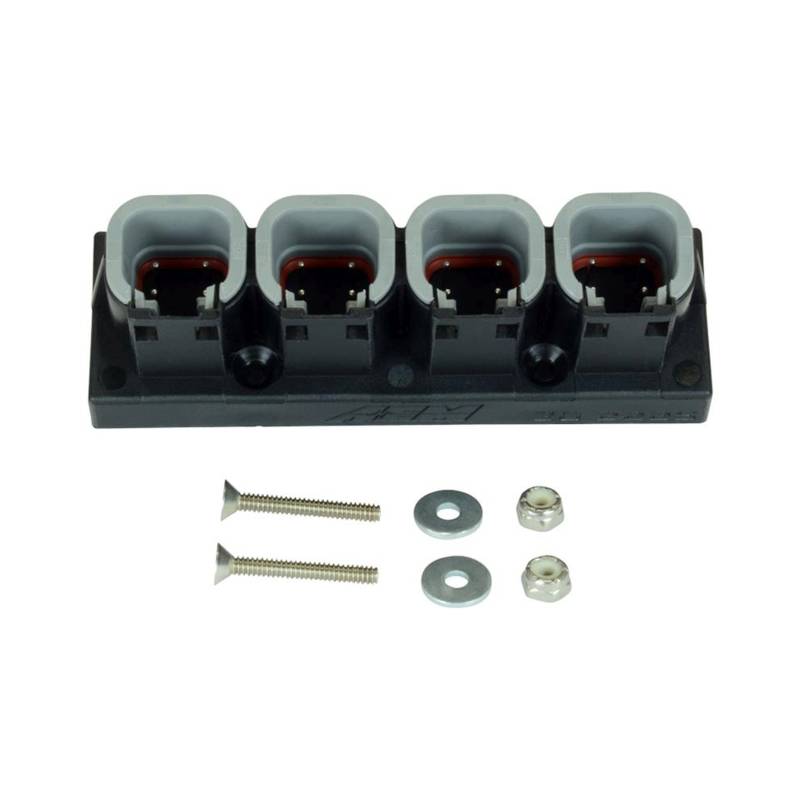

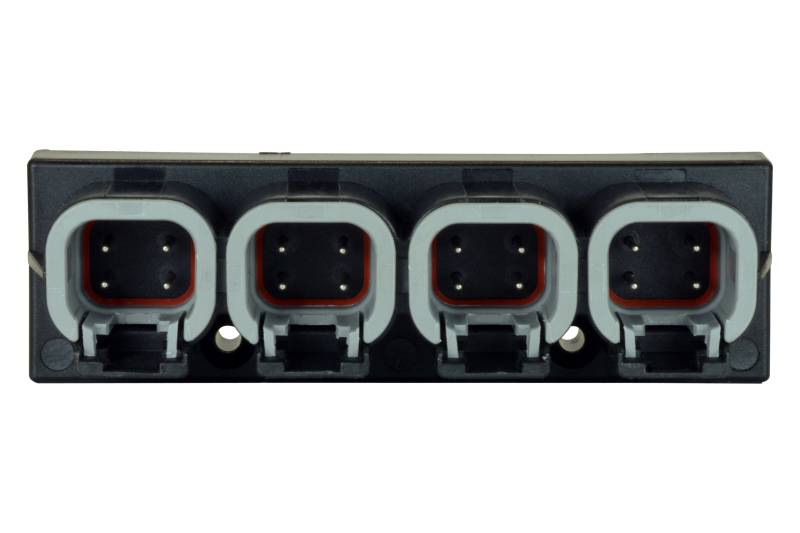

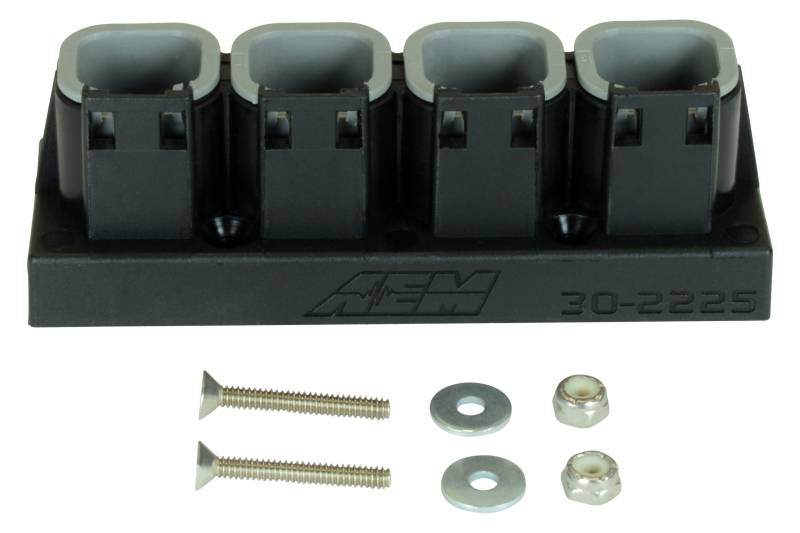

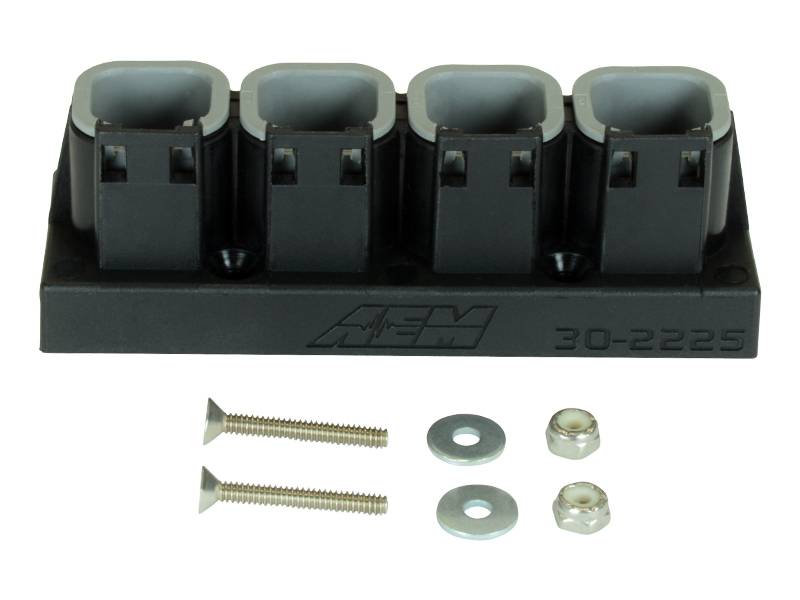

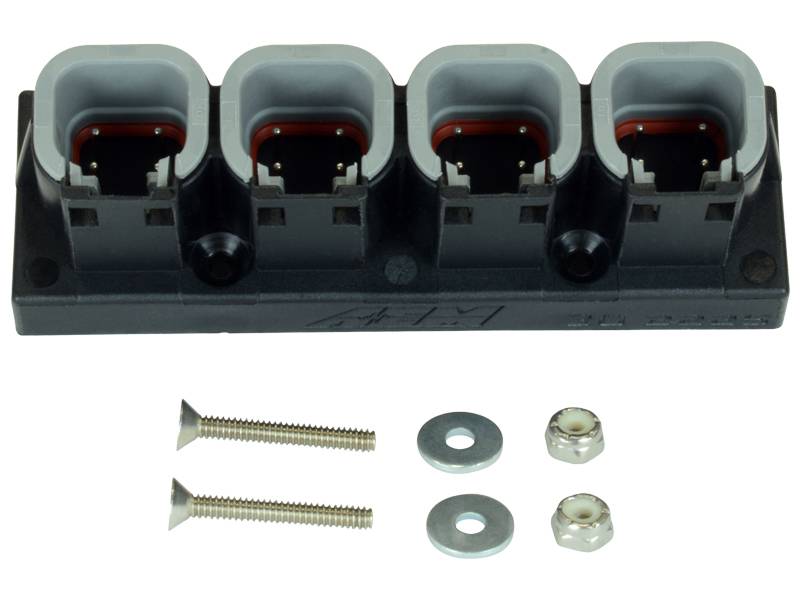

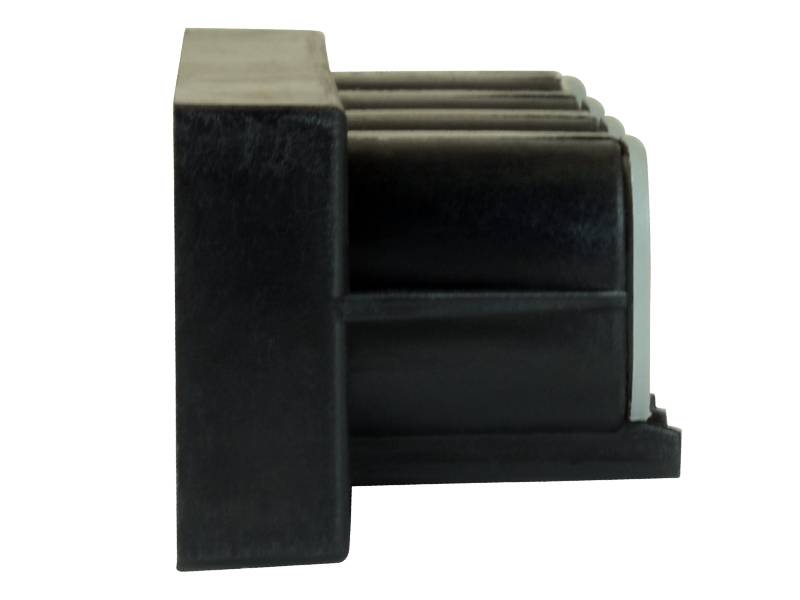

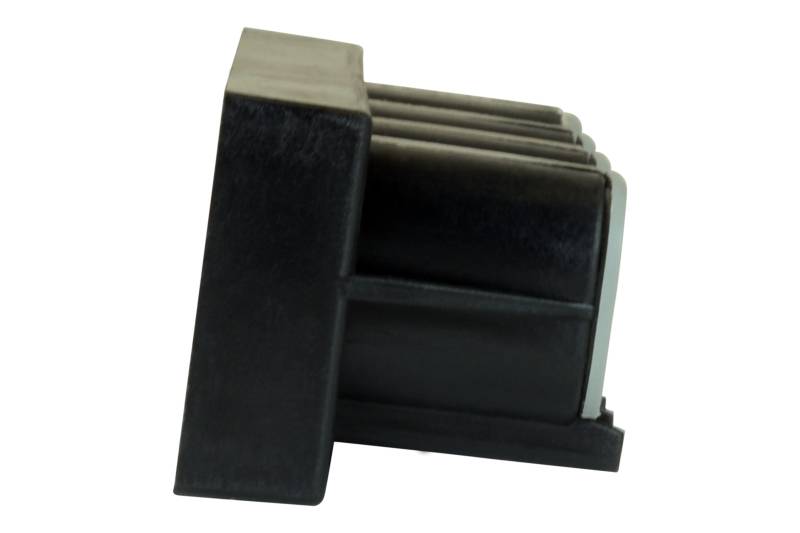

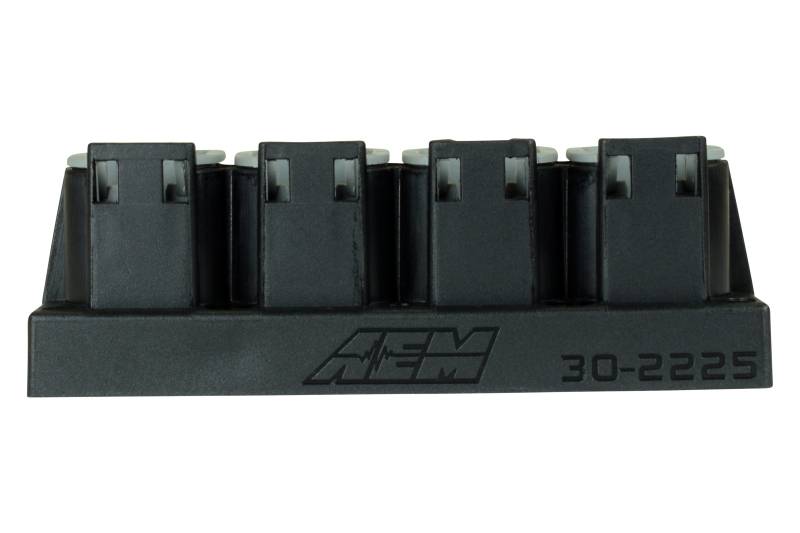

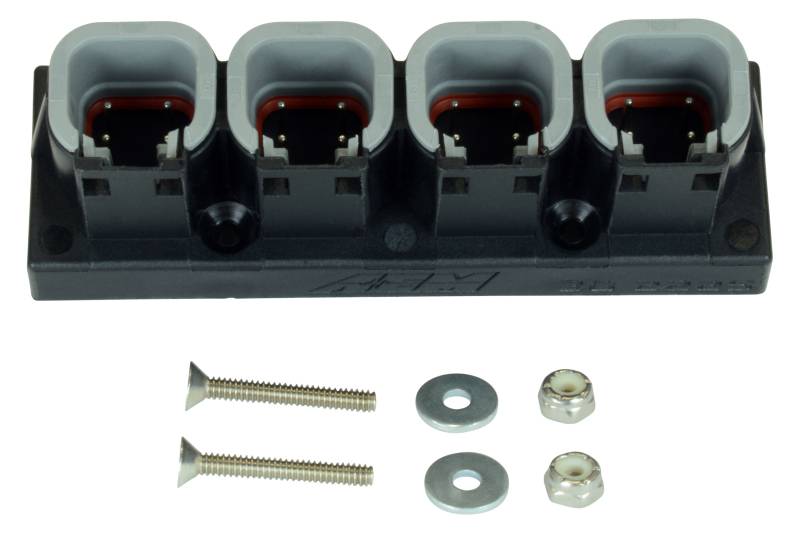

Features and Benefits: Compact enclosure - 3.45" (87.63mm) Long x 1.18" (29.85mm) Tall; Daisy chain two Hubs to connect six AEMnet Devices; Easily connect and power multiple AEMnet CAN devices from a central docking station!; Four integrated 4-way DTM-style housings provide reliable AEMnet CAN connections; Mounting hardware included (two 4-40 x 7/8" flat head screws, two 4-40 x 0.375" washers and two 4-4 x 9/64" Nylock nuts); Safe for engine bay mounting - IP67-rated enclosure

10% OFF Installation

Save 10% off installation if you're a local to Las Vegas, NV by visiting our local shop, Eurotek Tuning. Call 888-967-5634 to make an appointment today.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 0.2 lbs.
  • W4.4000” x H3.4000” x L4.8000”
