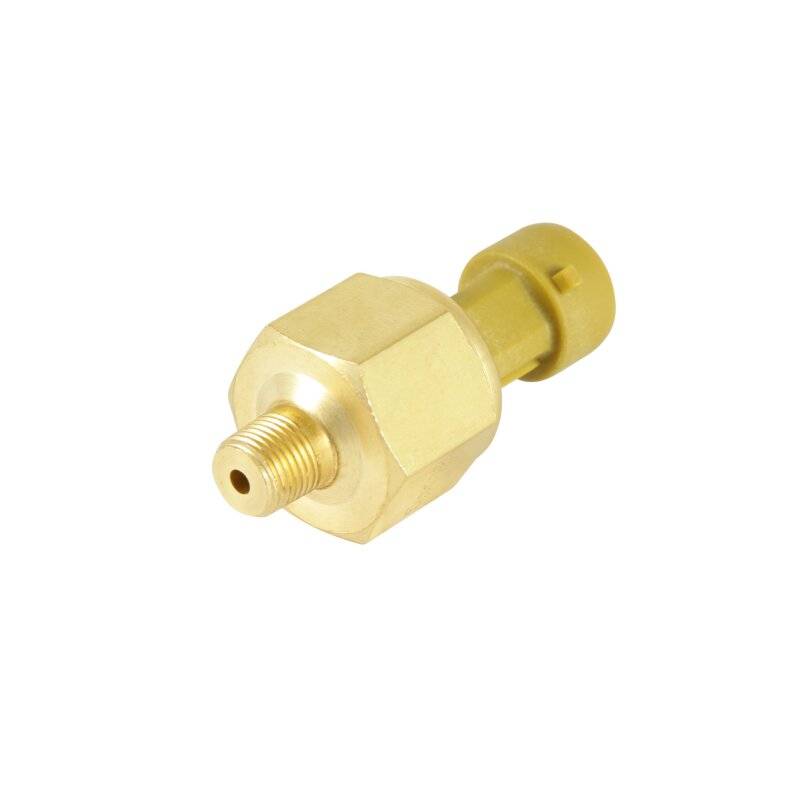

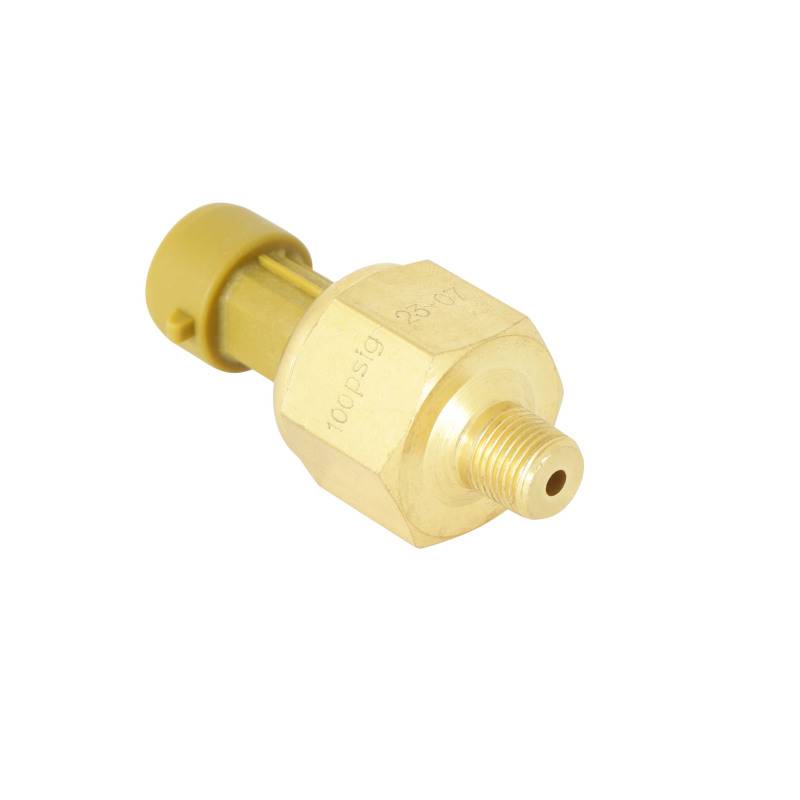

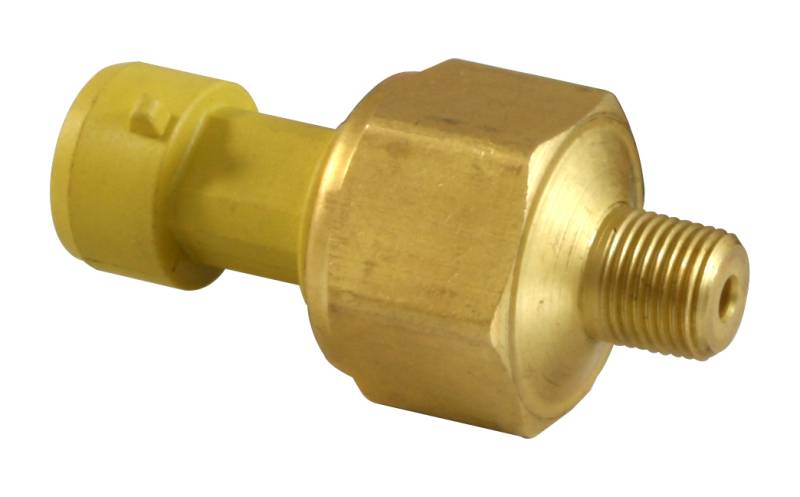

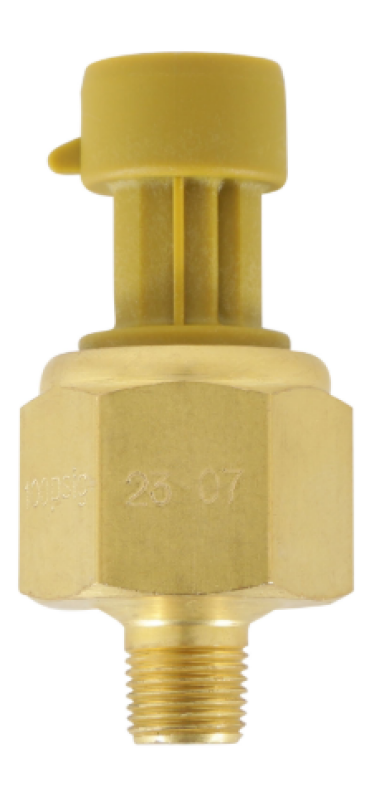

AEM 30-2131-100 AEM 6.5 BAR MAP or 100 PSIA Brass Sensor Kit & Flying Lead

Manifold Absolute Pressure Sensor

(0) Reviews: Write first review
30-2131-100
Availability:
Pricing: $80.42

Qty:

Description

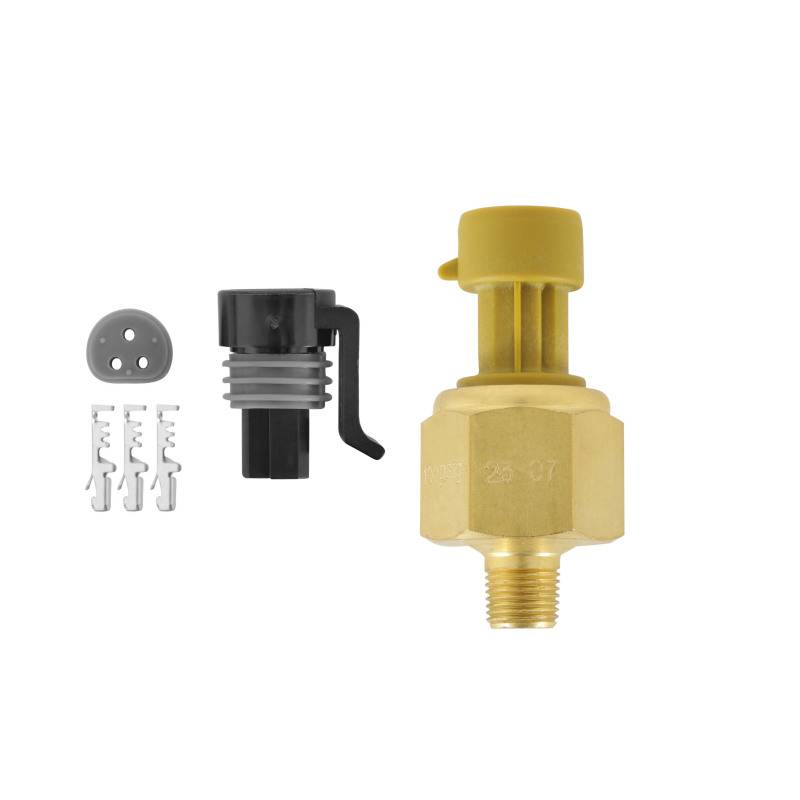

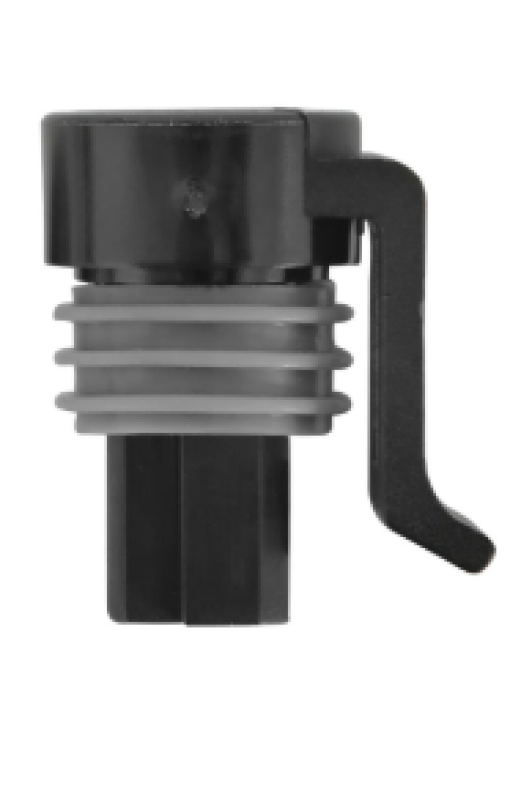

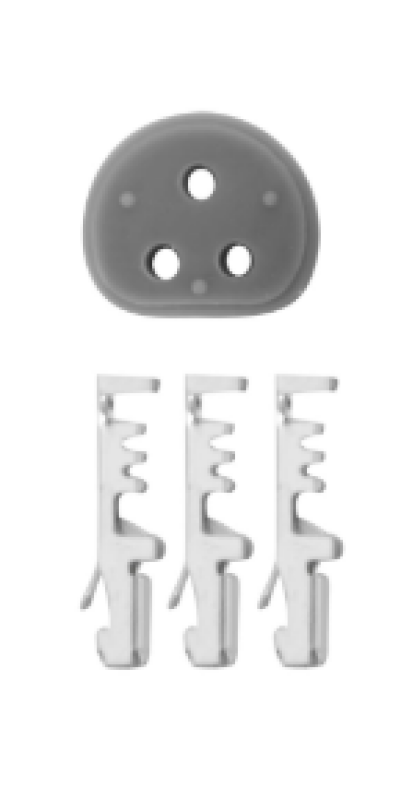

100 PSIg Brass Sensor Kit, Brass Sensor Body, 1/8-inch NPT Male Thread, Includes 100 PSIg Brass Sensor, Connector and Pins; 1/8 in. NPT Male Thread

AEM 100 PSIg Brass Sensor Kit

100 PSIg Brass Sensor Kit. Brass Sensor Body. 1/8 in NPT Male Thread. Includes: 100 PSIg Brass Sensor, Connector & Pins; AEM 100 PSIg Brass Sensor Kit. Brass Sensor Body. 1/8" NPT Male Thread. Includes: 100 PSIg Brass Sensor, Connector & Pins; AEM offers brass PSIg sensors in 15, 100 and 150. Gauge style pressure sensors reference pressure above atmospheric pressure. When exposed to atmospheric pressure, gauge style pressure sensors will read 0 psig. Gauge style pressure sensors are commonly used for oil pressure, fuel pressure, brake pressure, nitrous pressure etc.; Brass Gauge style (PSIg) Pressure Sensors; Brass Pressure Sensor = Ruler; Example: Brass Pressure Sensor used for a Boost Gauge - Reference/Information for knowing manifold pressure, not for ECU calibration.; Example: MAP Sensor information for the ECU - Calibration/crucial information for the ECU.; Stainless Steel Pressure Sensor = Caliper; There are many different tools that can be used for measurement, but the degree of accuracy is dependent upon the tool. For example, a ruler can measure distance with a good degree of accuracy, but for a more precise measurement a caliper should be used. The difference between a brass pressure sensor and a stainless steel pressure sensor is similar if we think about it in these terms:; Use a Brass Pressure Gauge Sensor where you need a good reference to what pressure is being seen.; Use a SS Pressure Sensor where you need exact details of the pressure.; Which Pressure Sensor is right for you?

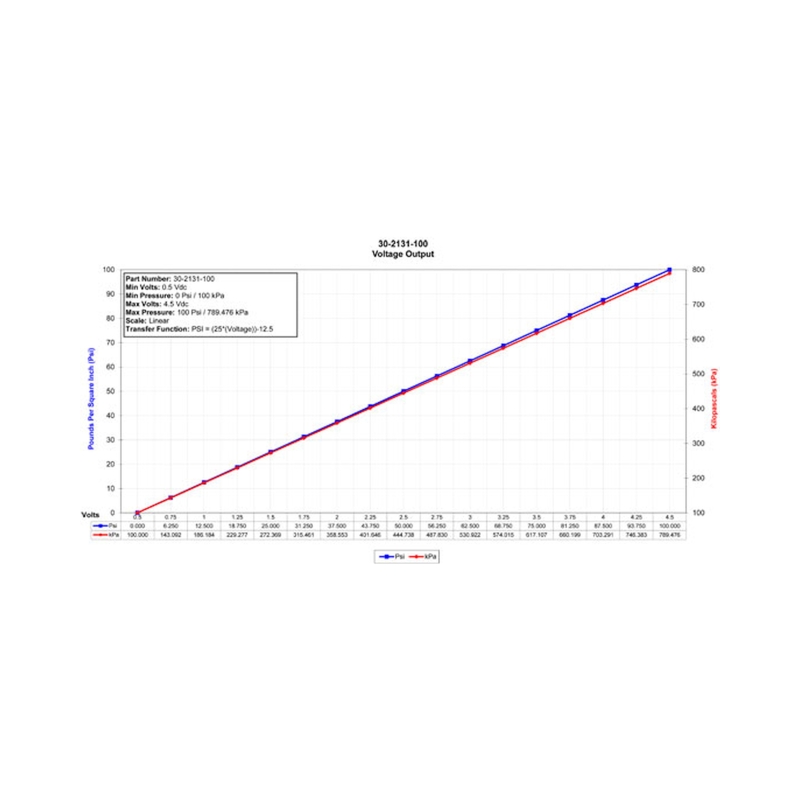

Features and Benefits: Analog data scaled across full 100 PSI; Brass sensors accurate to within 3% of full scale (pressure sensors); Connector and pins included; High-quality sealed sensor housings are virtually impervious to automotive fluids (360-degree welded wetted area)

10% OFF Installation

Save 10% off installation if you're a local to Las Vegas, NV by visiting our local shop, Eurotek Tuning. Call 888-967-5634 to make an appointment today.

Details

  • 30-2131-100
  • 30-2131-100
  • 840879019969
  • AEM
  • Pyrometer
  • ECU Upgrades
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 0.2 lbs.
  • W3.2000” x H2.3000” x L3.7000”
