AEM 30-2010 AEM Inlet Air Temperature Sensor Kit for EMS

Air Charge Temperature Sensor

(0) Reviews: Write first review
30-2010
Availability:
Pricing: $65.30

Qty:

Description

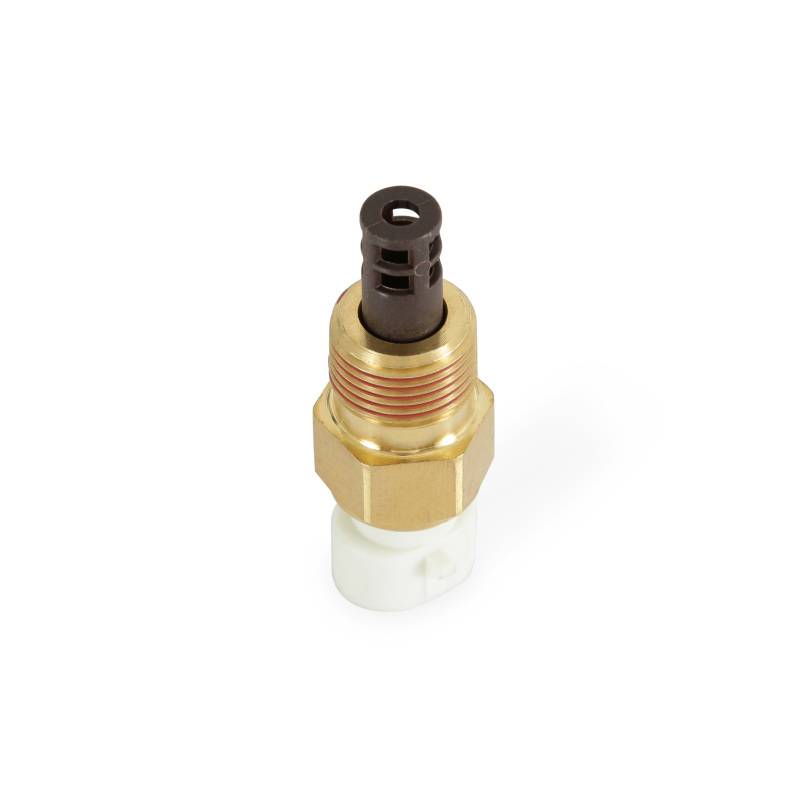

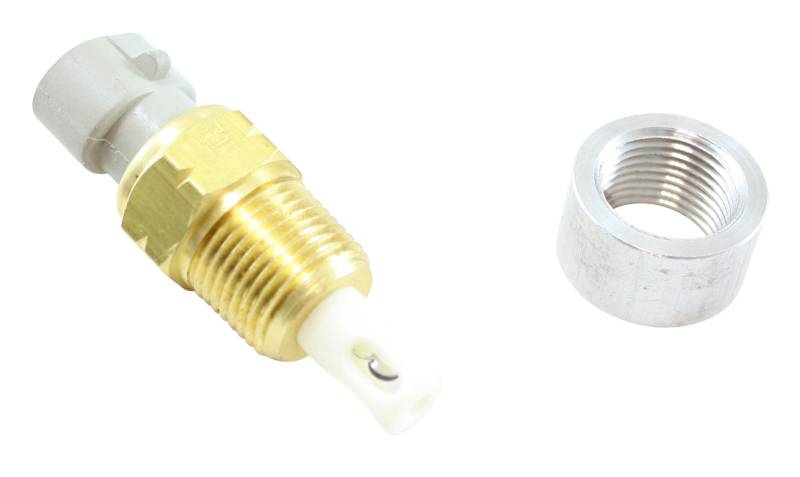

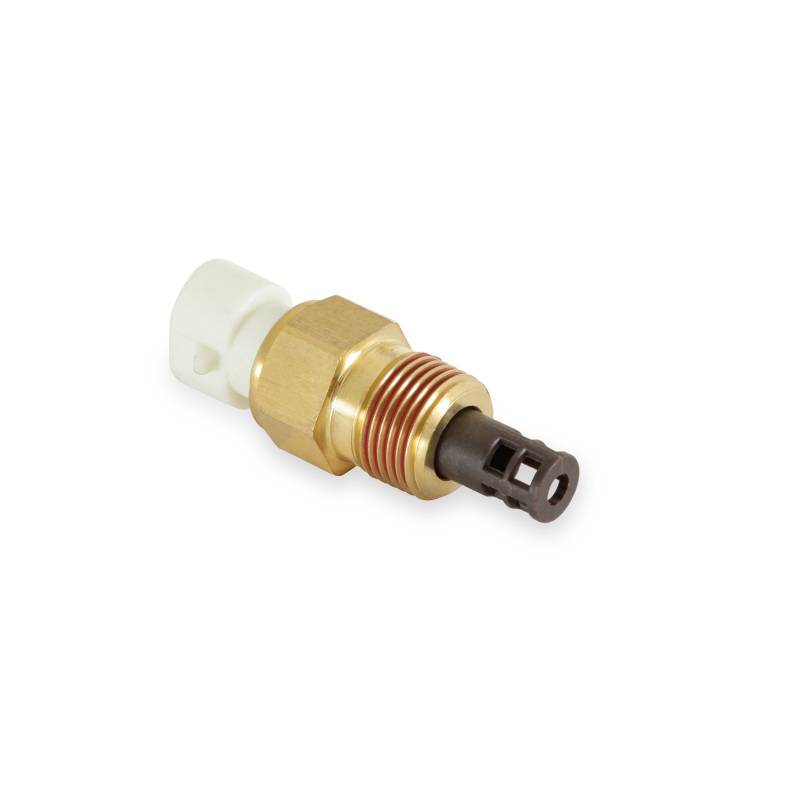

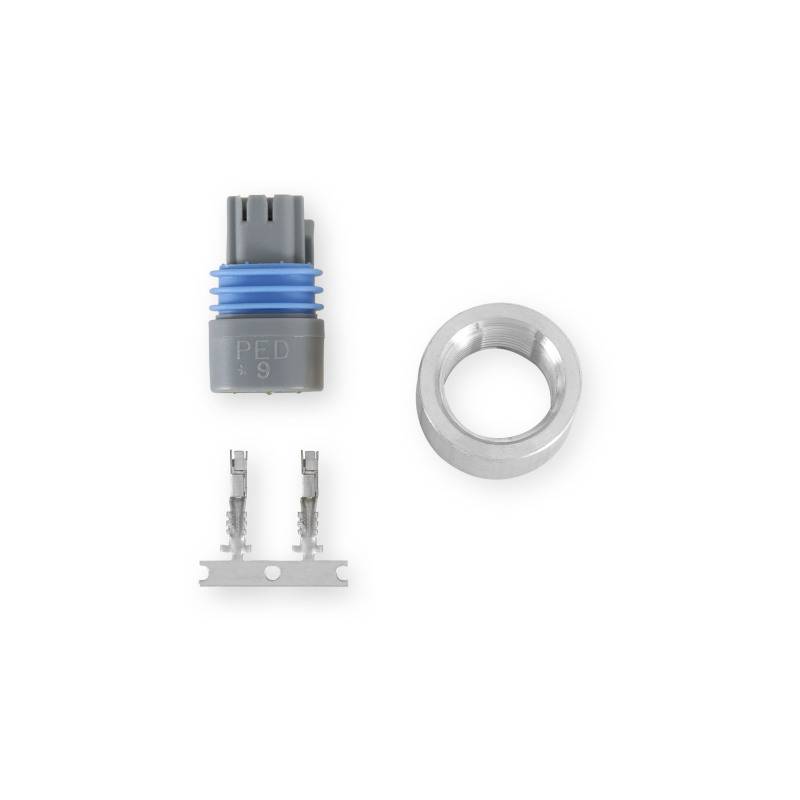

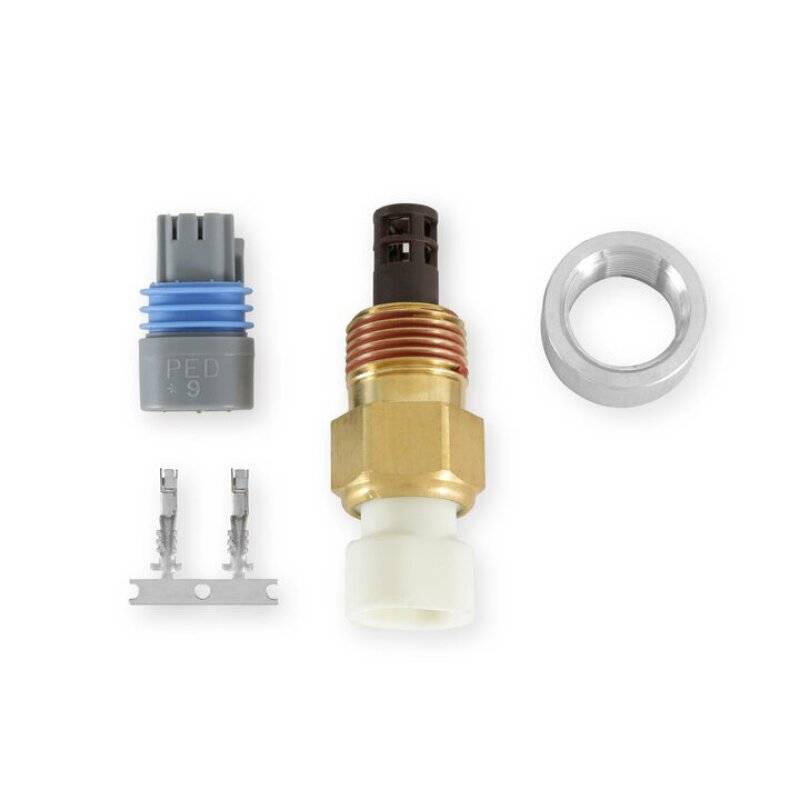

-20C to 150C / -4F to 302F - 3/8" NPT - Connector Kit and Pins; Air Temp Sensor Kit, 3/8-inch NPT, Includes Air Temp Sensor, 3/8-inch NPT Aluminum Bung, Connector and Pins

AEM Air Temp Sensor Kit

30-2010 - Air Temp Sensor Kit; Accuracy: < 1.5C / 2.7F; AEM's Air Inlet Temperature Sensor Kits (AIT) senses the air temperature on the inlet side of the engine.; Air Temp Sensor Kit. 3/8 inNPT. Includes: Air Temp Sensor, 3/8 inNPT Aluminum Bung, Connector & Pins; Air Temp Sensor Kit. 3/8"NPT. Includes: Air Temp Sensor, 3/8"NPT Aluminum Bung, Connector & Pins; Electrical Termination: Weatherproof connector. Includes Mating Connector, Pins & Wire Seals; Hex Size: 3/4"; Includes: Air Temp Sensor, 3/8" NPT Alumium Bung, Mating Connector, Pins & Wire Seals; Installation Torque: 20Nm / 15 ft-lbs; Operating Temp: -40C to 135C / -40F to 275F; Resistive Range (?): See Table; Sensor Body Material: Brass; Thermal Time Constant: < 15 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil; Thread: 3/8" NPT; Weight: 33.3g

Features and Benefits: Connector and pins included; Senses the air temperature on the inlet side of the engine; Temp scale of -20C to 150C / -4F to 302F; Weatherproof connector

10% OFF Installation

Save 10% off installation if you're a local to Las Vegas, NV by visiting our local shop, Eurotek Tuning. Call 888-967-5634 to make an appointment today.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 0.2 lbs.
  • W3.2000” x H2.3000” x L4.7000”
