AEM 30-0305 AEM X-Series EGT 0-1800F Gauge

0-1800F/0-1000C - Black Bezel and Black Faceplate; X-Series EGT Gauge 0-1800F - 0-1000C, Black Bezel and Black Faceplate

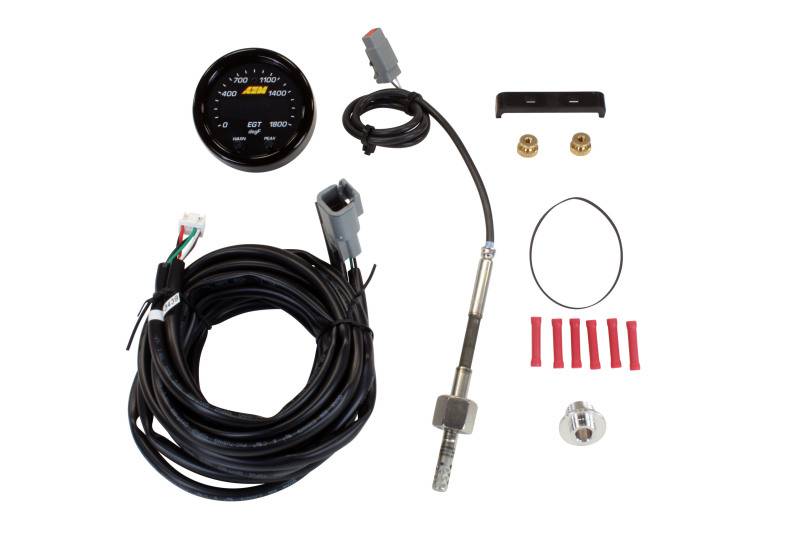

AEM X-Series EGT Gauge Kit

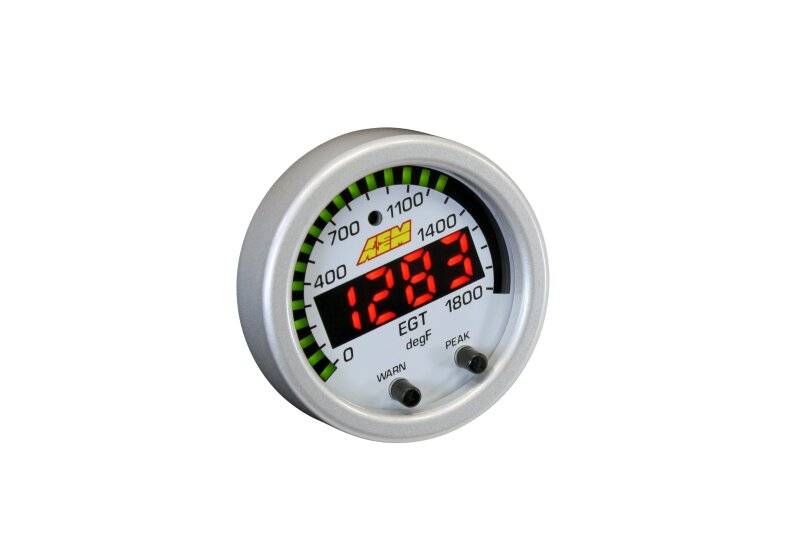

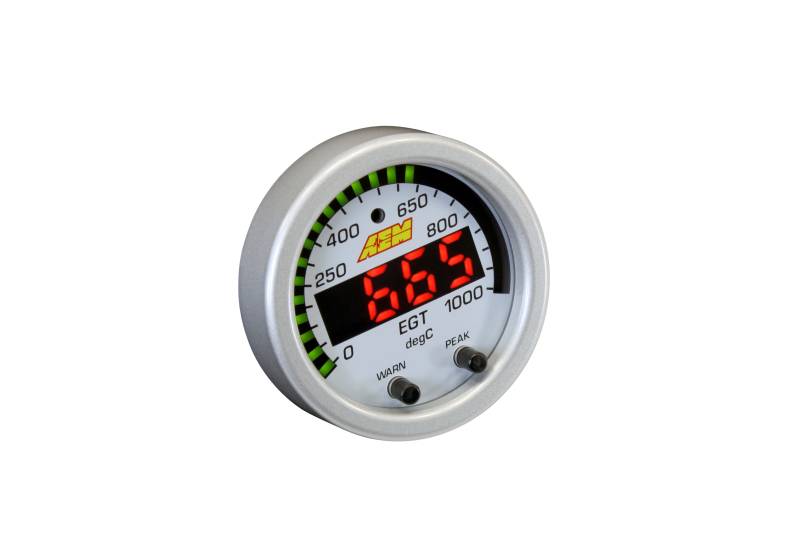

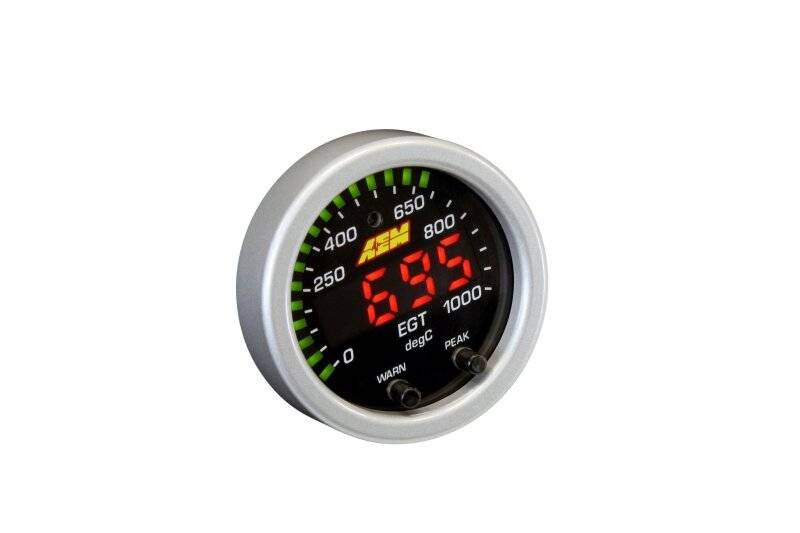

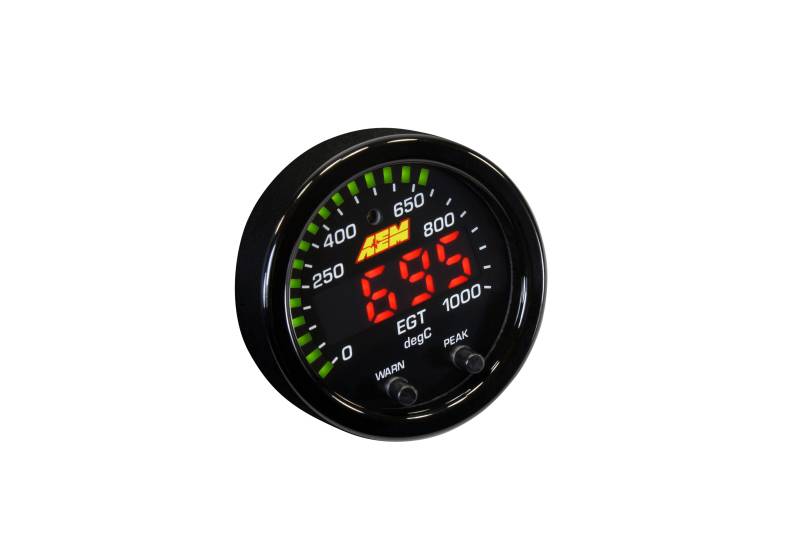

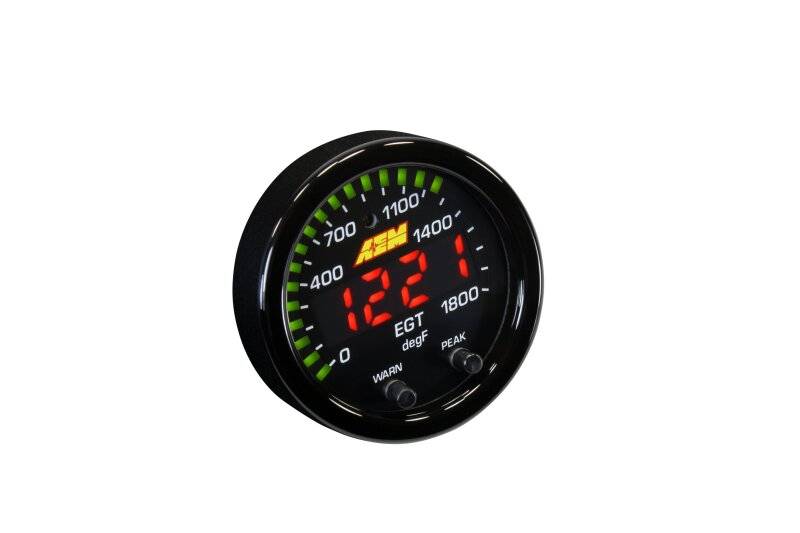

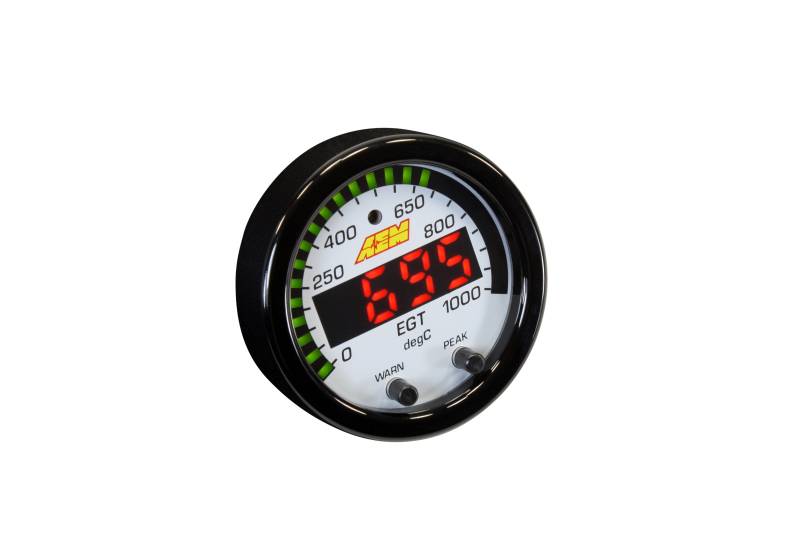

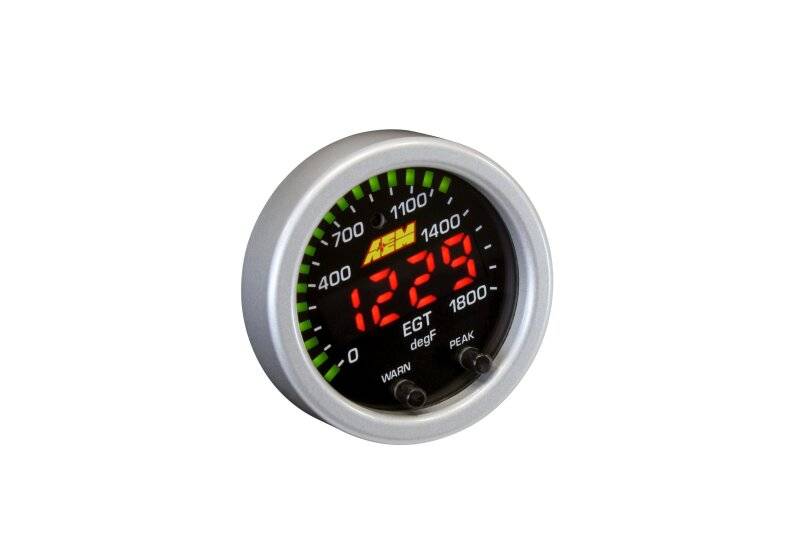

AEM's 30-0305 X-Series 0-1800F/0-1000C Digital Exhaust Gas Temperature (EGT) gauge combines incredible looks, increased readability and a multitude of new, easy-to-use features! It is a must for users who want a highly accurate EGT readout in their high performance vehicle.; Despite the larger display, X-Series Gauges are contained in a standard 2-1/16th-inch (52mm) diameter housing for mounting in a standard gauge pod. Thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825", with a cup depth of only 0.200." This shallow cup depth allows X-Series Digital Gauges to be mounted practically anywhere.; EASIER TO MOUNT; EASIER TO READ; NOTE: The 30-0305 comes with a black bezel and reversible Fahrenheit/Celsius black EGT faceplate. You will need to purchase the optional 30-0305-ACC accessory kit to get the silver bezel and reversible white EGT faceplate. The calibration for standard or metric display is easily performed using the buttons on the face of the gauge.; SMARTER INTERFACE; Visual improvements include a bright center LED display that is 87% larger than our original digital gauges and provides better readability. A sweeping green LED "needle" lines the edge of the gauge face for quick reference. A 33% overall increase in the gauge face display makes it easier to see at a glance.; X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall, standard or metric center LED readout and sweeping LED needle, and user-selectable threshold warnings. The gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems.; X-Series EGT Gauge 0-1800F / 0-1000C. Black Bezel & Black Faceplate

Features and Benefits: 0-5v analog outputs for transmitting data to EMS or Data Logger; 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods; 24 green outer LEDs for quick reference to engine parameter; AEMnet CANbus-enabled for transmitting data to EMS or Data Logger; Auto dimming sensor delivers ideal display brightness; Optional silver bezel and white faceplate accessory kit available (sold separately); Peak/Recall via gauge face buttons; Positive locking connectors provide secure connection; Programmable center LED is 87% larger than original AEM gauges; Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!; User selectable threshold warnings; User selectable threshold warnings (excl. Volts)
