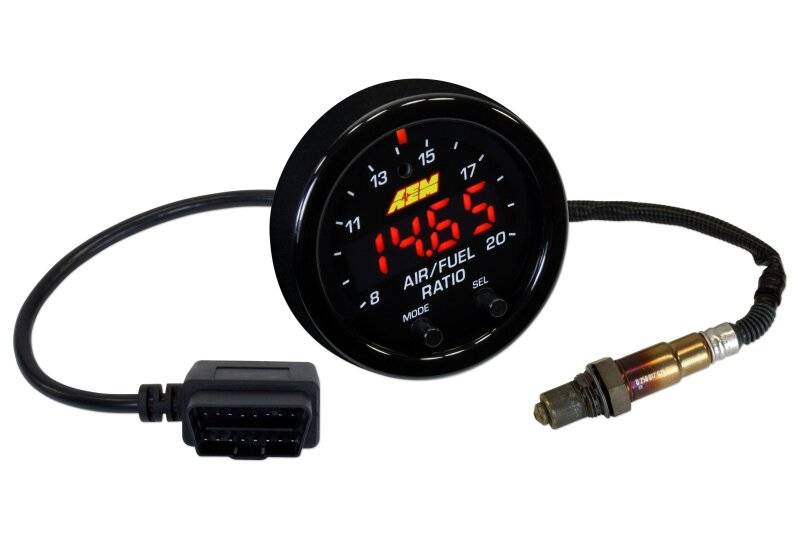

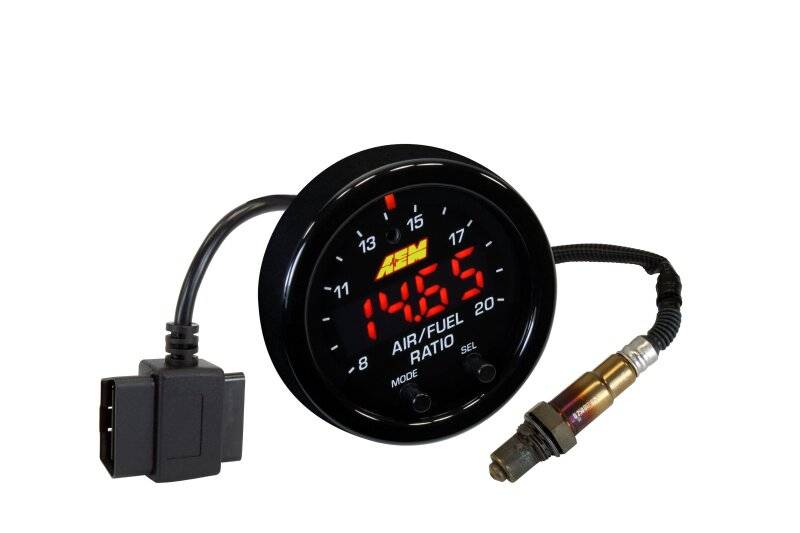

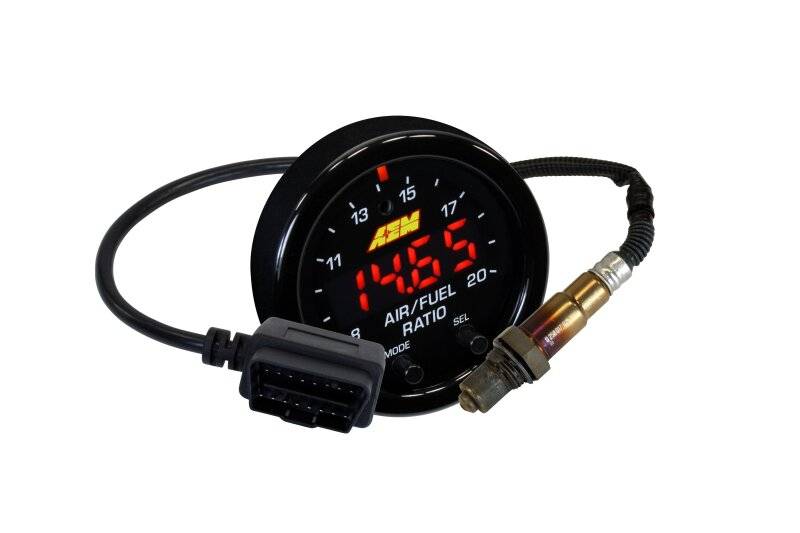

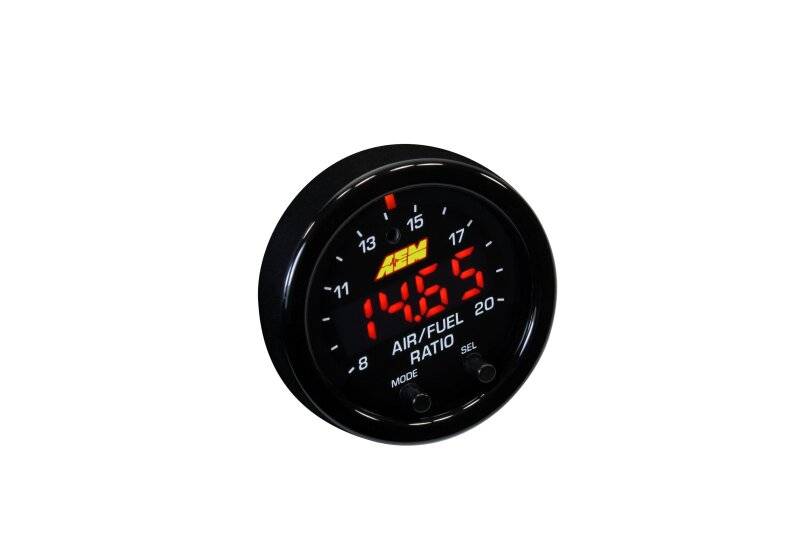

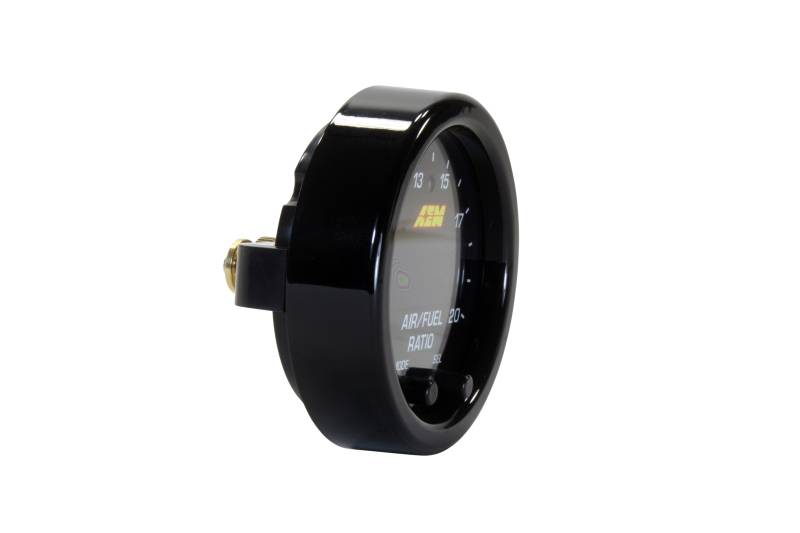

AEM 30-0334 AEM X-Series OBDII Wideband UEGO AFR Sensor Controller Gauge

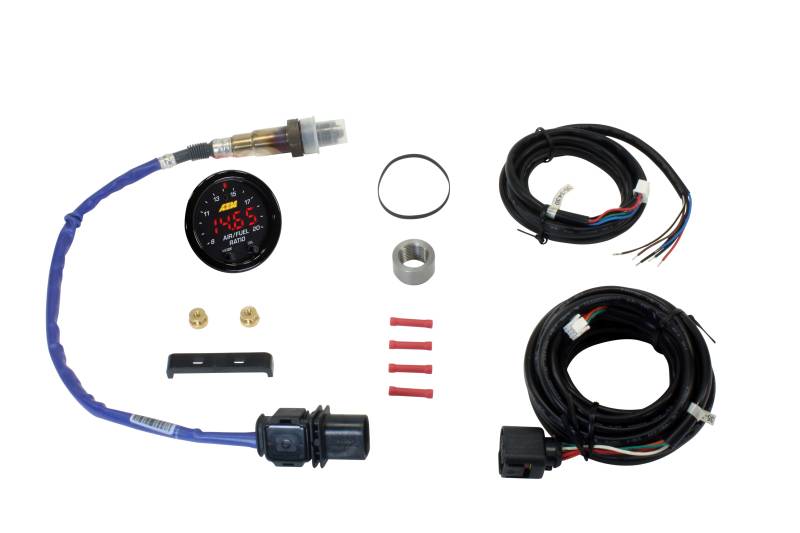

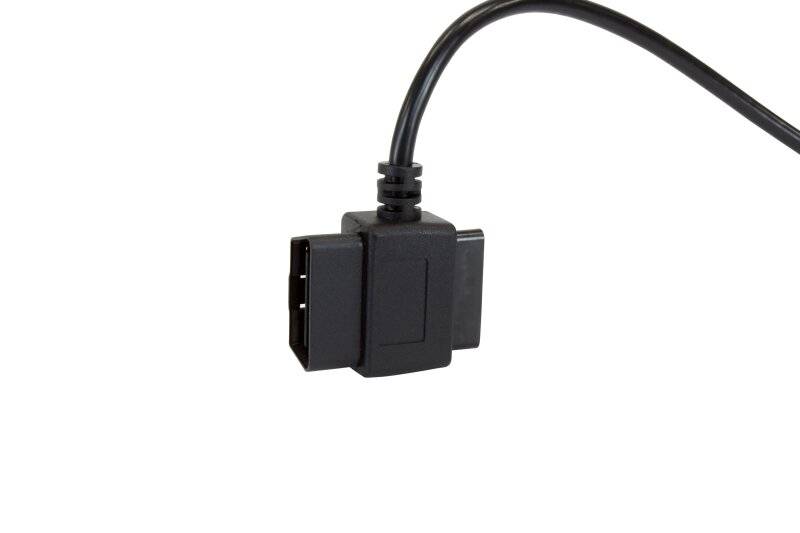

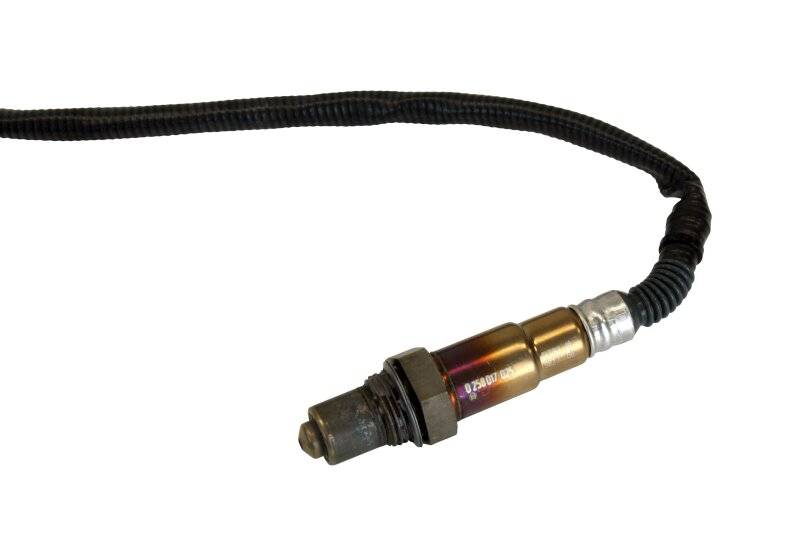

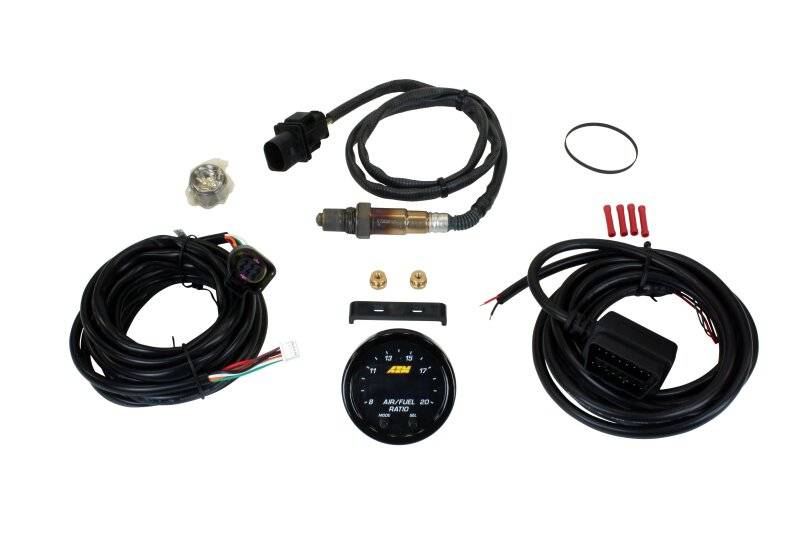

OBDII Wideband Gauge for 08+ Vehicles; X-Series Wideband UEGO AFR Sensor Controller Gauge with OBDII Connectivity. Includes: X-Series Wideband Controller Gauge, Bosch LSU 4.9 Sensor, Wiring Harnesses, Black Bezel, Black AFR/Lambda Faceplate, OBD2 Cable & O2 Sensor Bung

Accurate AFR data is critical when tuning an engine. Running rich (very low air/fuel ratio, excessive fuel) can cause a loss in power, while running too lean (very high air/fuel ratio, not enough fuel) may result in serious engine damage. Using a wideband air/fuel controller during the tuning process allows you to monitor AFR and adjust tuning parameters to optimize them for maximum power and efficiency. AEM has a comprehensive line of highly accurate, reliable wideband air/fuel controllers that; AEM X-Series OBDII Wideband AFR Gauge Kit; X-Series AFR Gauge. Validated to work w/ EFILive, HPTuners and DashDaq software

Additional wiring for a 0-5v or RS232 Serial output can be added by the user for outputting to a data logger. This OBDII pass-through capability replaces the traditional AEMnet stream available in the 30-0300 X-Series Wideband AFR Gauge Controller.OBDII CAN-bus OUTPUTThe OBDII output simulates an auxiliary ECU signal when plugged into a vehicle's OBD port, which requires a unique address from the other ECUs already on a vehicle's network.; AEM's default OBDII CAN address will work with most popular vehicles and adjustments should not be necessary. However, AEM has provided OBDII address programmability through the buttons on the gauge face if a different address other than the default address is required, allowing users to program ECU #, Parameter Identification (PID), Message Identifier, and Bit Rate.; AEM's X-Series OBDII Wideband UEGO AFR Sensor Controller Gauge (PN 30-0334) provides tuners who are using piggyback tuning modules or open source software with the ability to view AFR through the factory CAN-bus stream that is output by the factory ECU, and deliver the most accurate, safe and powerful tune.; PATENTED X-DIGITAL TECHNOLOGY - It's The FastestX-Series Widebands are the fastest responding wideband air/fuel ratio controllers in independent testing against 17 other wideband UEGO air/fuel controllers.* The controller's high speed, patented, X-Digital technology (Patent 9,575,030) ensures no loss of signal fidelity and full transient response, making it able to identify the slightest fluctuations in AFR and output them in full value.; The 30-0334 X-Series OBDII Wideband Gauge is validated to work with DiabloSport in Tune 3, Trinity 2, EFILive, HPTuners and DashDaq software.The X-Series Wideband AFR OBDII Gauge includes an OBDII pass-through connector and 4.9LSU sensor that can be free-air calibrated or used with the factory resistor calibration.; WHY RESPONSE TIME MATTERS - Faster response time improves wideband feedback control, and can provide a safer, more powerful and accurate tune. AEM's Wideband Controllers with X-Digital technology reduce deadtime and can improve the performance of your vehicle through more accurate AFR tuning.

Features and Benefits: 0-5V & RS232 output for data logging and feedback control, AEMnet (CANbus) for data logging and daisy-chaining multiple controllers up to 16 cylinders; 52mm gauge diameter and slim 0.825" gauge depth; Auto dimming feature; Black bezel and black dual faced faceplate included (gauge only, silver bezel/white gauge option sold separately, PN 30-0300-ACC); Can display AFR values in hundredths of %; Compatible with vehicle/system voltages up to 16V; Factory calibrated resistor does not require free-air calibration, but technology allows for free-air calibration as sensor ages if user desires; Gauge cup depth only .200" deep; Includes Bosch 4.9LSU wideband UEGO sensor; Locking connectors; OBD-II Output; CAN based compatible with 2008 or newer vehicles; Patented X-Digital wideband technology (Patent 9,575,030); User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, and 3- or 4-digit display; X-Series Wideband UEGO AFR Controllers Gauge were fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitors wideband AFR controllers

0-5V Output E85 values from 5.7:1 to 12.0:1 AFR (Requires Wiring); 0-5V Output Ethanol values from 5.2:1 to 11.0:1 AFR (Requires Wiring); 0-5V Output Gasoline values from 8.5:1 to 18.0:1 AFR (Requires Wiring); 0-5V Output Lambda values from .58 to 1.23 (Requires Wiring); 0-5V Output Methanol values from 3.75:1 to 8.0:1 AFR (Requires Wiring); Accurate AFR data is critical when tuning an engine. Running rich (very low air/fuel ratio, excessive fuel) can cause a loss in power, while running too lean (very high air/fuel ratio, not enough fuel) may result in serious engine damage. Using a wideband air/fuel controller during the tuning process allows you to monitor AFR and adjust tuning parameters to optimize them for maximum power and efficiency. AEM has a comprehensive line of highly accurate, reliable wideband air/fuel controllers that can help ensure your vehicle is optimally tuned.; AEM's Wideband UEGO (Universal Exhaust Gas Oxygen, pronounced "You-Way-Go") Controllers are powerful, cost effective tuning tools that allow users to accurately monitor the Air/Fuel Ratio (AFR) of their engine.; CAN I CHANGE THE AEM UEGO SENSOR'S CONNECTOR?; Display Gasoline values from 8.0:1 to 20.0:1 AFR; Display Lambda values from .55 to 2.00; FACTORY CALIBRATION RESISTOR OR FREE-AIR CAL, IT'S YOUR CHOICE!; * Independently tested at 360° Product Testing (results reported on August 31st, 2015) against 17 competitor wideband UEGO Air/Fuel Controllers. AEM X-Series Inline with 4.9LSU wideband sensor and AEM X-Series Wideband UEGO AFR Gauge with 4.9LSU sensor recorded the fastest response times.; No. There is a laser-etched, calibrated resistor in the sensor's connector body. This resistor is specifically created for the exact sensor that it is attached to. Modifying this will invalidate the sensor's output.; OBDII Output Gasoline values from 8.0:1 to 20.0:1 AFR; OBDII Output Lambda values from .55 to 2.00; WHAT IS A WIDEBAND UEGO AIR/FUEL CONTROLLER?; WHY USE A WIDEBAND AIR/FUEL CONTROLLER?; ** Wideband UEGO sensors are wear items and their lifespan is determined by many factors including contamination from leaded fuels, automotive fluids, particulates, mechanical or thermal shock and from being unheated and exposed to the exhaust stream. Free-air calibration may correct drift as a sensor ages, but it is recommended that they are replaced as part of your vehicle's maintenance program. When performing free-air calibration, please follow the procedure outlined in the instruction manual.; X-Series Wideband Gauges and the X-Series Inline Controller support the popular 4.9LSU sensor and can utilize both the factory calibration resistor and free-air calibration methods. This allows users to take advantage of the precise factory resistor calibration when a sensor is new, but then allows for free-air calibrations if the user desires when the sensor ages.** It's the perfect marriage of simplicity and accuracy.
