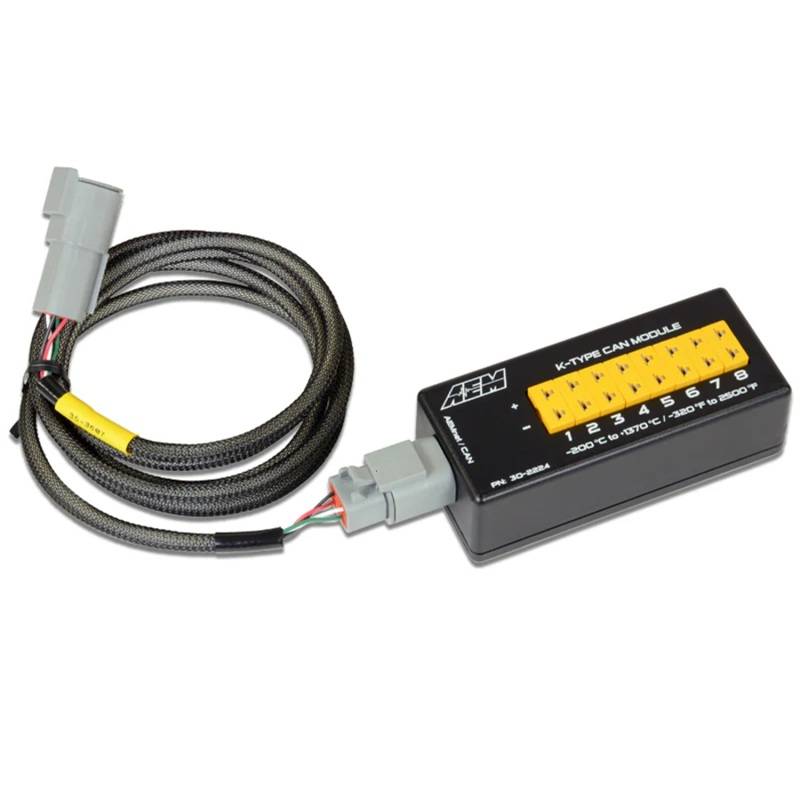

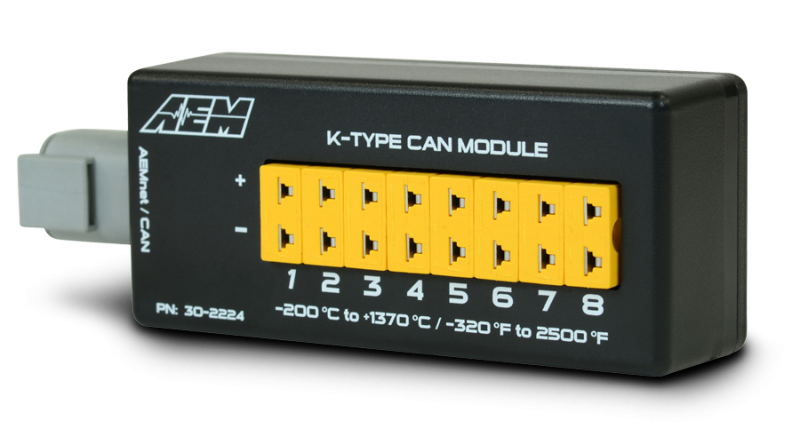

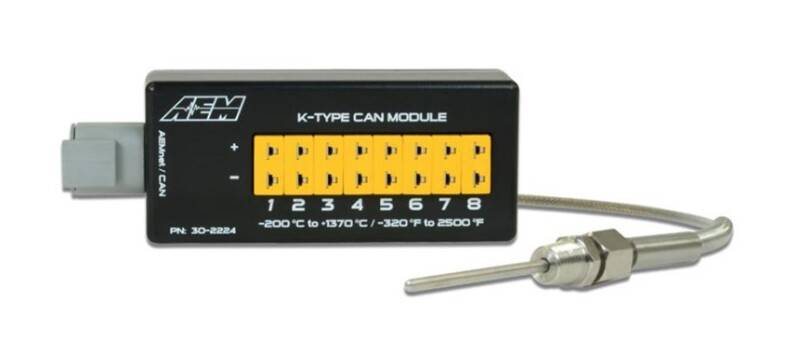

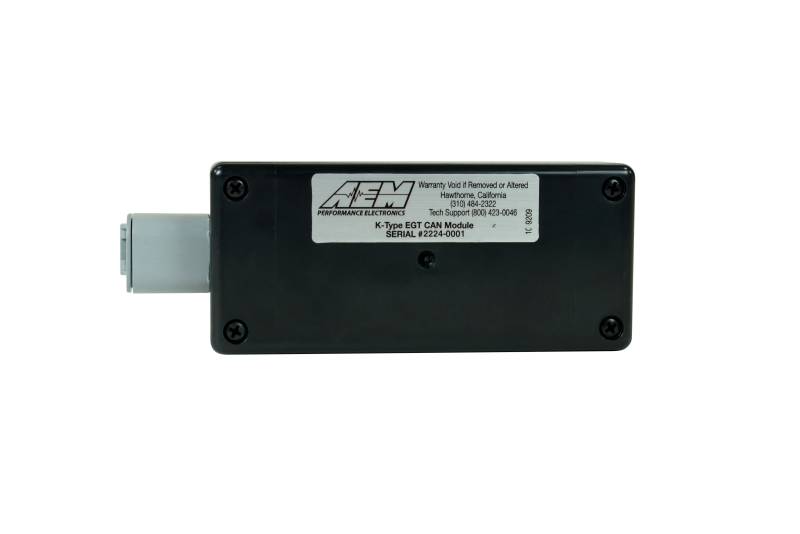

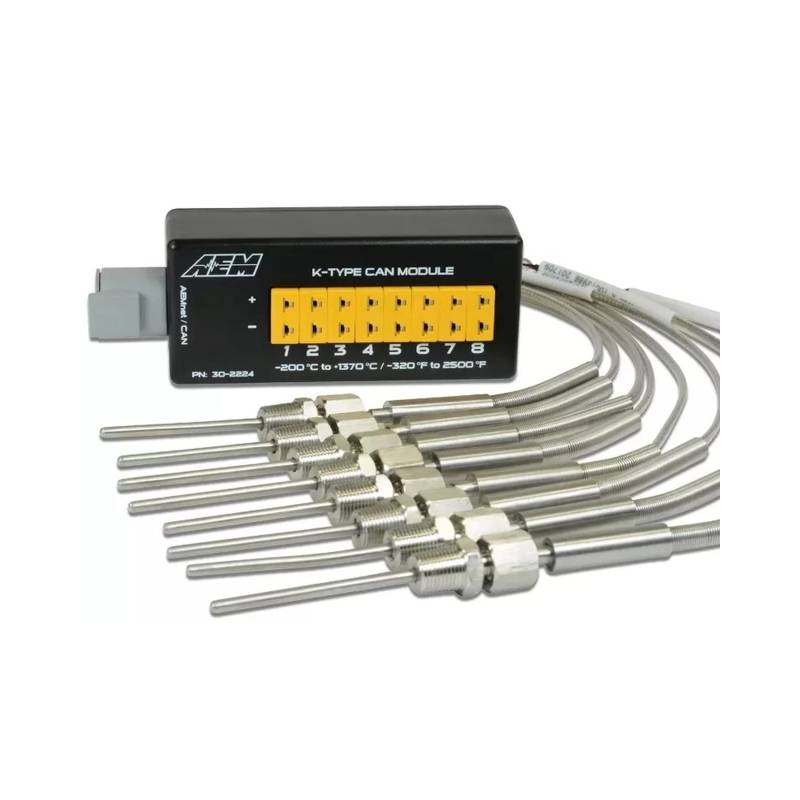

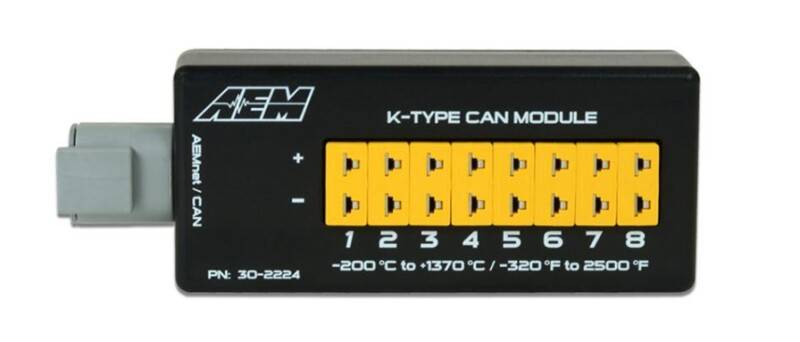

AEM 30-2224 AEM 8 Channel K-Type Thermocouple EGT CAN Module

Exhaust Gas Temperature (EGT) Sensor Kit

(0) Reviews: Write first review
30-2224
Availability:
Pricing: $448.95

Qty:
Free Shipping

Description

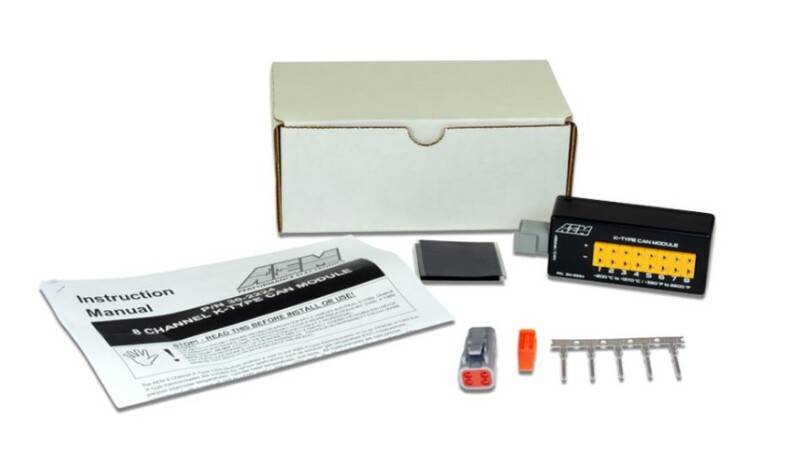

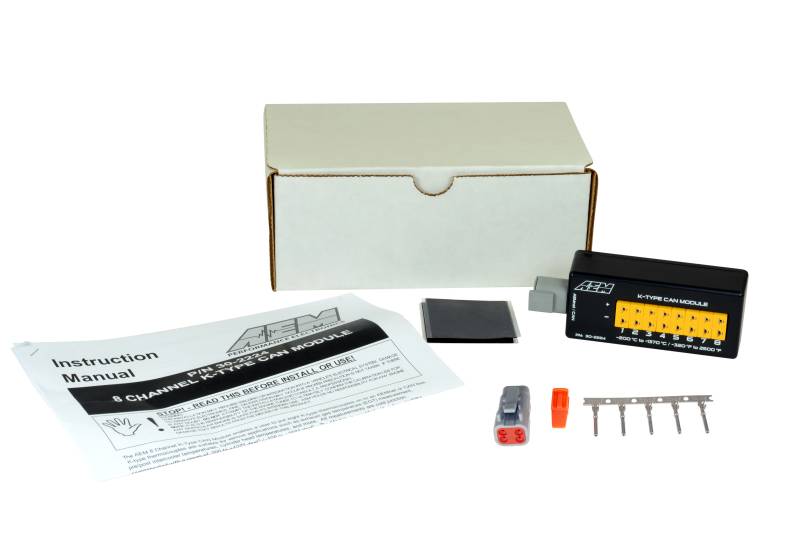

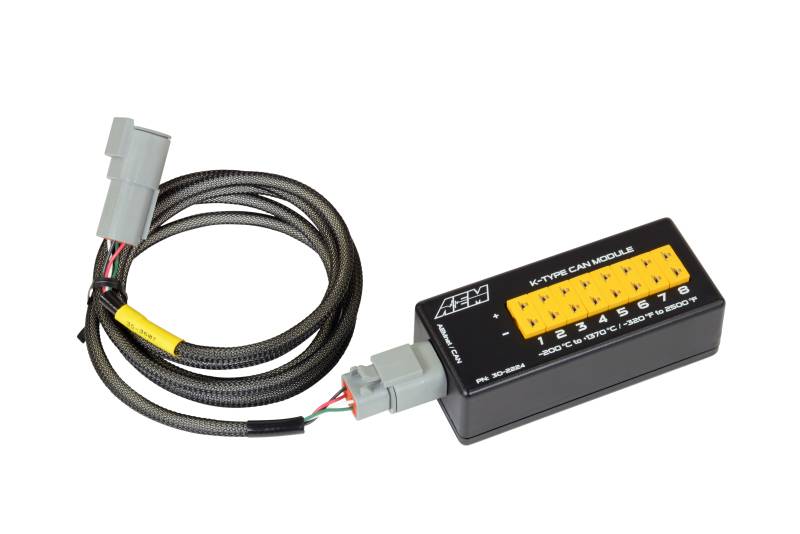

8-Channel K-Type Thermocouple EGT/Temperature Sensor Module with CANbus connectivity, includes CAN Module, DTM connector plug, Velcro tab for mounting and instructions.; K-Type EGT Sensors

8-Chan K-Type Thermocouple EGT/Temperature Sensor Module w/ CANbus connectivity; AEM 8 Channel CAN EGT Module

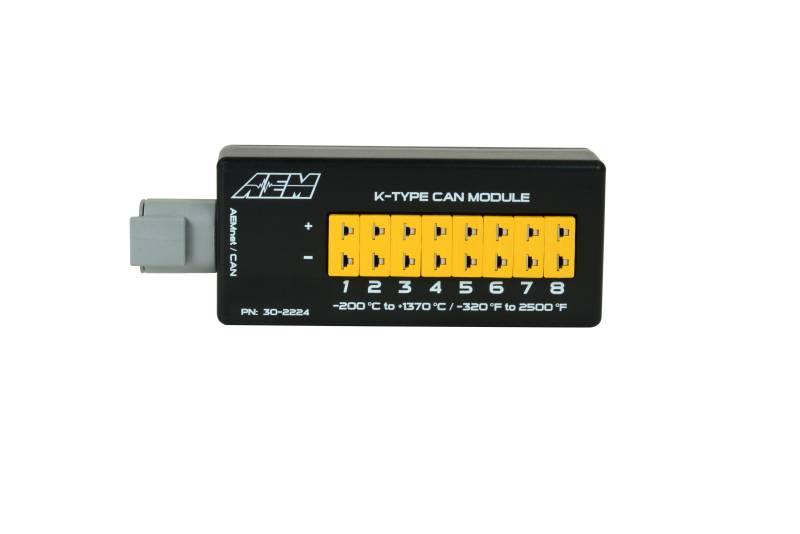

AEM Channel K-Type Thermocouple EGT/Temperature Sensor Module

Features and Benefits: Cold junction compensated for lab-grade accuracy (+/- 0.15% full scale); Daisy-chain two modules together for up to 16 temp inputs through a single plug!; Includes 8-Channel K-Type EGT CAN Module, 4-Pin DTM-style Connector Plug, instructions and Velcro for in-vehicle mounting; Includes 8 K-type thermocouple inputs to accept common K-type thermocouple sensors (sensors sold separately); Integrated open circuit/fault detection; Measures temperatures from -200 to 1372 degC (-328 to 2501 degF); Outputs all channels via configurable CAN bus via one-plug connection (DTM-style Connection Cables sold separately in various lengths); Pre-configured AEMnet CAN bus for plug & play connection to CD Digital Dashes, Infinity ECUs, and AQ-1 (not compatible with Series 2 ECU at this time); Temperature resolution 0.1 degC (0.18 degF); Uses common miniature thermocouple sockets

10% OFF Installation

Save 10% off installation if you're a local to Las Vegas, NV by visiting our local shop, Eurotek Tuning. Call 888-967-5634 to make an appointment today.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 0.4 lbs.
  • W3.4000” x H2.4000” x L7.6000”
  • Free Shipping
